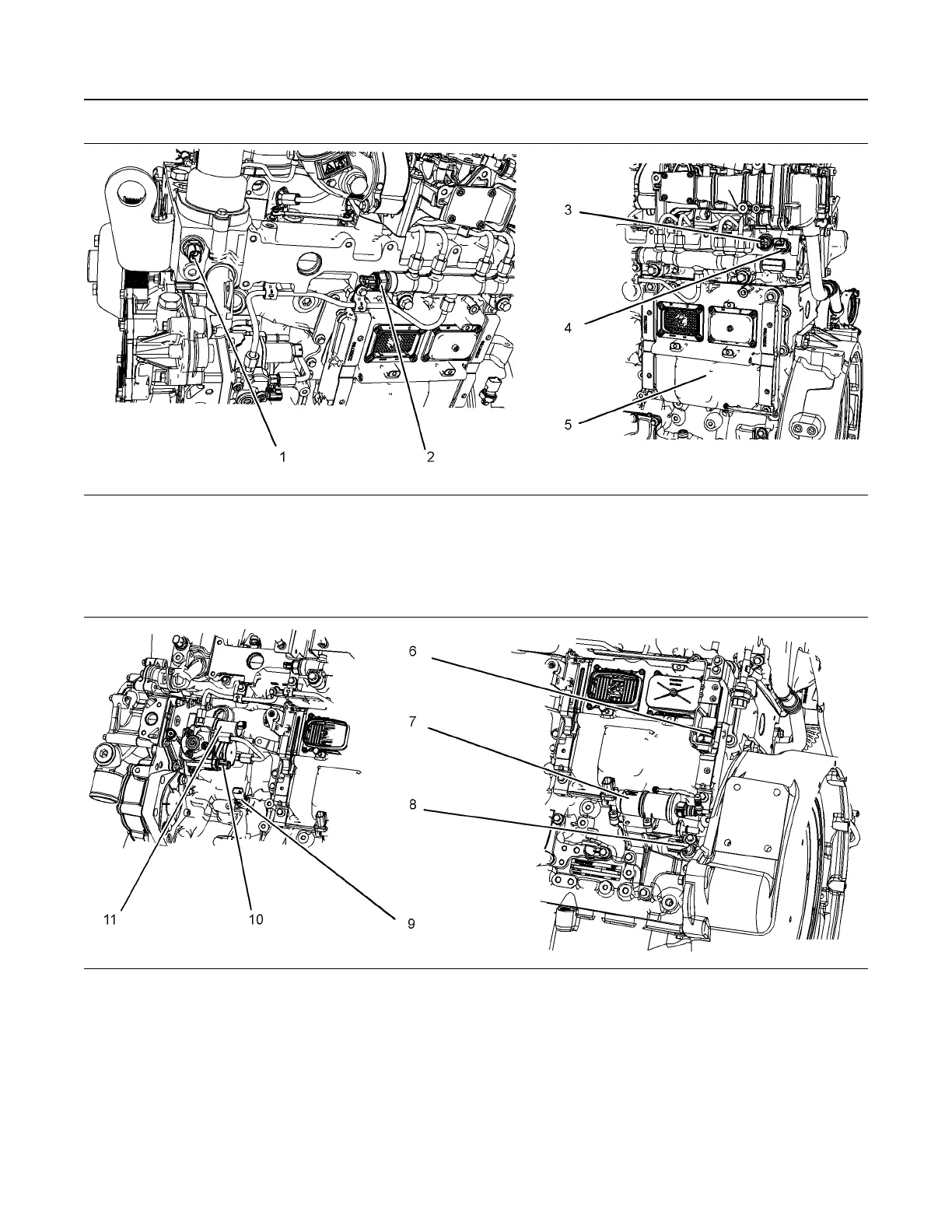

Illustration 42 g02413838
Typical example
(1) Coolant Temperature Sensor
(2) Fuel Pressure Sensor (Fuel Rail
Pressure Sensor)
(3) Intake Manifold Air Temperature Sensor
(4) Intake Manifold Pressure Sensor
(5) Electronic Control Module (ECM)
Illustration 43 g03420558
Typical example
(6) Atmospheric Pressure Sensor
(Barometric Pressure Sensor)
(7) Priming/ Transfer pump
(8) Primary Speed/Timing sensor
(Crankshaft Position Sensor)
(9) Oil Pressure Sensor
(10) Fuel Temperature Sensor
(11) Fuel Metering Solenoid for the High
Pressure Fuel Pump
