403EA-17 Engine

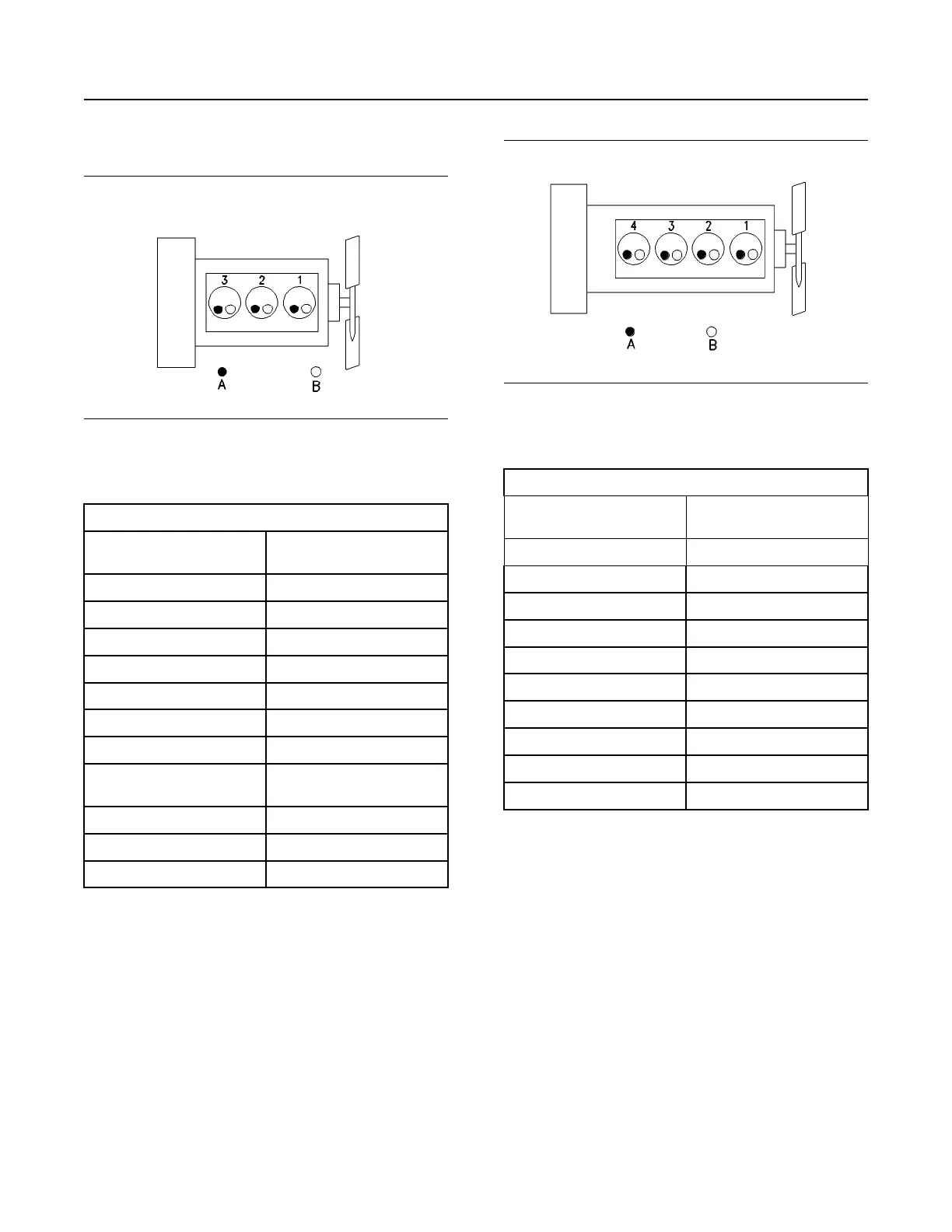

Illustration 25 g00852304
(A) Exhaust valves
(B) Inlet valves
Table 3
403EA-17 Engine Specifications
Maximum Operating Speed
(rpm)
2800 rpm
Cylinders and Arrangement In-Line 3 cylinder
Bore 84 mm (3.31 inch)
Stroke 100 mm (3.94 inch)
Displacement 1.663 L (101.5 in
3
)
Aspiration Naturally Aspirated
Compression Ratio
23:1
Firing Order
1-2-3
Rotation that is viewed from the
flywheel
Counterclockwise
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
Injection
Indirect
Four Cylinder Engine 404EA-22
The 404EA-22 industrial engines have the following
characteristics.
• In-line 4 cylinder
• 4 stroke cycle
• Two valves per cylinder
Illustration 26 g00296424
(A) Exhaust valves
(B) Inlet valves
Table 4
404EA-22 Industrial Engines
Maximum Operating Speed
(rpm)
2800 RPM
Cylinders and Arrangement In-Line four cylinder engine
Bore 84 mm (3.307 inch)
Stroke 100 mm (3.937 inch)
Displacement 2.216 L (135.2 cubic inch)
Compression Ratio 23.3: 1
Aspiration Naturally Aspirated
Valve Lash Setting (Inlet) 0.20 mm (0.008 inch)
Valve Lash Setting (Exhaust) 0.20 mm (0.008 inch)
Firing Order 1-3-4-2
Rotation (flywheel end) Counterclockwise
Four Cylinder Engine 404EA-22T
The 404EA-22T industrial engines have the following
characteristics.
• In-line 4 cylinder
• 4 stroke cycle
• Two valves per cylinder
28 M0132847
Product Information Section
Product Description
