Factory Installed Radiators

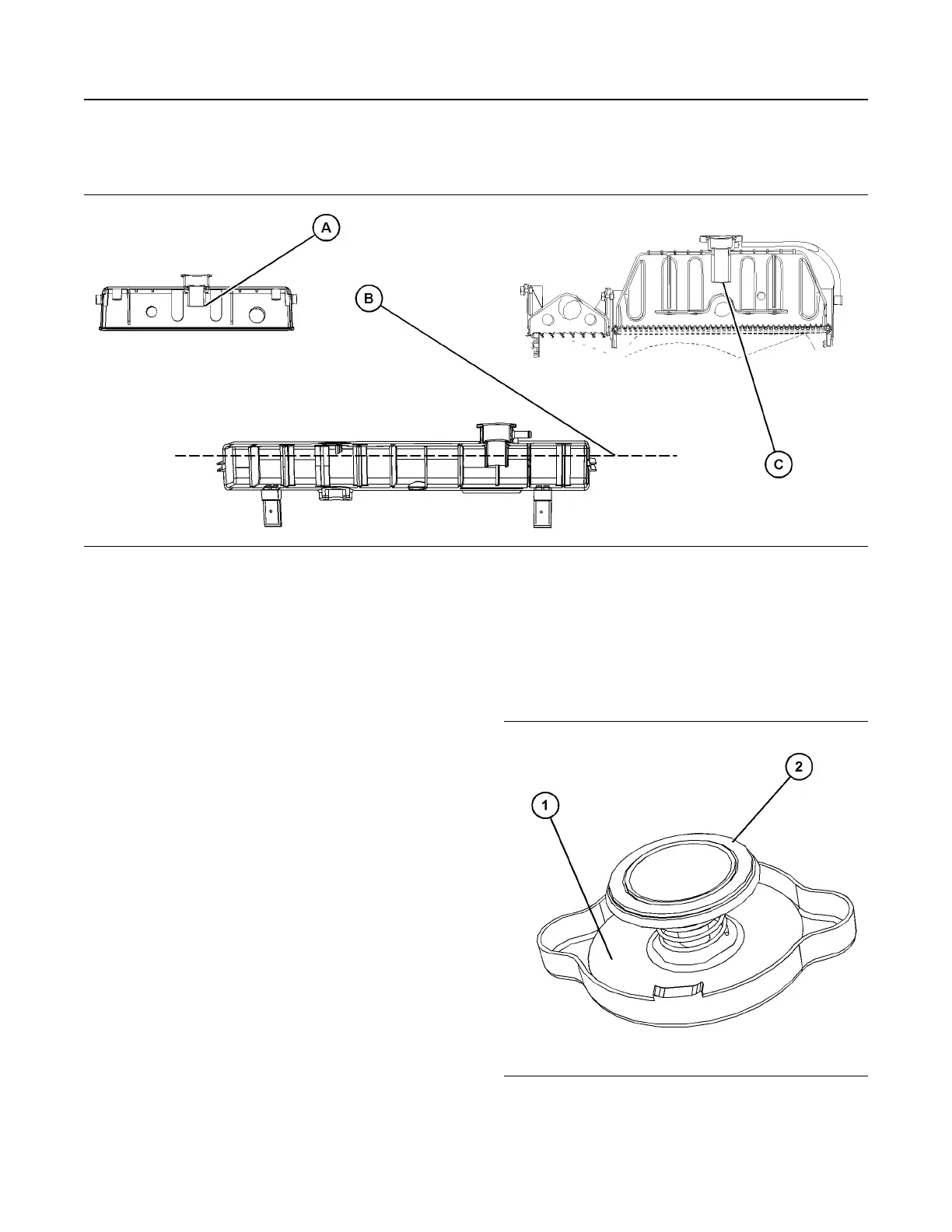

Illustration 54 g06165264
Typical example
• The coolant level (A) is for factory installed
radiator with the three cylinder engine.
• The coolant level (B) is for factory installed
radiator with the four cylinder turbocharged
engine. Once the level has been reached, add
0.5 L (0.13210 US gal) of coolant.
• The coolant level (C) is for factory installed
radiator with the four cylinder turbocharged
aftercooled engine.
Radiator Cap
Illustration 55 g06165279
Typical example
M0132847 87
Maintenance Section
Cooling System Coolant Level - Check
