3. Symbols on the Machine
-----------------------------------------------------------------------------------------------------------------
WARNING

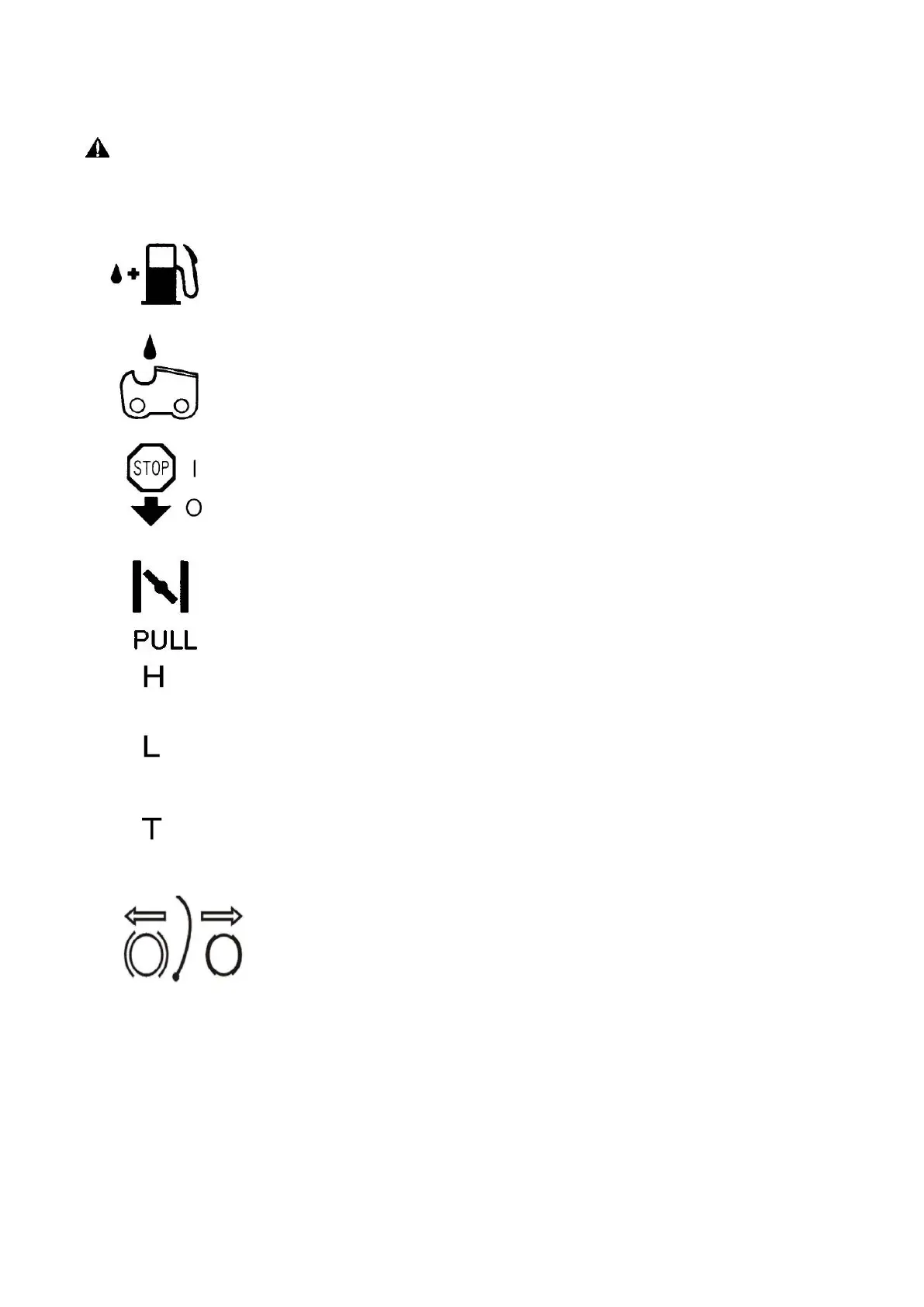

◆ For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
The port to refuel “2 Stroke 25:1 Mix”
Position: Fuel cap
The port to top up chain oil
Position: Oil cap
Setting the switch to the “|” position, the engine starts.
Setting the switch to the “O” position, the engine stops immediately.
Position: Rear-left of the unit
Choke will close when pulling the choke knob.
Position: Choke knob
The screw under the “H” stamp is The High-speed adjustment screw.
The screw under the “L” stamp is The Slow-speed adjustment screw.
The screw at the left of the “T” stamp is the idle adjustment screw.
Position: Left side of the rear handle
Shows the directions that the chain brake is released (white arrow) and activated
(black arrow).
Position: Front of the chain cover
