P9
Adjustments
[S1]

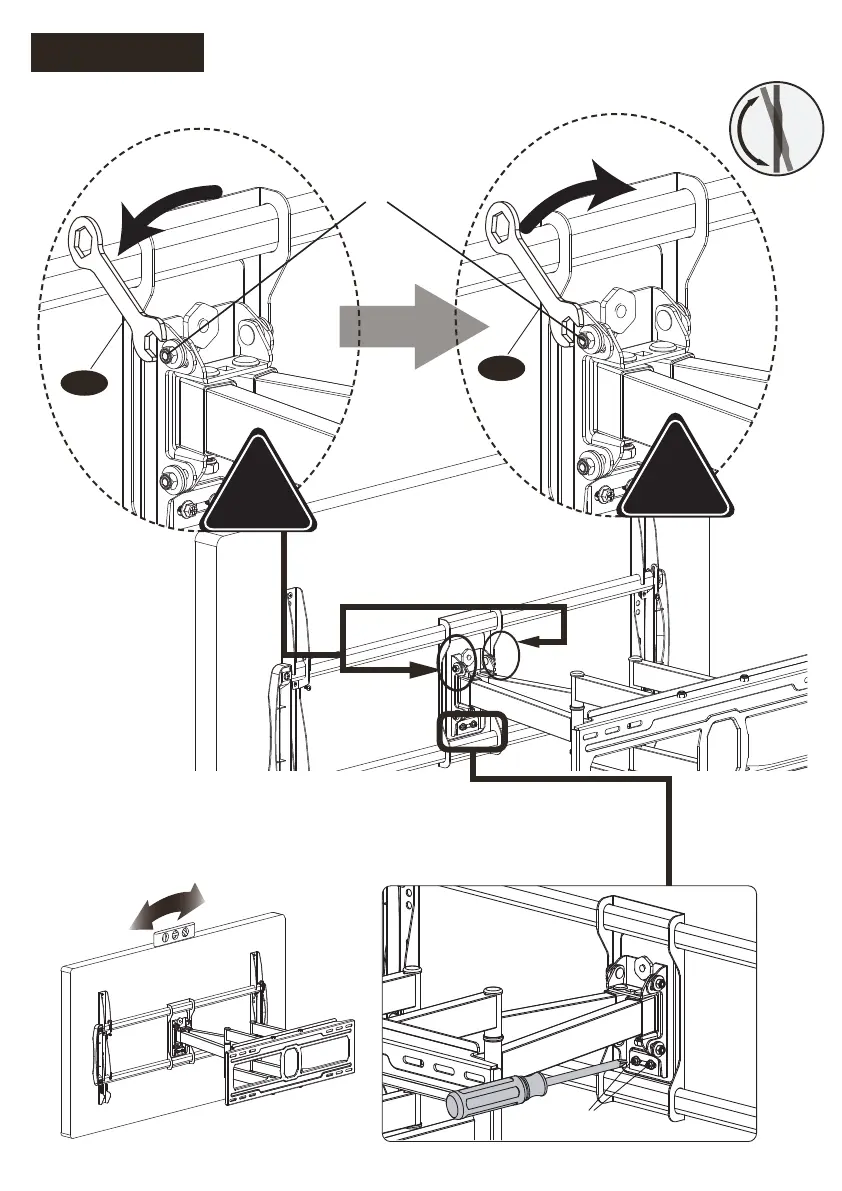

To adjust the tilt in both sides, loosen both tilt nuts and
move panel to desired position. Tighten both tilt nuts to
hold desired tilt.
TO ADJUST TV LEVEL, loosen the two both screws [S1]
on the rear of the arm plate, adjust level, and retighten
both screws [S1] to secure.
！
Tighten
C
！
Loosen
C
TIGHTEN
± 3°
Tilt Nut
To Next Page
