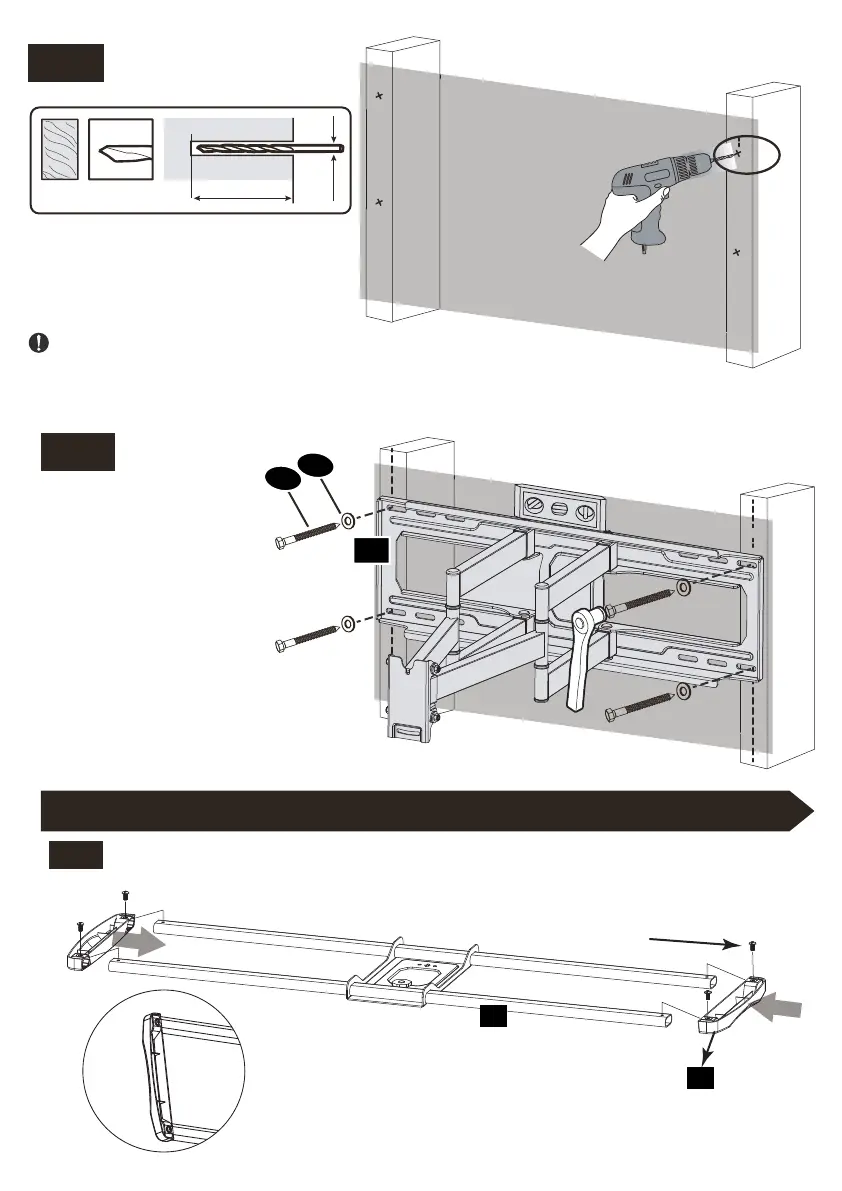

Install wall plate [01]
using lag bolts [A] and
washer [B]. Tighten the
lag bolts [A] until they
are pulled firmly against
the wall plate [01.
P7
Install the end caps [04] to Front support [02] with the
preassembled screws.
3-1
Pre-assembled scews
Finished
04
02
2B-4
01
2B-3
7/32 in.
Ø5.5 mm
3 3/4in 95 mm
2
1
A
B
Pilot holes must be drilled to a depth of 3 3/4 in. (95 mm). Be sure to
drill into the center of the stud.
STEP 3 Install Front Support and End Cap Together
IMPORTANT:
Drill pilot holes using a 7/32 in.
(5.5 mm) diameter drill bit.
