Figure 7-9. Remove Evaporator Fan Panel
Use towels to absorb water to avoid damage to ma-
chine compartment or surrounding ooring. Machine
compartment condensate pan may overow if manu-
ally defrosted without use of towels.
Return to Table of Contents
STEP 2.
STEP 3.
STEP 1.
STEP 2.
STEP 3. When ice has been removed:
STEP 4.
Figure 7-10. Deicing Evaporator
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual

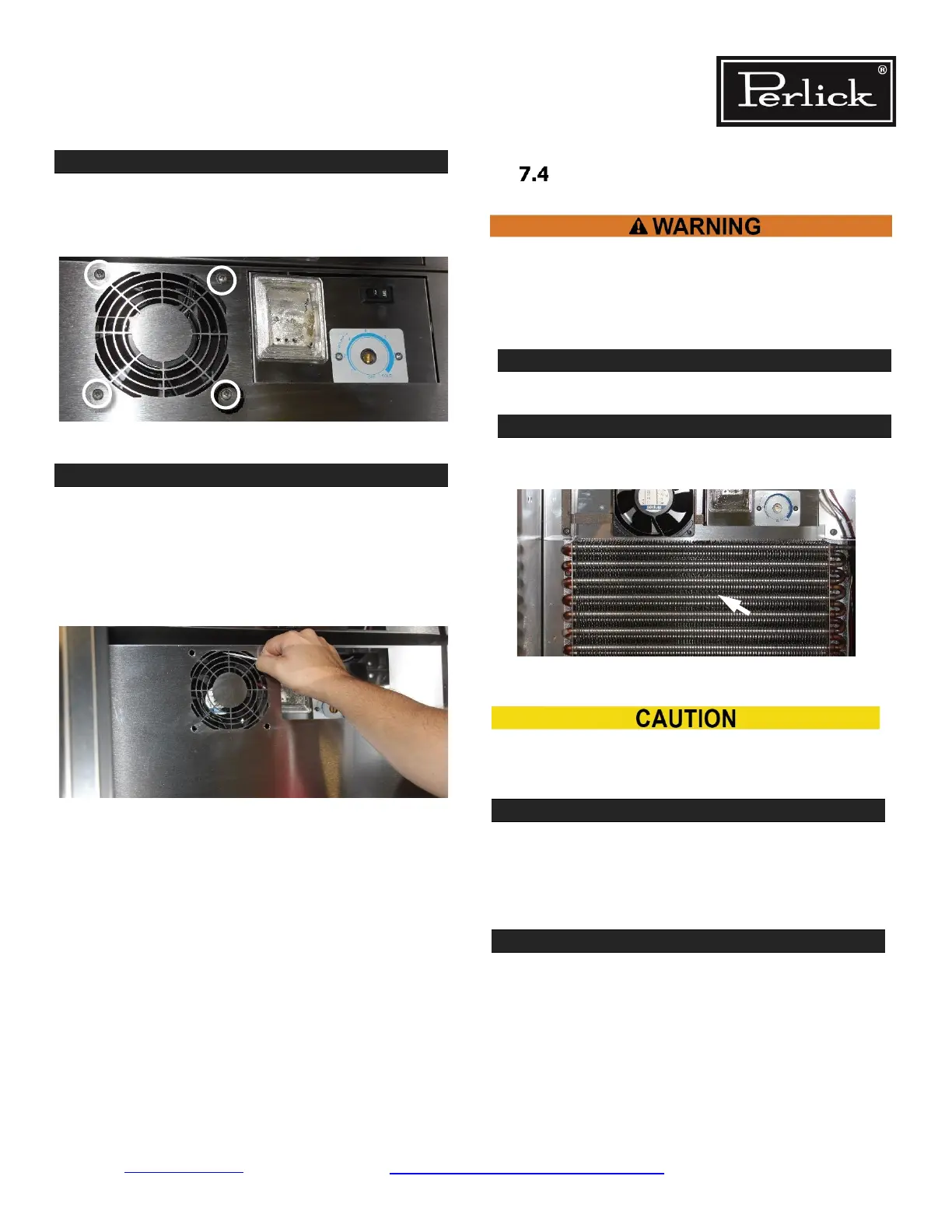

Remove Evaporator Fan panel by removing 2 (or
4) Phillips head screws from around the evaporator
fan. See Figure 7-8.
Figure 7-8. Evaporator Fan Panel Screw Locations
Pull outward from fan cutouts using a small
screwdriver, tilt panel top out towards you.
Pull up on panel to release anges from the
bottom inner liner of cabinet.
Carefully remove panel from cabinet.
De-Ice Blocked Evaporator Coil
Remove evaporator fan panel. See Section 7.3.
Using a fan or heat gun to gently direct warm air
over ice to remove. See Figure 7-10.
DO NOT use any tools to chip at or physically
remove ice!
Check sealing compound. Re-forming, if necessary,
to close any gaps around wire harness and piping.
Check for other potential sources of air inltration.
See Section 7.1.
Reverse steps in Section 7.3 to close the
evaporator fan panel.
Refrigeration System Repair Instructions Page 7-5
