Perlick COMPLIANT Series Installation Manual

PERLICK RESIDENTIAL INSTALLATION MANUAL
10
perlick.com
8). Remove the Perlick nameplate from the door front
using a plastic putty knife (Fig. 12). Install the new Perlick
nameplate included in the kit.
9). Insert the bearing into the door hinge bracket (Fig. 13).
10). Insert the V-block into the door bottom hinge bracket
and attach with the e-clip (Fig. 13). Note the orientation of
the V-block.
6°
11). Attach the top and bottom hinges and push plunger
using screws removed in step 6 (Fig. 14).
7). Remove the front panel from the door assembly by
removing the door gasket and then removing the overlay
mounting screws, 4 per side, from the perimeter of the
door assembly (Fig. 11). Rotate the front panel 180°. The
top becomes the bottom. Reattach using the same screws
and mounting holes and then reinstall the door gasket.

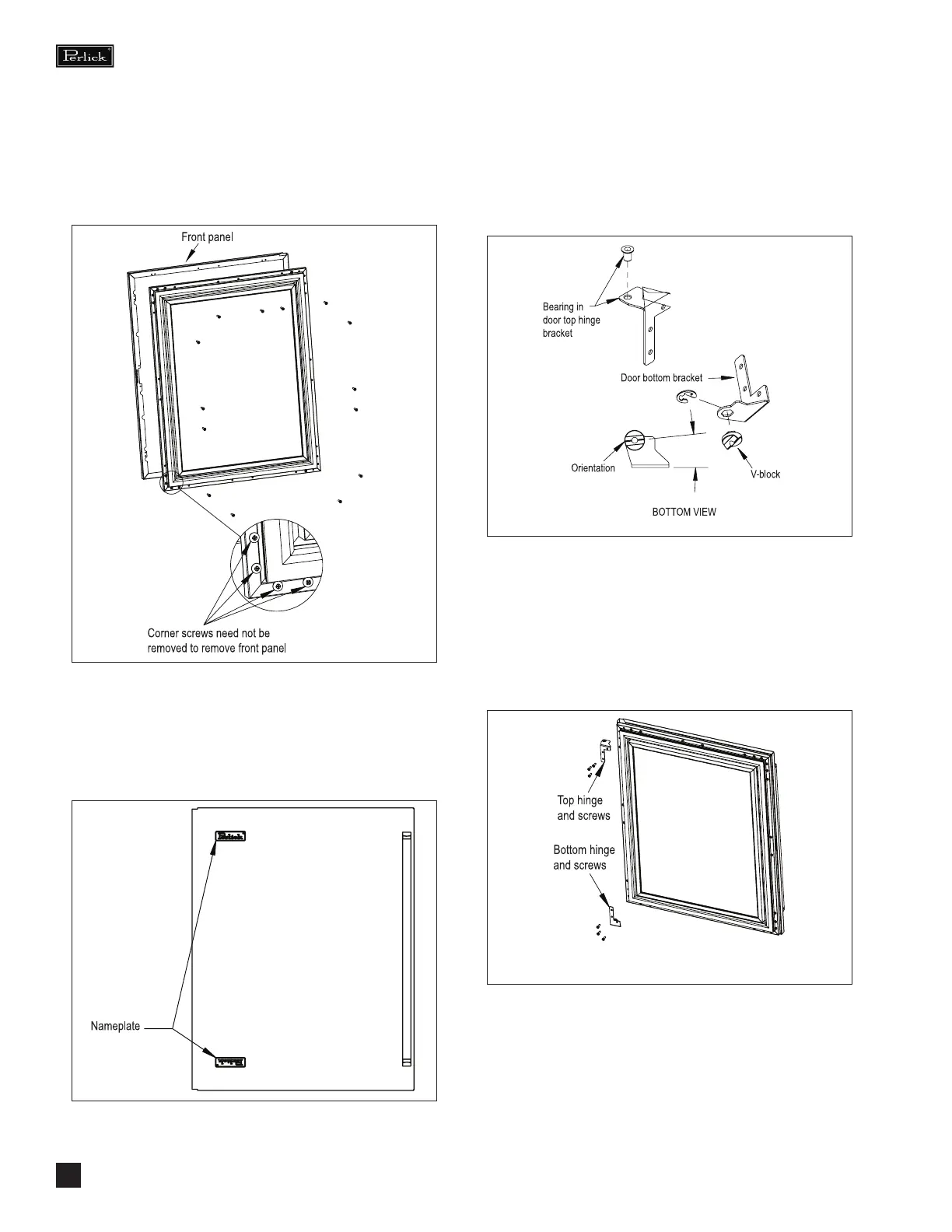

Figure 11. Removing Front Panel
Figure 12. Nameplate
Figure 13. Bearing and V-Block
Figure 14. Door Hinges
