PERLICK RESIDENTIAL UNDERCOUNTER CUBELET ICE MAKER PRODUCT MANUAL
14 | perlick.com/residential
INSTALLATION INSTRUCTIONS
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)

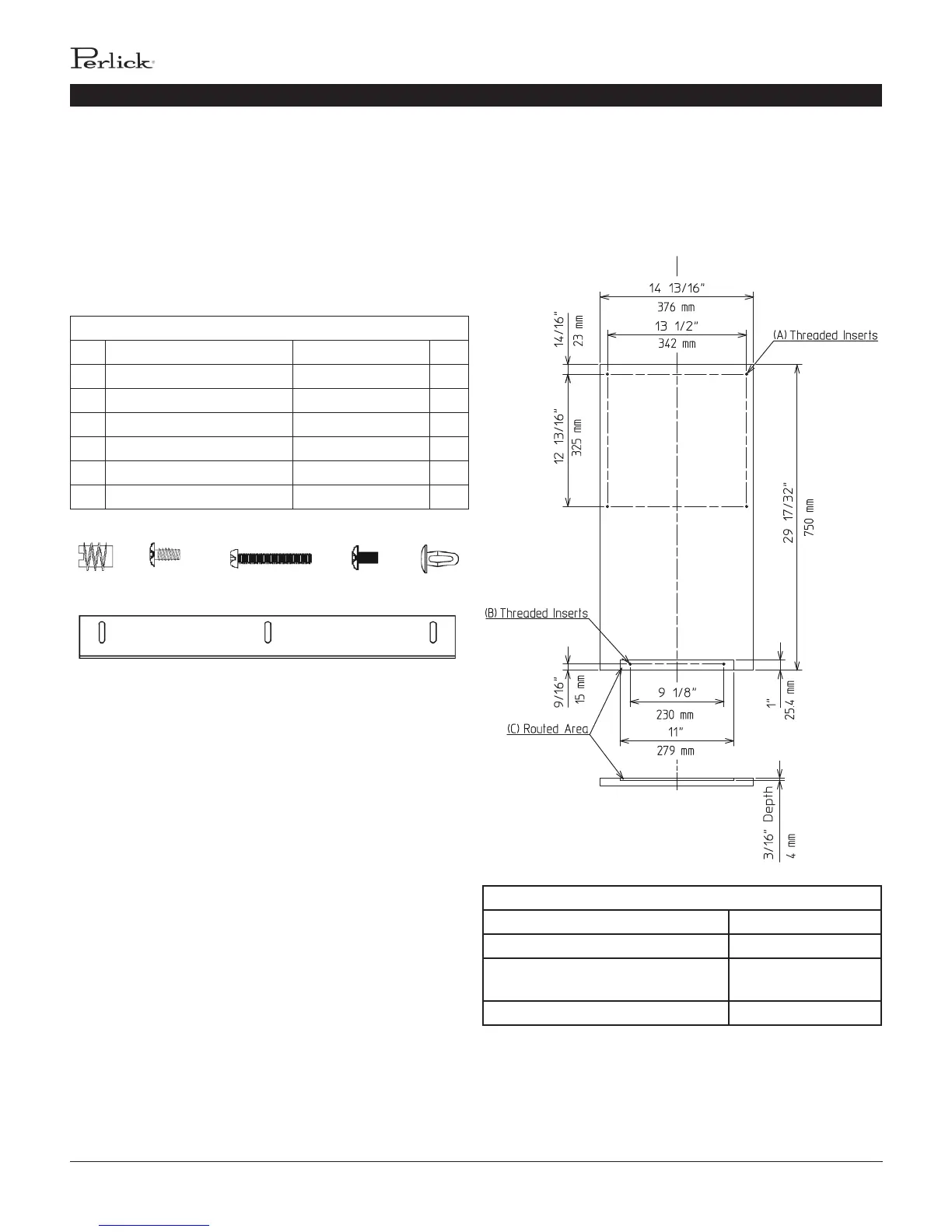

H80CIMW Overlay Panel Specicaon
Panel Height 29 17/32" (750 mm)
Panel Width 14 13/16" (376 mm)
Panel Thickness 5/8" (16 mm) min;
3/4" (19 mm) max
Panel and Door Weight (total) 20 lb. (9 kg) max
H80CIMW
Overlay Panel Parts
No. Descripon Part Number Qty.
1 Threaded Wood Insert 4A4004-01 6
2 T2 Screw 4x8 SS 7P32-0408 3
3 Pan Head Screw M4x25 SS 7C12-0425 4
4 Truss Head Screw M4x8 SS 7C32-0408 2
5 Canoe Clip 4A5835-01 2
6 Sheet Metal Bracket 4A3998-01 1
OVERLAY PANEL SPECIFICATION
Use the specicaon that applies to your appliance (H80CIMW
or H80CIMW-AD) and the direcons that follow to prepare your
overlay panel.
OVERLAY PANEL FABRICATION AND ATTACHMENT
The overlay panel must be craed by a professional cabinet
maker to ensure quality results.
PARTS
Ensure that all parts required for the overlay panel assembly are
contained in the accessories bag.
1 2 3 4 5
6
