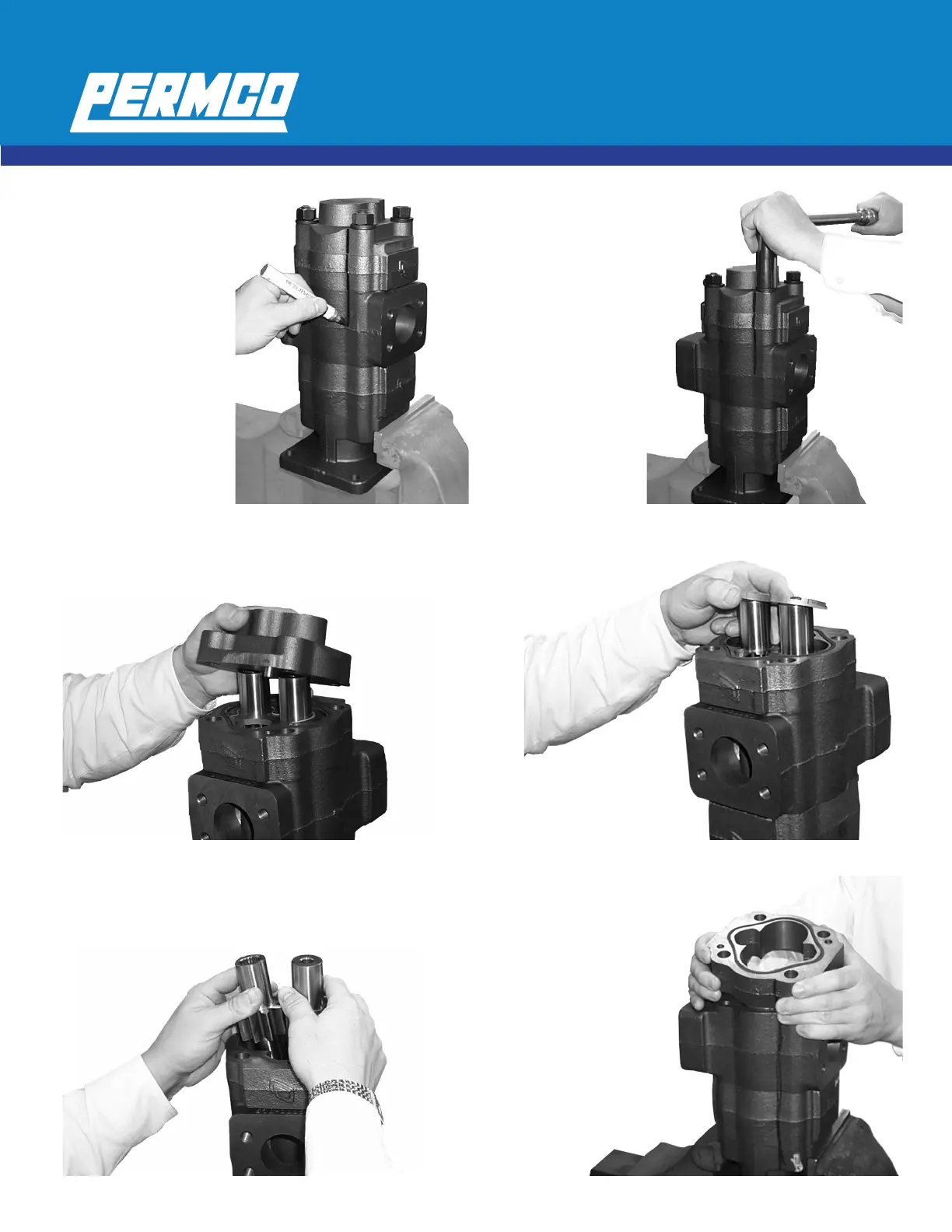

Start Disassembly
1.
Place pump in vise as
shown and scribe a
line down the pump
from port end cover
to shaft end cover.
This line will be used
for reassembling.
DO NOT GRIP
ON OR NEAR
ANY MACHINED
SURFACES DURING
ASSEMBLY OR
DISASSEMBLY
2.
Remove the 4 fasteners
with a socket or impact
wrench.
4.
Remove the
thrust plate and
inspect.
(See Page 8)
3.
Remove port end cover by inserting screwdrivers into pry-
pockets on the side of the gear housing. Be careful not to
damage machined surfaces.
5.
Multiple Units Only Remove gear set keeping gears
together. Remove thrust plate from bearing carrier.
Examine gear set and thrust plate for replacement.
(See Page 8)
6.
Multiple Units Only
Remove gear housing
from bearing carrier
by using screwdrivers
inserted into the pry-
pockets. Examine for
replacement.
(See page 8)
To Next Page
