Bushing Series Service Manual
8.

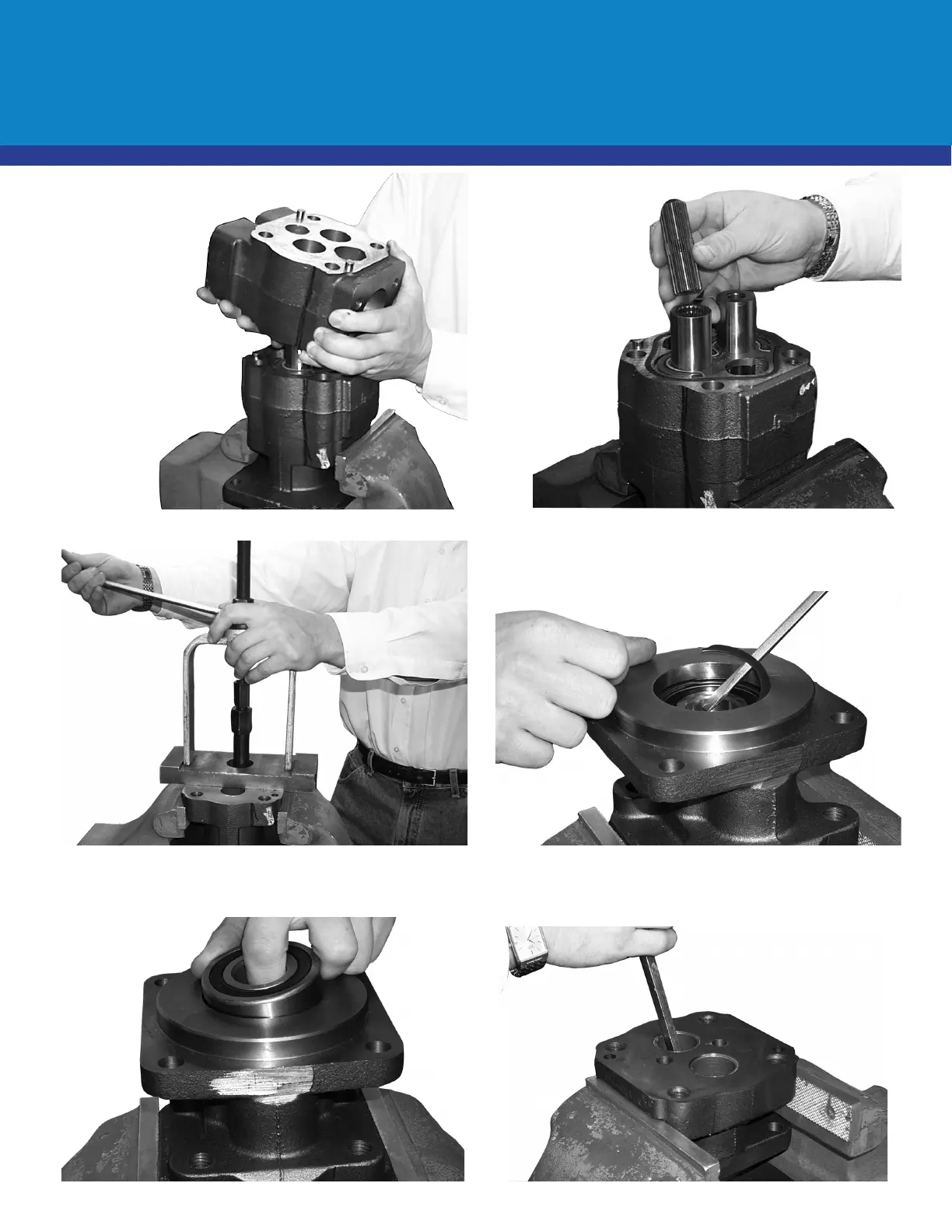

Remove the
connecting shaft,
gears, thrust
plates, and
gear housing
by repeating
steps 4-6. Refer
to page 8 for
replacement.
7.
Multiple Units Only
Lift bearing carrier
from gear housing.
9.
Inspect all
bushings
and refer to
page 8 for
replacement.
10.
If the unit is equipped with an outboard bearing, first
remove the retaining ring as shown. If unit has snap ring,
remove it with snap ring pliers.
11.
Use a bearing puller to remove outboard bearing, if needed.
12.
Remove the shaft seal by placing a screwdriver against the
back of seal and tapping as shown.
