f)

Secure

the

preamplifier

to

the

bottom

of

the

frame

or

housing,

using

the

screws

supplied

with

it.

PE

frames

incorporate

suitable

mounting

holes.

Mounting

instructions

The

TV

212

G

Preamplifier

is

needed

in

conjunction

with

a

magnetic

pick-up

if

neither

the

playback

unit

nor

the

connected

power

amplifier

have

an

integral

preamplifier.

Subsequent

installation

of

the

TV

212

G

is

easy

and

requires

no

soldering.

In

the

case

of

the

PE

720

and

PE

2020

playback

units

proceed

as

follows:

a)

Remove

the

playback

unit

from

the

frame

or

mounting

board.

For

this

purpose,

loosen

the

screws

of

the

two

locking

latches

below

the

chassis

plate

through

the

hole

in

the

turntable

and

slide

the

latches

towards

the

center.

b)

Place

the

preamplifier

into

the

lefthand

back

corner

of

the

frame

or

mounting

board.

c)

Remove

the

pickup

cable

from

the

pulhrelief

at

the

automatic

turntable,

wrap

up

and

plug

into

the

pickup

iack

(1).

d)

Run

the

pickup

cable

(2)

of

the

preamplifier

to

the

outside

and

secure

the

pull-relief

again.

e)

Connect

the

mains

cord

(3)

of

the

preamplifier

to

the

connector

of

the

automatic

turntable

The

preamplifier

is

now

switched

on

and

off

by

means

oftheON!OFFswitch

of

the

automatic

turntable,

Regardless

of

the

mains

voltage,

the

connector

is

always

connected

to

110

V.

In

the

case

of

automatic

turntables

having

no

separate

connector

for

the

connection

of

the

preamplifier,

connect

it

to

the

terminals

of

the

voltage

selector

or

to

terminals

2+3

of

the

terminal

board.

Through

the

ON/OFF

switch,

the

preamplifier

is

connected

in

parallel

with

a I1OV

winding.

If

the

preamplifier

is

to

be

operated

on

220

volts,

the

built-in

resistor

(4)

must

be

replaced

with

the

18

kilohm/3

W

resistors

supplied

with

the

preamp.

This

change

should,

however,

be

made

by

a

specialist.

If

necessary,

the

TV

212

G

preamplifier

can

also

be

connected

direct

to

the

mains

if

a

mains

plug

is

provided

at

the

end

of

the

mains

cord

(3),

If

this

method

is

used,

it

should

be

kept

in

mind

that

the

preamplifier

will

not

be

automatically

disconnected

from

the

mains

together

with

the

automatic

turntable

but

can

only

be

switched

off

by

pulling

the

mains

plug.

3

3

LJ

1

2

2

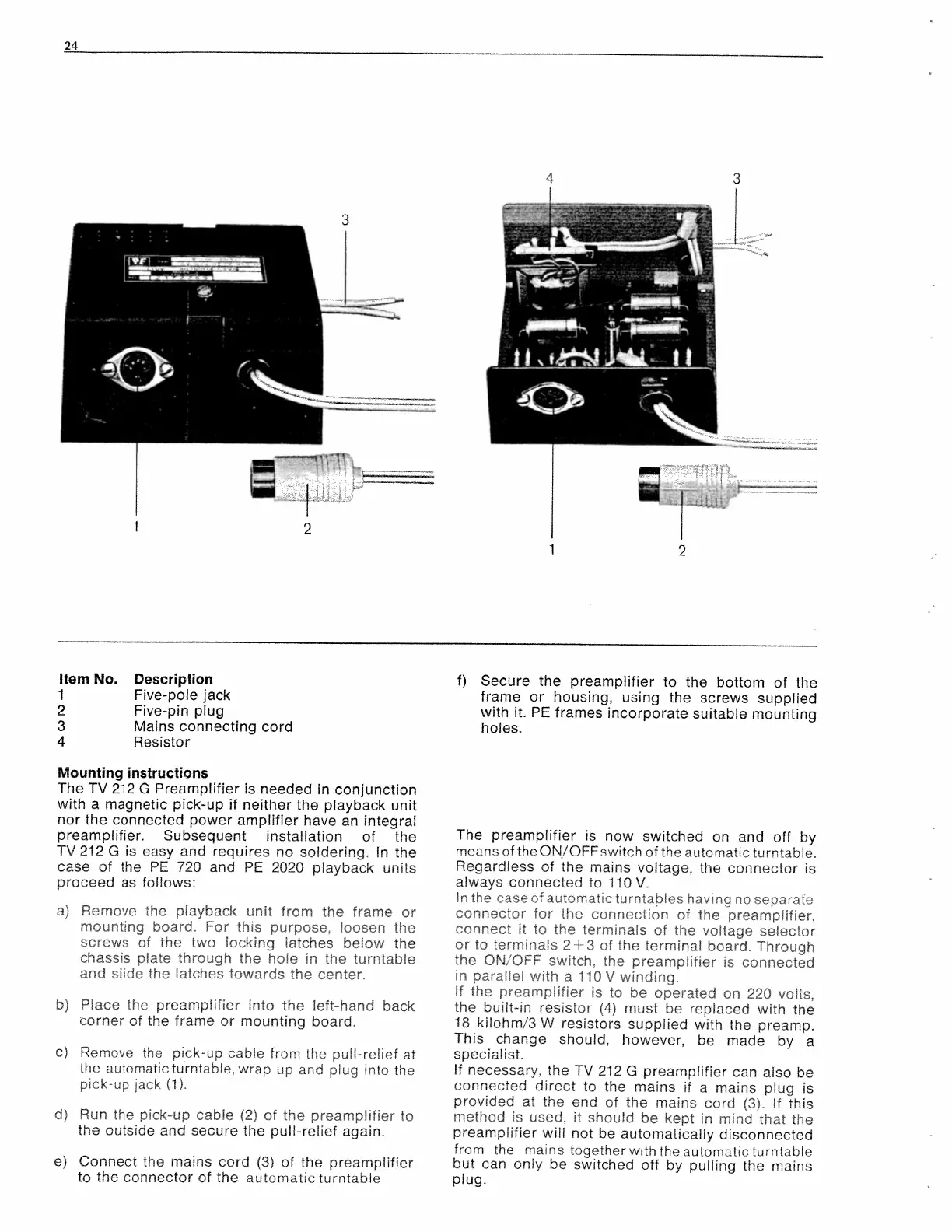

Item

No

1

2

3

4

Description

Five-pole

jack

Five-pin

plug

Mains

connecting

cord

Resistor
