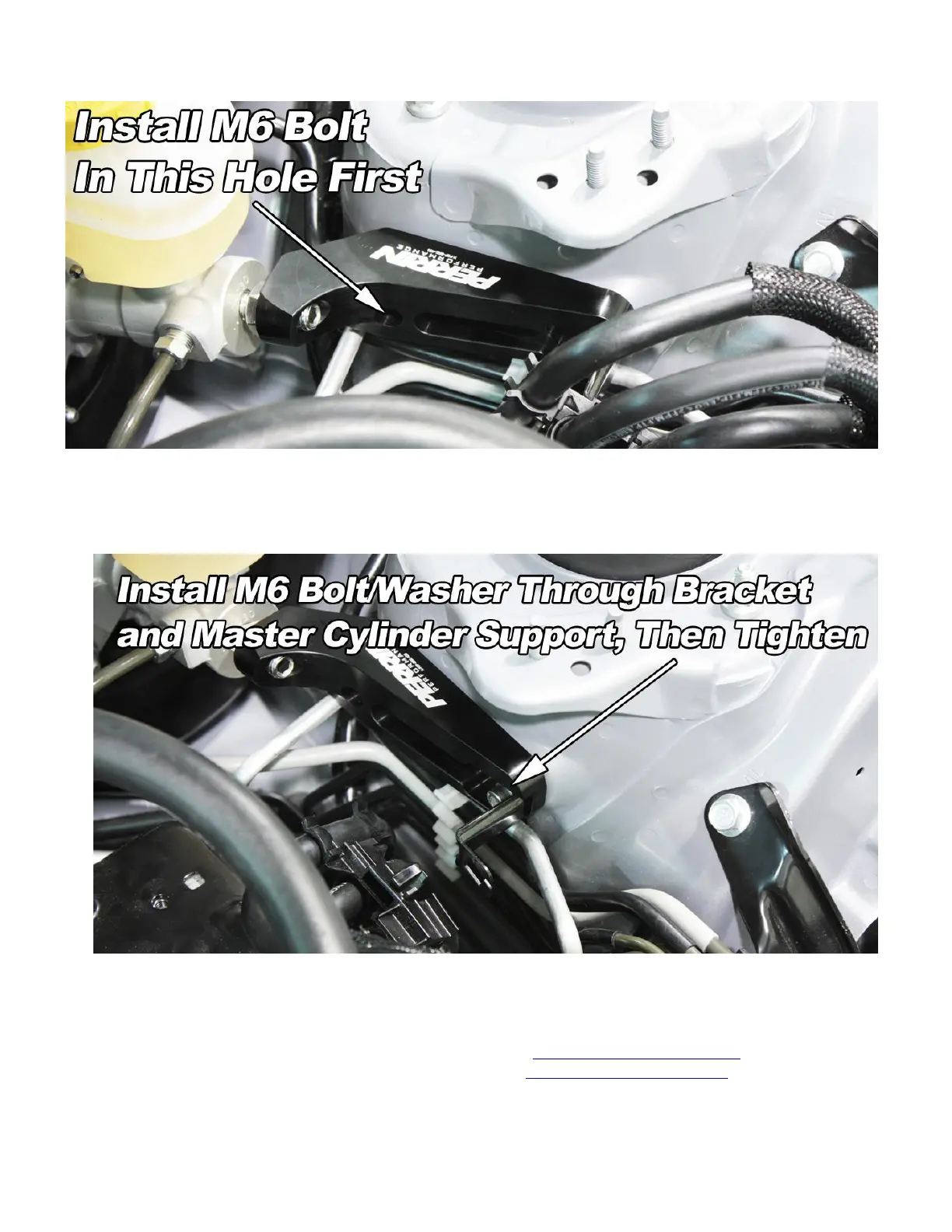

7. Using (1) supplied M6x20 bolt in hole closest to M12 Set screw, Install PERRIN Master Cylinder Support to chassis as shown below. NOTE: Align with (2) M6
threaded holes in shock tower, not holes without threads.
8. Install supplied M6 bolt & M6 washer, through hole in fuel line bracket, install bolt and bracket though remaining hole in PERRIN Master Cylinder Support
Bracket. NOTE: Make sure and line up small tab with hole in PERRIN Master Cylinder Support Bracket, as this keeps the bracket aligned properly for next
step.
9. Tighten both M6 bolts to 12-14 ft-lbs.
10. Snap plastic fuel line holder into bracket
11. Using supplied M6 wrench, tighten set screw into master cylinder until it touches. From this point, turn set screw roughly ½ to 1 full turn to preload some
tension on part. Lock nut to body of Master Cylinder Support using 19mm wrench. NOTE: Its common to see master cylinder move slightly left or right while
tensioning.
12. After 5-7 days of driving, recheck hardware for tightness.
Questions, Comments and Suggestions Contact: Tech@PERRINperformance.com
Visit Our Website for Instant Chat Options at www.PERRINperformance.com
Call Our Tech Team at 503-693-1702
