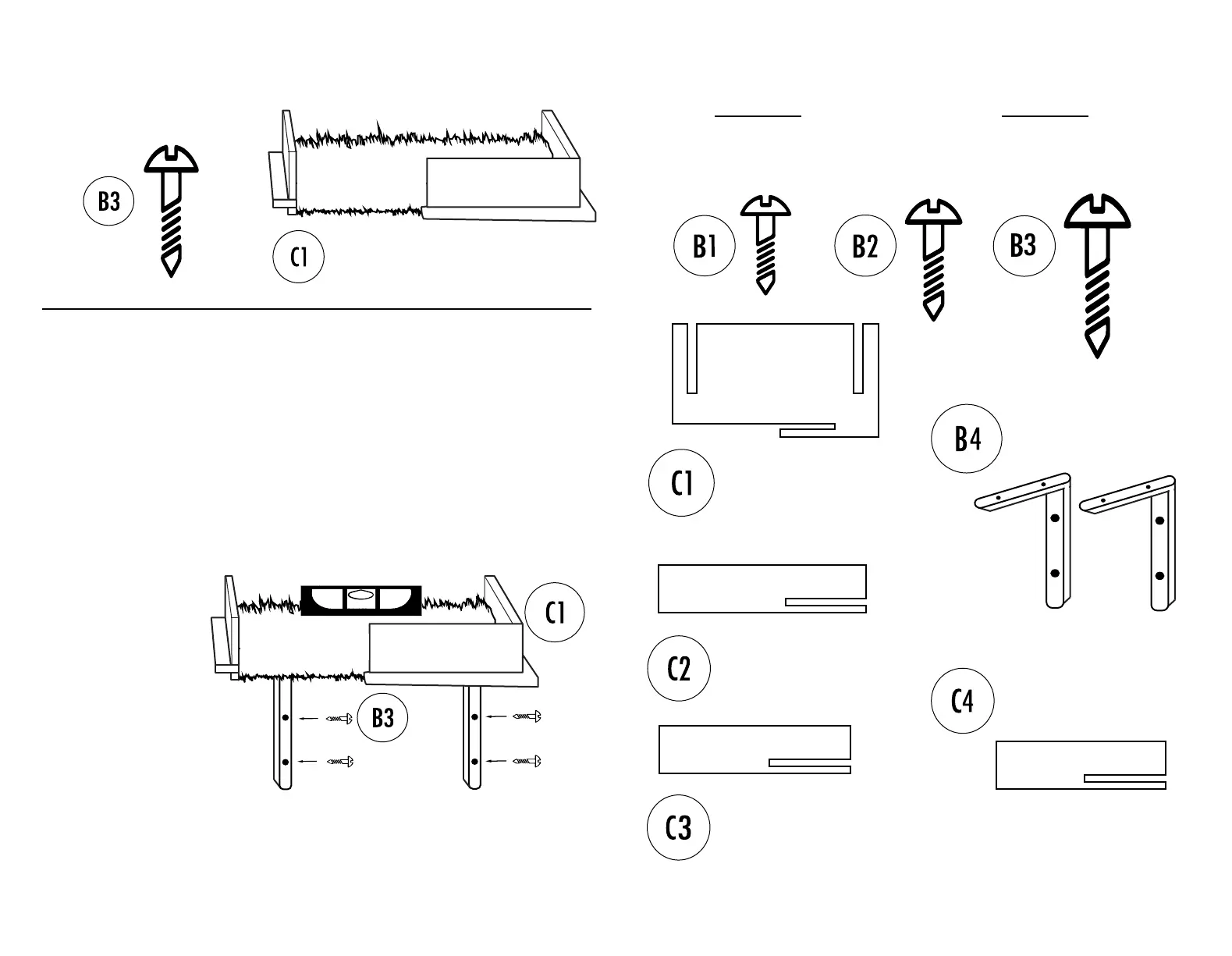

PARTS
Scew 1/2” (X4)
Screw 3/4” (X4)
Bolts 1 - 3/4” (X8)
Perch (X2)
L - Brackets (X4)
PARTS
FOR STEP 3
3
STEP
Bolts 1- 3/4” (X8)
Please locate the studs on the wall where you want to
place your perch. Use a level on the flat portion of the
shelf to align it straight.
NOTE: L-brakets are 16” apart to ensure correct
instalation into the wall studs. If screws are not aligned
into the wall studs it might not support the weight of
your feline.
3A
3B
After you locate the studs, insert the bolts (B3)
into the L-brackets and screw them into the wall.
Repeat this step for other perch (C1).
ASSEMBLY INSTRUCTIONS
Side Wall Large (x2)
Front Wall Small (x2)
Side Wall Medium (x2)
Perch (X2)
