5
|

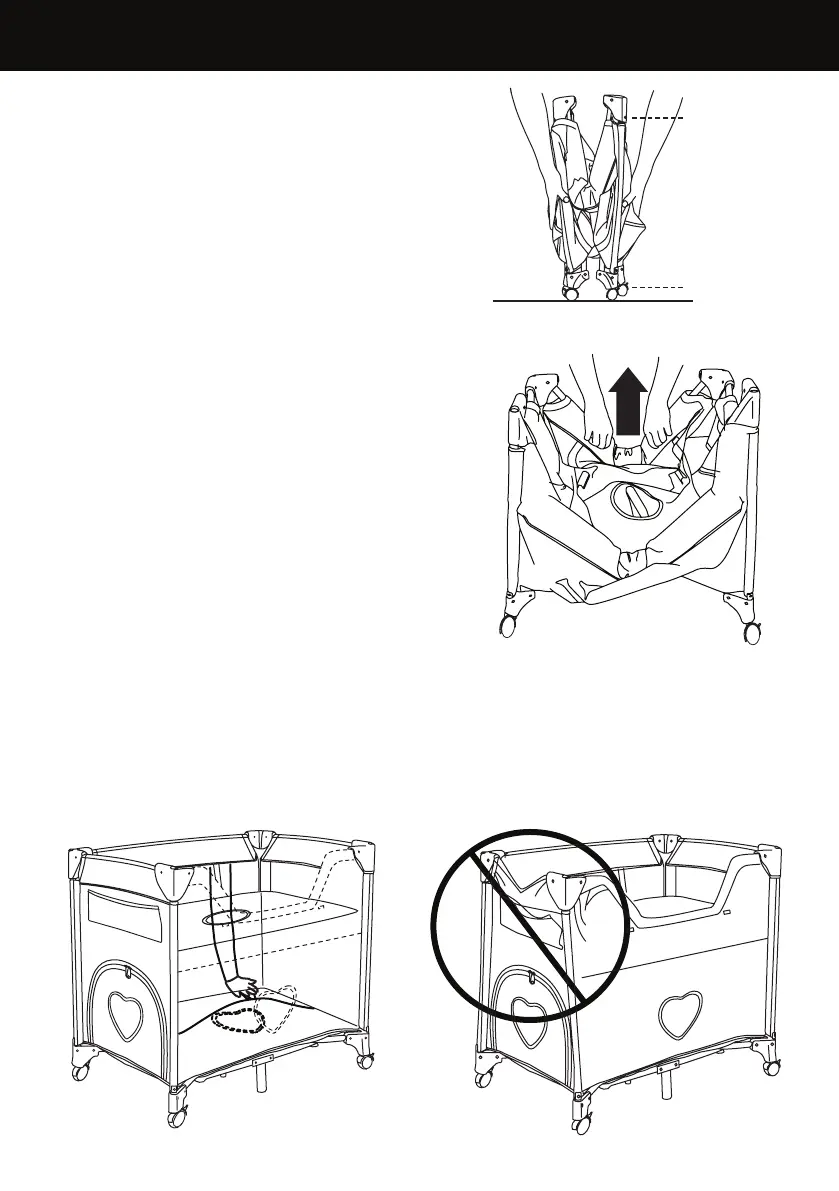

3) Set the frame with the rails side up and
the wheels side down (Fig. 3a). Keep the
legs close together. DO NOT push center
down yet.
Top rails must be fully erected before
lowering center. Pull up one rail at a
time, hold one hand on each side of
the rail and pull up sharply, do not pull
from the middle where the center latch
release is located, make sure both tubes
latch in place and each rail is rigid
(Fig. 3b).
IMPORTANT: The center must be raised
while locking the rails. If one rail will lock but
the other side will not then, unlock the rail
by squeezing the release in the center and
try again.
IMPORTANT: The handle located in the
center of the frame oor MUST remain
raised (Approx. 45.7 cm or 18 inches) while
locking the side rails in place. If the center is
not raised the rails will NOT lock.
Fig. 3b
Fig. 3a
Fig. 4a Fig. 4b
4) Once all four (4) top rails are locked in place, pull and push down on the
center handle (Fig. 4a). The center mechanism will automatically lock in
place.
IMPORTANT: Test each top rail by pushing down slightly to conrm each
is rigid and locked securely in lace before use (Fig 4b).
Wheels
Rails
