In the event of a breakdown

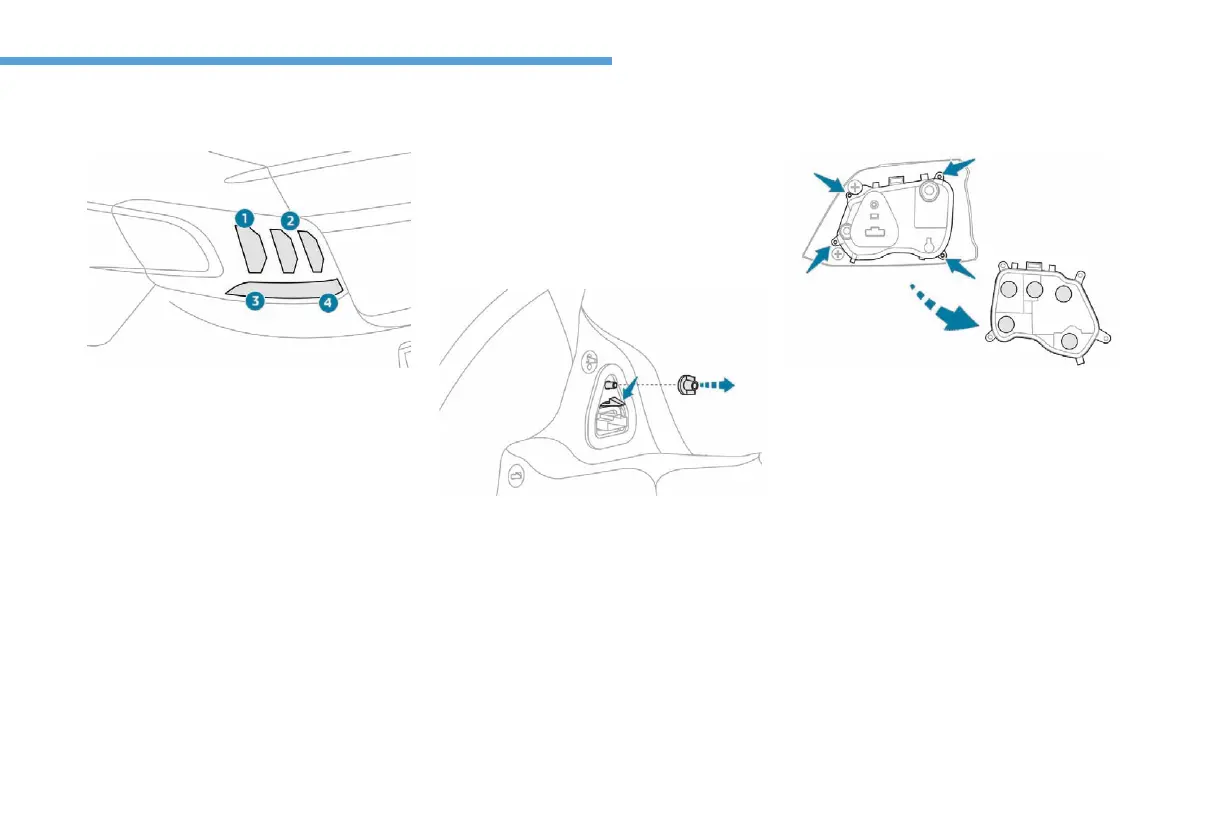

Rear lamps
1 Brake / Sidelamps (P21/4W).
2 Position lamps (P21/4W).
3 Direction indicators (PY21W).
4 Reversing lamp (P21W).
or
Fog lamp (PR21W).
These bulbs are changed from inside the boot:
F Open the boot.
F Remove the access grille from the
corresponding side trim panel.
F Disconnect the lamp connector.
F Loosen and remove the nut.
F From the outside, cautiously remove the
lamp unit straight from its housing.
F Remove the four screws and lift off the bulb
holder.
F Turn the failed bulb a quarter of a turn and
replace it.
For reassembly, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp.
