FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain
factory-fitted audio equipment:
– roof aerial,
– coaxial aerial cable,
– basic interference suppression,
– supply to front speakers,
– supply to rear speakers and tweeters,
– two 8-way connectors.

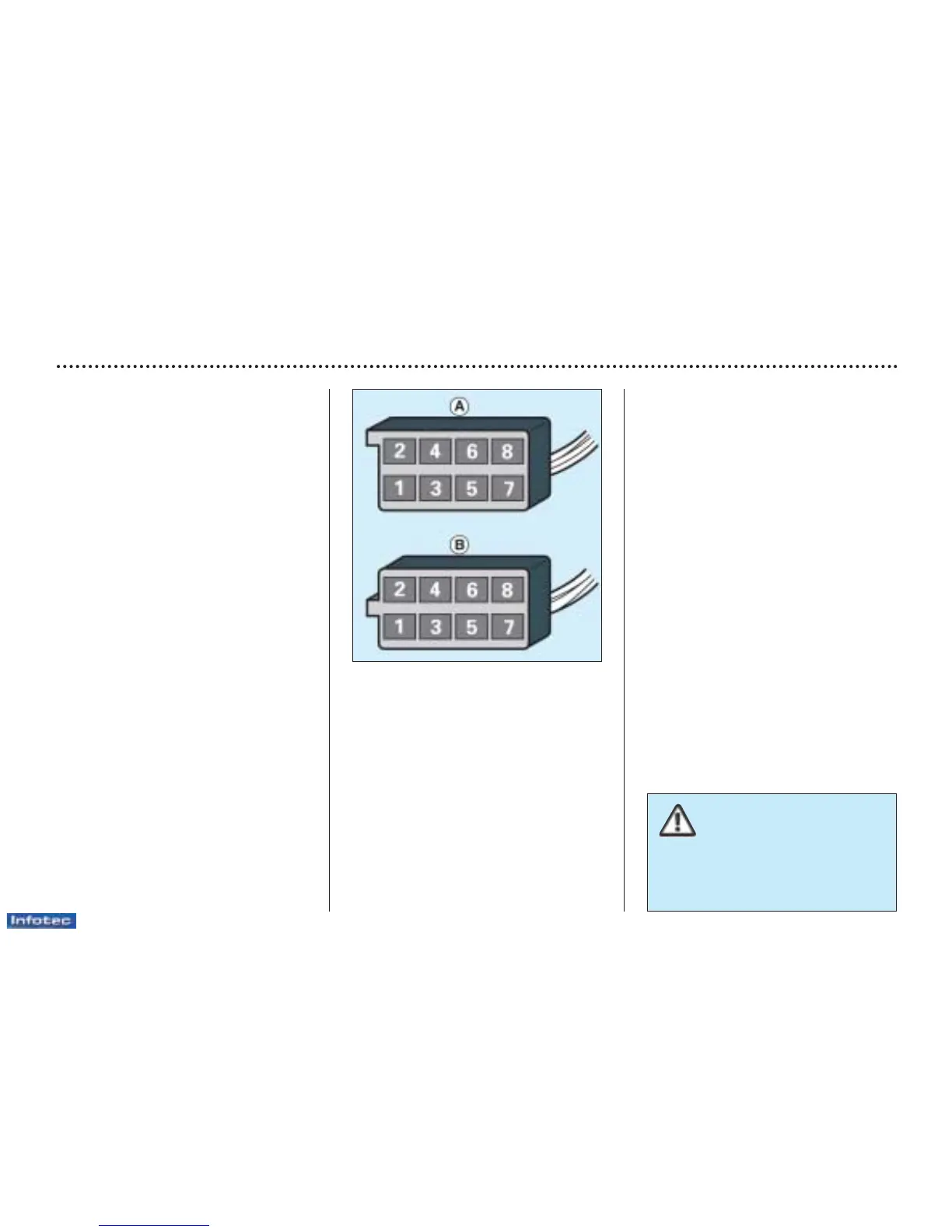

Wiring positions and
functions
A1 : Mute.
A2 : Do not use.
A3 : Do not use.
A4 : Do not use.
A5 : Spare.
A6 : (+ve) Accessories.
A7 : (+ve) Permanent.
A8 : Earth.
B1 : (+ve) Rear right loud-speaker
and tweeter.
B2 : (–ve) Rear right loud-speaker
and tweeter.
B3 : (+ve) Front right loud-speaker
and tweeter.
B4 : (–ve) Front right loud-speaker
and tweeter.
B5 : (+ve) Front left loud-speaker
and tweeter.
B6 : (–ve) Front left loud-speaker
and tweeter.
B7 : (+ve) Rear left loud-speaker
and tweeter.
B8 : (–ve) Rear left loud-speaker
and tweeter.
MAINTENANCE OF YOUR 406 COUPE
FITTING THE SPEAKERS
The factory-fitted equipment allows
you to fit:
– 165 mm diameter speakers to the
front doors,
– 55 mm diameter tweeters to the
fascia,
– special elliptical shaped speakers
on the rear shelf,
– 65 mm diameter tweeters on the
rear panels.
Before installing audio
equipment or speakers in
your vehicle, contact a
PEUGEOT dealer.
