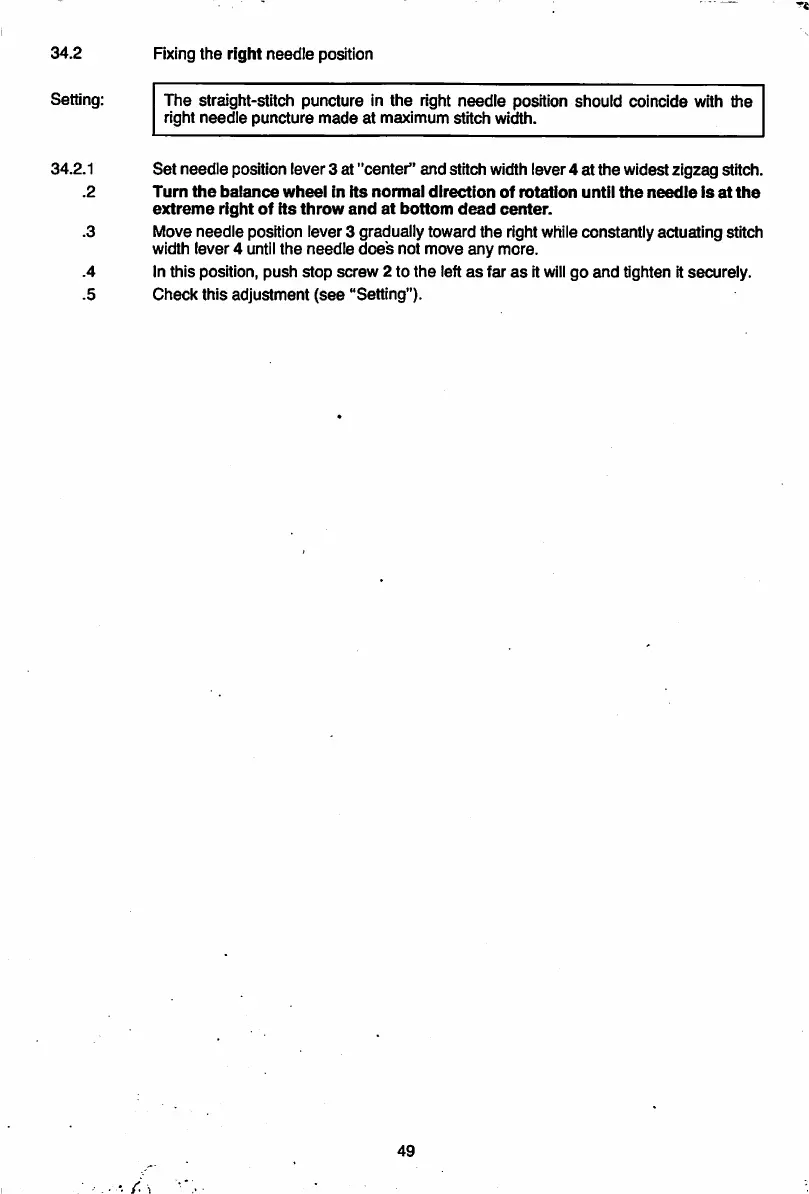

34.2 Fixingthe right needle
potion
Setting:
The straight-stitch puncture in the right needle position should coincide with the
right
needle
puncture
made
at maximum stitch width.
34.2.1 Set needle position lever 3 at "center" and stitch widthlever 4 at the widest zigzag stitch.
.2
Turn
the
balance
wheel
In
Its
normal
direction
of
rotation
until
the
needle
is
at
the
extreme
right
of
Its
throw
and
at
bottom
dead
center.
.3 Move needle position lever 3 gradually toward the right while constantly actuating stitch
width lever 4 untilthe needle doe's not move any more.
.4 In this position,
push
stop
screw
2 to
the
left
as
far
as
it will
go
and
tighten it securely.
.5
Check
this adjustment
(see
"Setting").
49
