Pfaff 418 Series User Manual

34
34.1
Setting:
Adjustment:
34.1.1
.1.2
.1.3
.1.4
.1.5

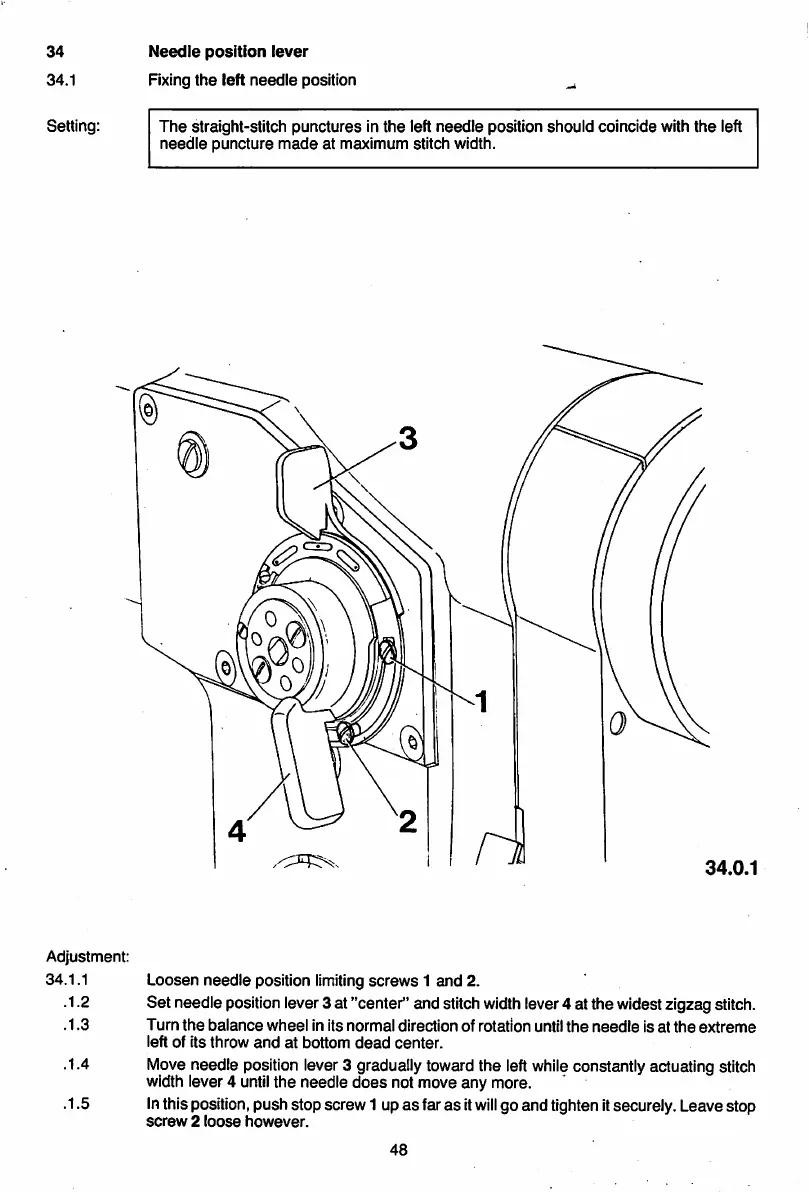

Needle position lever
Fixing the left needle position
The straight-stitch punctures in the left needle position should coincide with the left
needle puncture made at maximum stitch width.
34.0.1
Loosen needle position limiting screws 1 and 2.
Set needle position lever3at"center" and stitch width lever4 atthe widestzigzagstitch.
Turn the balance wheel in its normal direction of rotation until the needle is at the extreme
left of its throw and at bottom dead center.
Moveneedle position lever 3 gradually toward the leftwhileconstantly actuating stitch
width lever 4 untilthe needle does not move any more.
Inthisposition, push stop screw 1 upas faras it will go and tightenitsecurely.Leavestop
screw 2 loose however.
48
