Fitting:
● Place the circuit board on the front housing panel.
● Secure the circuit board with screws 114, 115 and 116 (fig. 86).
● Mount connection plugs 2, 7, 12, 13, 14, 15, 16, 112 and 113 onto the circuit board.

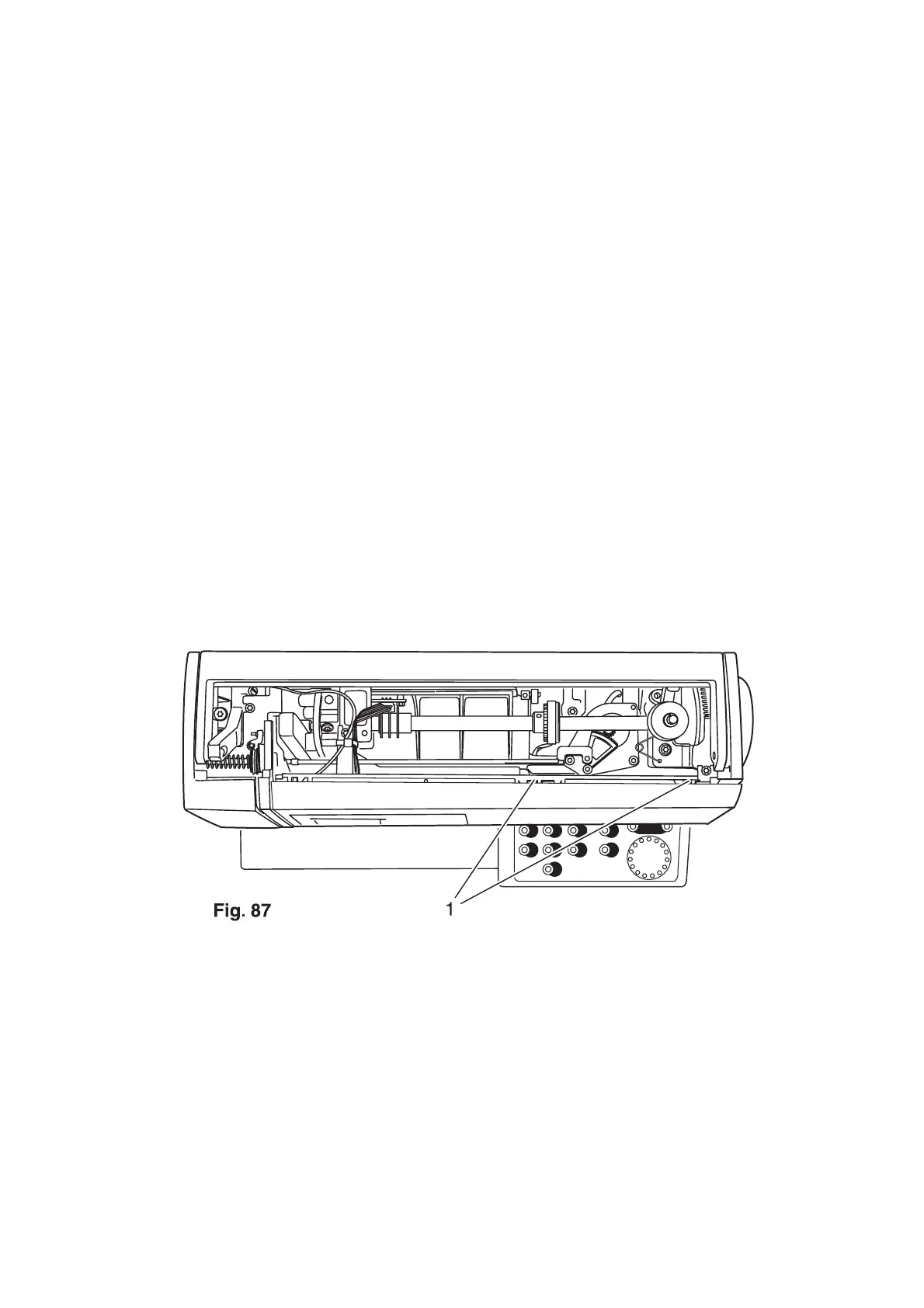

● Mount the facing panel onto the front housing panel, making sure that both lugs 1 lock into place
(fig. 87).
● Attach the housing insert and secure with both torx screws.
● Attach the folding cover.
● After a running-in time of 10 - 15 min. check the adjustment of equal forward and reverse stitch length
in accordance with section 21 of the service manual.
● Carry out an electrical safety test in accordance with VDE 0701 using testing appliance
Metrawatt 5013.
