Pfaff EXPRESSION 2024 Service Manual

76
32. Changing the key-pair panel
Removal:
● Remove the housing according to the service manual.

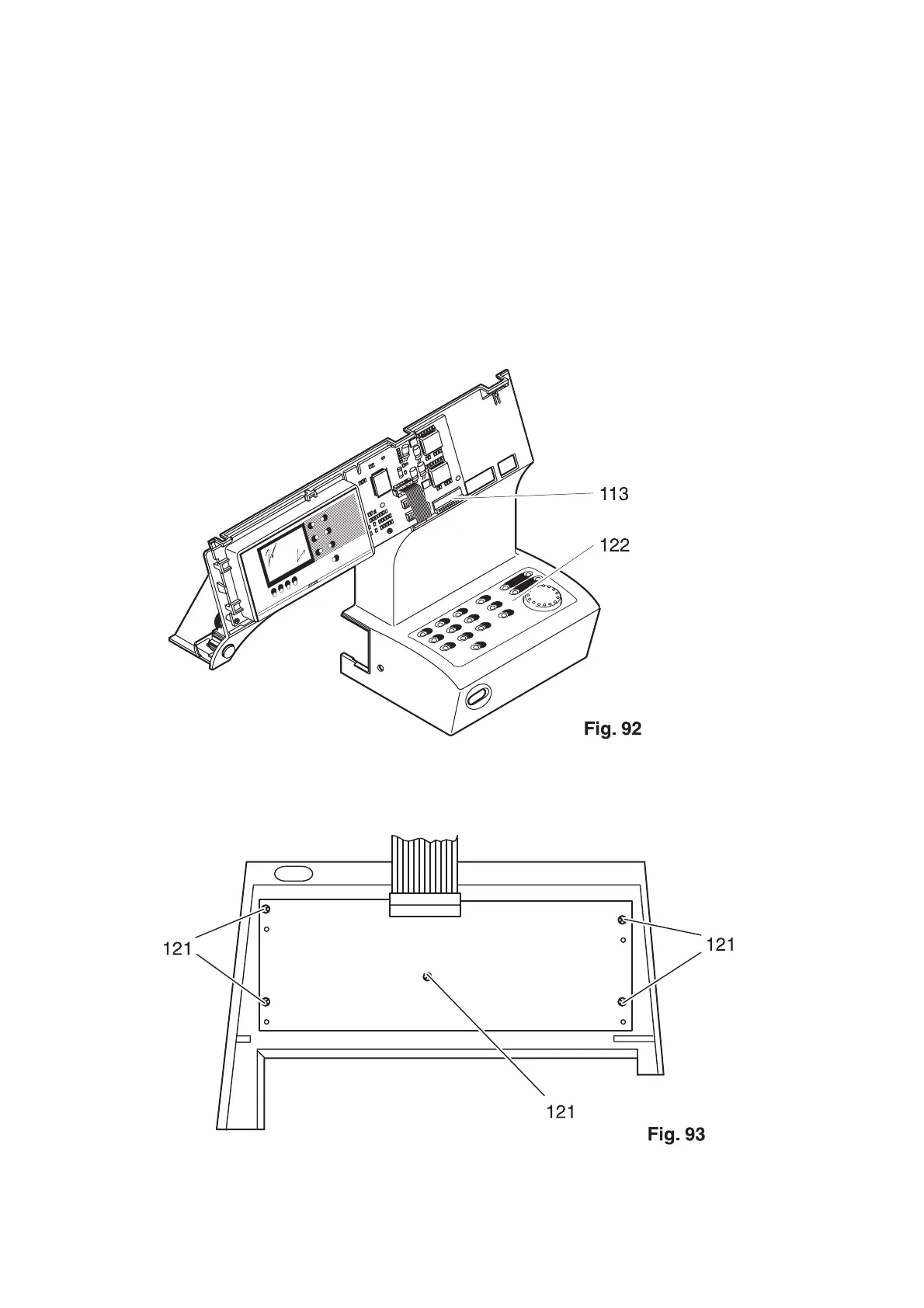

● Remove connection plug 113 from the circuit board (fig. 92).
● Unscrew and remove the five fastening screws 121 (fig. 93).
● Remove the complete circuit board together with the key-pair panel and the keys from the front
housing panel.
