Pfaff Hobbylock 784 User Manual

I
n
E1
H

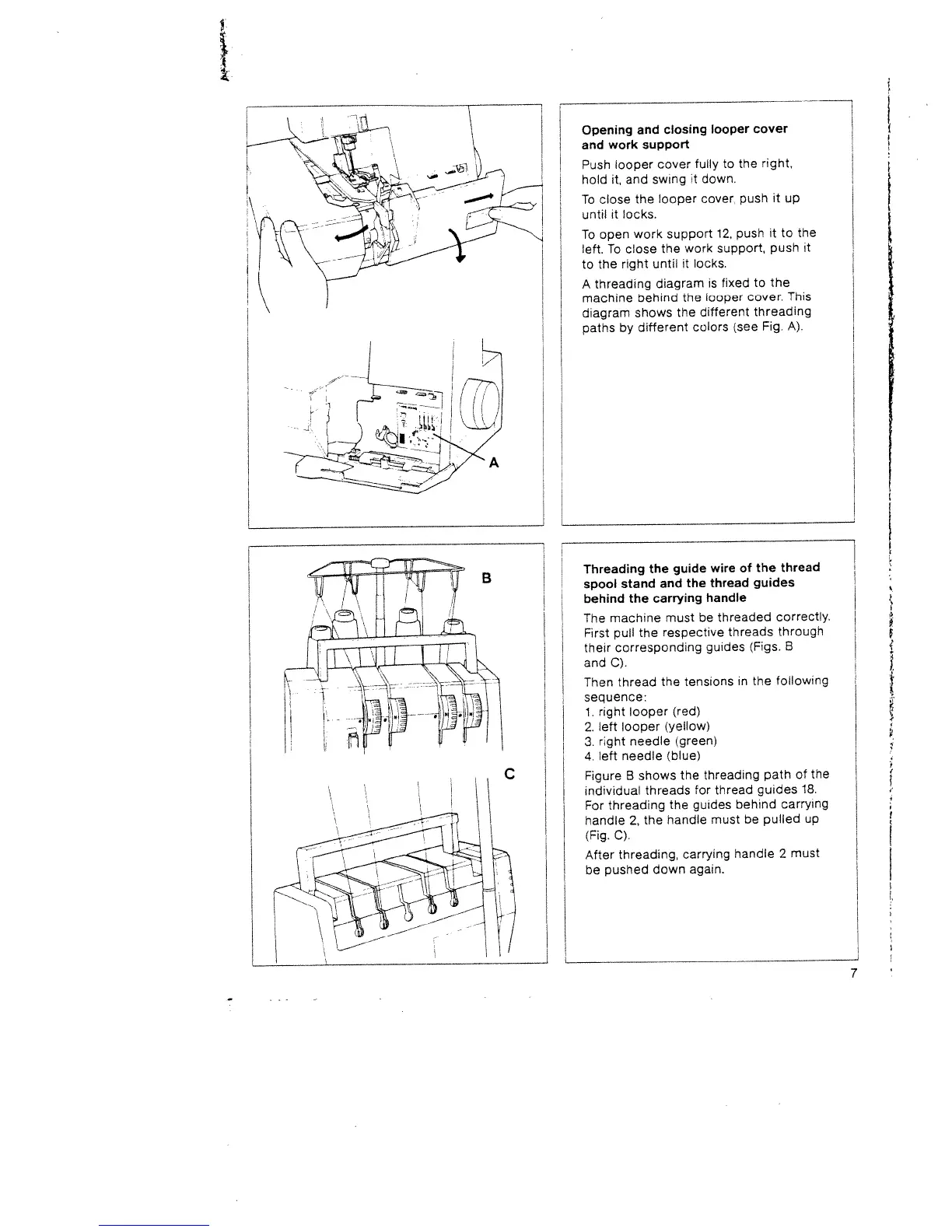

Opening
and
closing
looper
cover
and
work
support
Push
looper
cover
fully
to
the
right.
hold
it,
and
swing
it
down.
To
close
the
looper
cover,
push
it
up
until
it
locks.
To
open
work
support
12,
push
it
to
the
left.
To
close
the
work
support,
push
it
to
the
right
until
it locks.
A threacing
diagram
is fixed
to the
machine
behind
the
looper
cover.
This
diagram
shows
the
different
threading
paths
by
different
colors
(see
Fig.
A).
C
Threading
the
guide
wire
of
the
thread
spool
stand
and
the
thread
guides
behind
the
carrying
handle
The
machine
must
be
threaded
correctly.
First
pull
the
respective
threads
through
their
corresponding
guides
(Figs. B
and
C).
Then
thread the
tensions
in the
following
sequence:
1.
right
looper
(red)
2.
left
looper
(yellow)
3.
right
needle
(green)
4. left
needle
(blue)
Figure
B
shows
the
threading
path
of
the
individual
threads
for
thread
guides
18.
For
threading
the
guides
oehind
carrying
handle
2,
the
handle
must
be
pulled
up
(Fig.
C).
After
threading,
carrying
handle
2
must
be
pushed
down
again.
1
7
