17

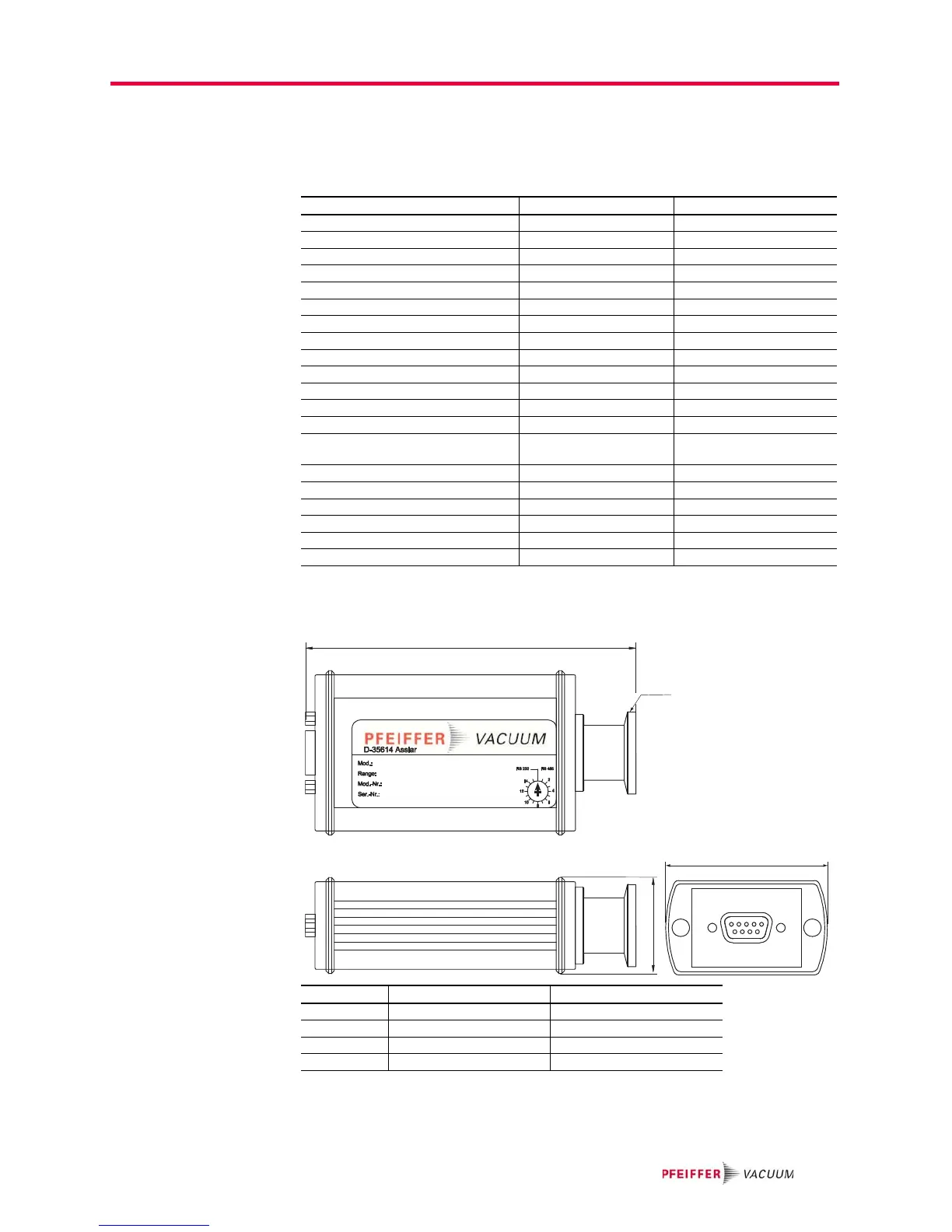

Technical data and dimensions
10 Technical data and dimensions
10.1 Technical data
10.2 Dimensions
Parameter Digital Pirani transmitter Digital Pirani transmitter
Flange (in) DN 16 ISO-KF DN 16 CF
Protection category IP 40 IP 40
Seal Metal Metal
Pressure max. 4 bar 4 bar
Feedthrough Glass Glass
Accuracy: % of measurement 1 · 10
-3
- 1 mbar: ± 5 1 · 10
-3
- 1 mbar: ± 5
Weight 0.2 kg 0.2 kg
Materials in contact with media Tungsten, stainless steel Tungsten, stainless steel
Measurement range max. 1000 mbar 1000 mbar
Measurement range min. 1 · 10
-4
mbar 1 · 10
-4
mbar
Sensor cable length max. with RS-485: 1000 m with RS-485: 1000 m
Method of measurement Pirani Pirani
Measuring cycle 40 ms 40 ms
Interface: Connection Digital RS-232 / RS-485, 9-
pin, D-sub-socket
Digital RS-232 / RS-485, 9-
pin, D-sub-socket
Temperature: Bakeout 70 °C 70 °C
Temperature: Operating 5-50 °C 5-50 °C
Temperature: Storage -40-+60 °C -40-+60 °C
Supply: Voltage 24 V DC 24 V DC
Supply: Power consumption max. 2 W 2 W
Repeatability: % of measurement 1 · 10
-3
- 1 mbar: ± 1 1 · 10
-3
- 1mbar: ± 1
Dimensions Digital Pirani transmitter Digital Pirani transmitter
A 120 mm 120 mm
B35mm 35mm
C60mm 60mm
DN1 DN 16 ISO-KF DN 16 CF
