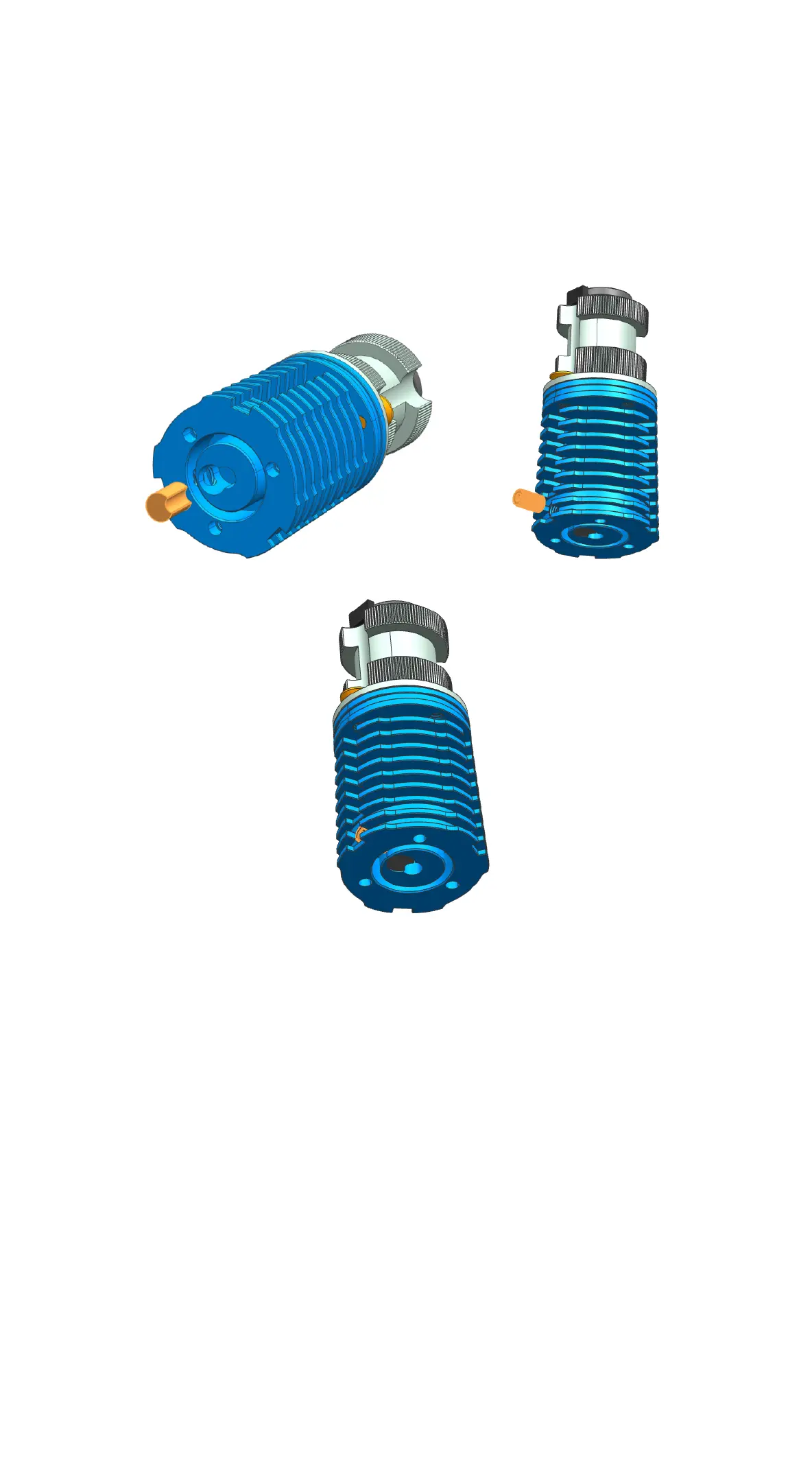

3: Insert the heatbreak fixation into the hole at the bottom of
the heatsink, and slightly tighten the heatbreak fixation using
the M3x6 grub screw, so that the heatbreak fixation does not
fall out on its own.
4: Use the three M1.6x9.3 titanium screws to fix the heat-
block in place. Please ensure that you tighten the 3 titanium
screws evenly so that you do bend or damage the thin heat-
break. Ideally tighten the three screws with 0.1Nm of torque.
The gap between the heatblock and the heatsink should now
be about 2.5mm.
