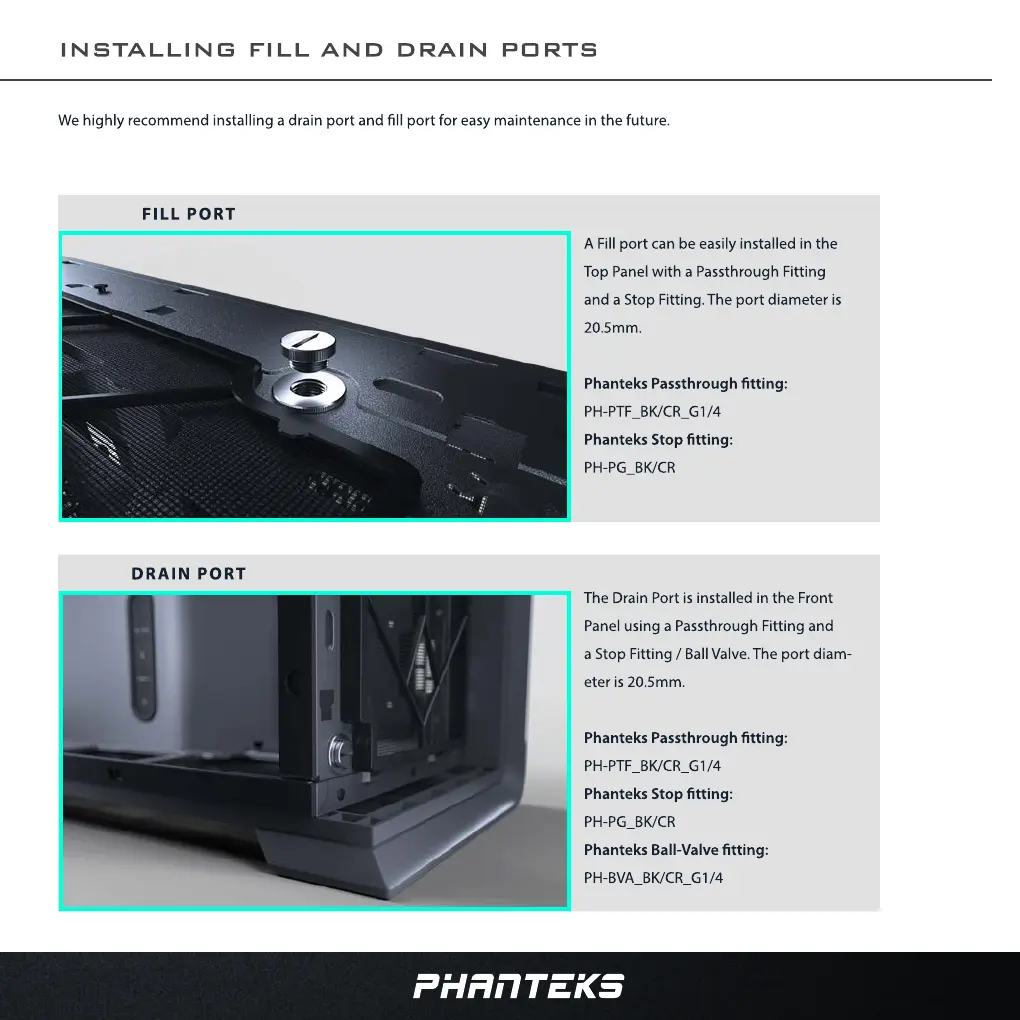

INSTALLING FILL AND DRAIN PORTS
We highly recommend installing a drain port and fill port for easy maintenance in the future.
FILL PORT
.53
DRAIN PORT
A Fill port can be easily installed in the
Top Panel with a Passthrough Fitting
and a Stop Fitting. The port diameter is
20.5mm.
Phanteks Passthrough fitting:
Phanteks Stop fitting:
PH-PG_BK/CR
The Drain Port is installed in the Front
Panel using a Passthrough Fitting and
a Stop Fitting / BallValve.The port diam-
eter is 20.5mm.
Phanteks Passthrough fitting:
PH-PTF BK/CR GI/4
Phanteks Stop fitting:
PH-PG_BK/CR
Phanteks Ball-Valve fitting:
