ENT HOO 719

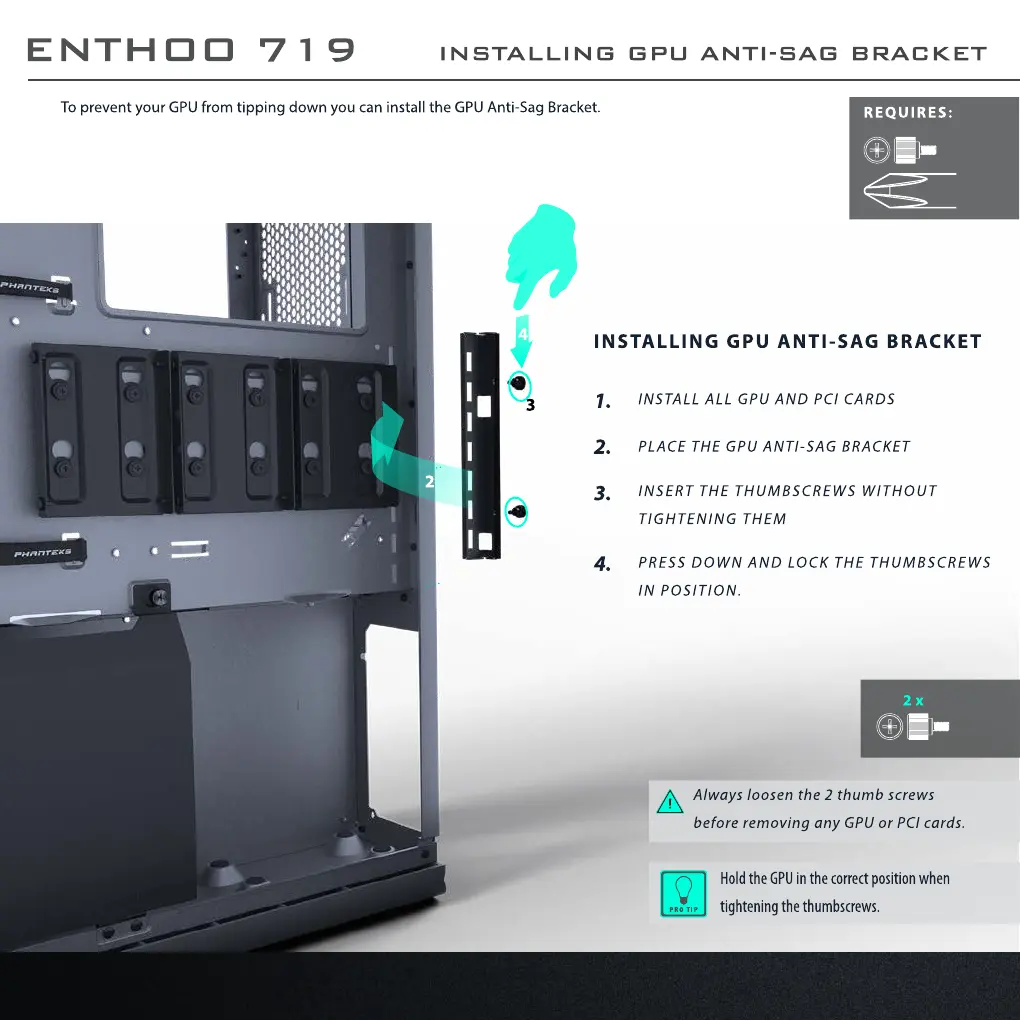

INSTALLING GPU ANT I-SAG
To prevent your GPUfrom tipping down you can install the GPUAnti-Sag Bracket.
BRACKET
REQUIRES:
INSTALLING GPU ANTI-SAG BRACKET
3
2.
3.
4.
INSTALL ALL GPU AND PCl CARDS
PLACE THE GPU ANTI-SAG BRACKET
INSERT THE THUMBSCREWS WITHOUT
TIGHTENING THEM
PRESS DOWN AND LOCK THE THUMBSCREWS
IN POSITION.
Always loosen the 2 thumb screws
before removing any GPU or PCl cards.
HoldtheGPUinthe correctpositionwhen
tighteningthethumbscrews.
