INSTALLATION GUIDE | www.phanteks.com
INSTALLATION GUIDE
Installationsanleitung | Guide d’installation | Guía de instalación | 安装指南
VERSION 1.0
SSD HDD
HARDWARE INSTALLATION
A B
9x
Motherboard
Screw
SSD Screw
4x
Case Screw
1x
HDD Screw
4x
PSU Screw
4x
03
Hardware-Installation | Installation du matériel | Instalación de hardware | 硬件安装
MOTHERBOARD
01
Hauptplatine | Carte mère | tarjeta madre | 主板
STORAGE LAYOUT
03
Lagerlayout | Disposition de stockage | Diseño de
almacenamiento | 硬盘螺丝布局
BOTTOM FAN BRACKET
04
Untere Lüfterhalterung | Support de ventilateur inférieur |
Soporte inferior del ventilador | 底风扇支架
GPU FAN BRACKET
05
GPU-Lüfterhalterung | Support de ventilateur GPU |
Soporte de ventilador GPU | 显卡支撑架
STORAGE | 2.5” SSD
Speicher 2.5-Zoll-SSD | Stockage SSD 2.5” |
Almacenamiento SSD de 2.5” | 2.5” SSD硬盘位
STORAGE | 3.5” HDD
Speicher 3.5-Zoll-HDD | Stockage HDD.5” | Almacenamiento
HDD de 3.5” | 2.5” HDD硬盘位
POWER SUPPLY
02
Stromversorgung | Source de courant | Fuente de alimentación | 电源
Thumb Screw
1x
2x
Long Thumb
Screw
1 2
2
3
1

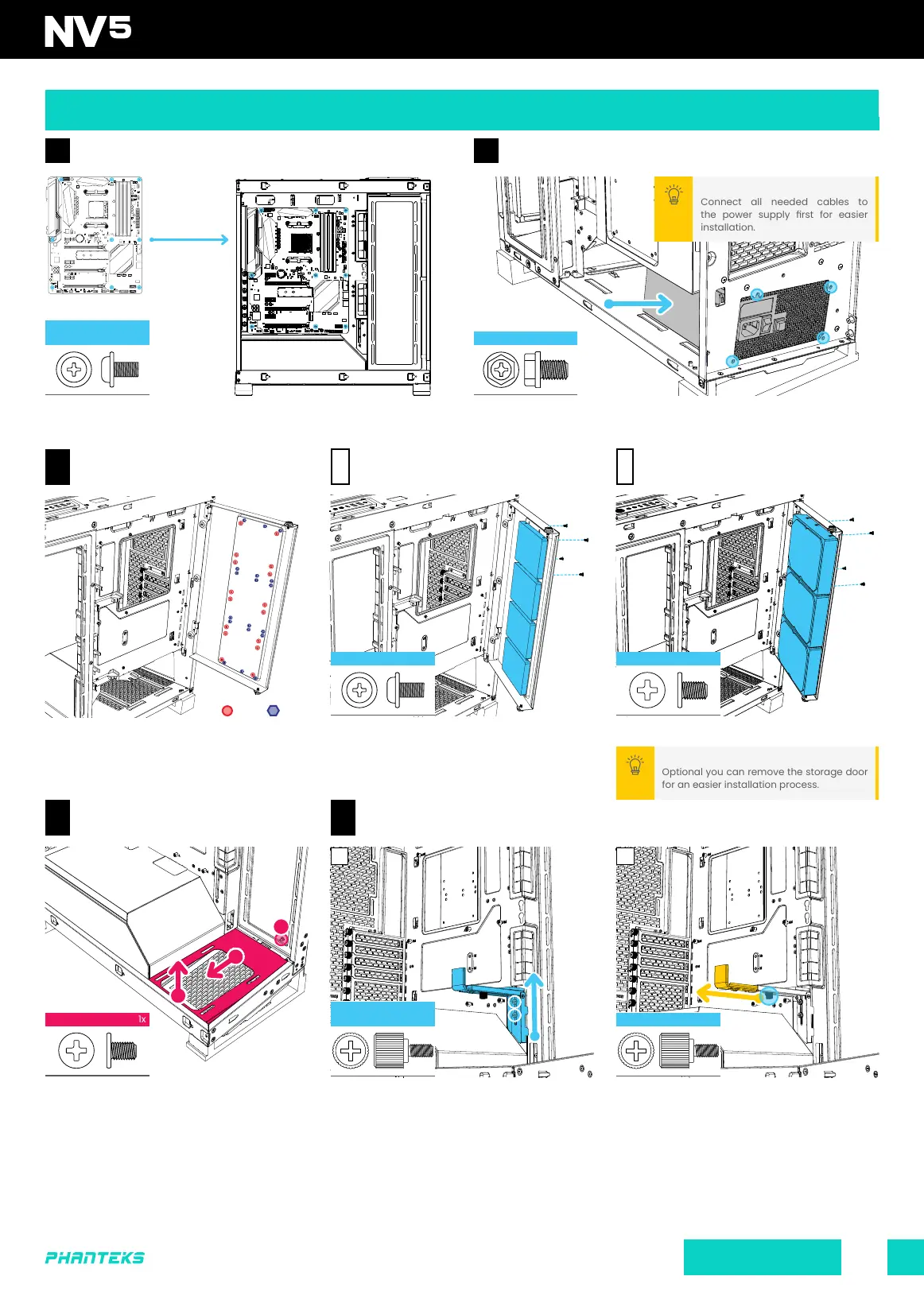

Install the ATX motherboard using 9x motherboard screws. Use the ‘stand-off
removal tool’ to reposition the stand-offs for Micro-ATX Motherboards.
Insert the Power supply from the side into the chassis.
Secure with 4x PSU screws.
The NV5 comes with a storage door that is behind the
right side panel. It supports up to A 4x 2.5” SSDs or B 3x
3.5” HDDs.
Secure each SSD with 4x SSD screws. Secure each HDD with 4x HDD screws.
Remove the case screws on the oposite side. Slide it
to release.
Secure the GPU Support Bracket with 2x long thumb
screws.
Adjust the GPU Support bracket to secure the GPU in
place.
Connect all needed cables to
the power supply rst for easier
installation.
PRO TIP
Optional you can remove the storage door
for an easier installation process.
PRO TIP
To Next Page
