Phase Linear 4000 Series Service Manual

Default Icon
51 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page

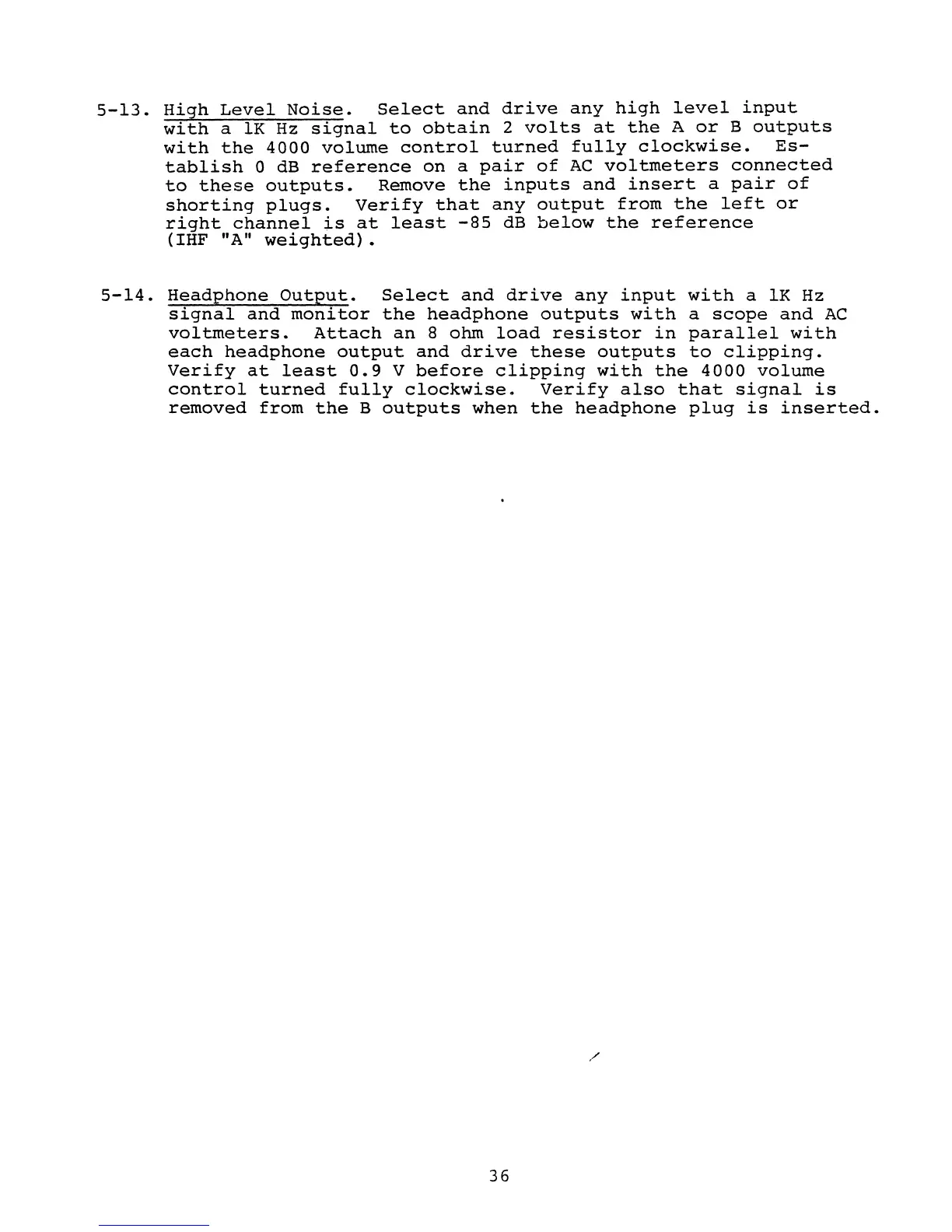

Page #37 background imageLoading...
Page #37 background image

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Phase Linear 4000 Series and is the answer not in the manual?

Phase Linear 4000 Series Specifications

General IconGeneral
TypePreamplifier
Total harmonic distortion0.03%
Frequency response10Hz - 50kHz (±0.5dB)
Gain (MM)60dB
Gain (line)20dB
Signal to noise ratio (MM)80dB
Output (max)10V
