After returning to MAIN CONTROLS . . .
...to continue to ADJUST SIDE ANGLES, start with step 5 under ADJUST SIDE
ANGLES and follow the directions.
...to exit completely, press the button twice.
...to adjust only the BALANCED pincushion, follow steps 1 - 4 above, then press the
button, and follow steps 7 - 9.
ADJUST SIDE ANGLES
ADJUST SIDE ANGLES under ADJUST SHAPE allows you to adjust two of the five preset options. These
two options are TRAPEZOID and PARALLELOGRAM. Note: use these features only when the picture is not
square.

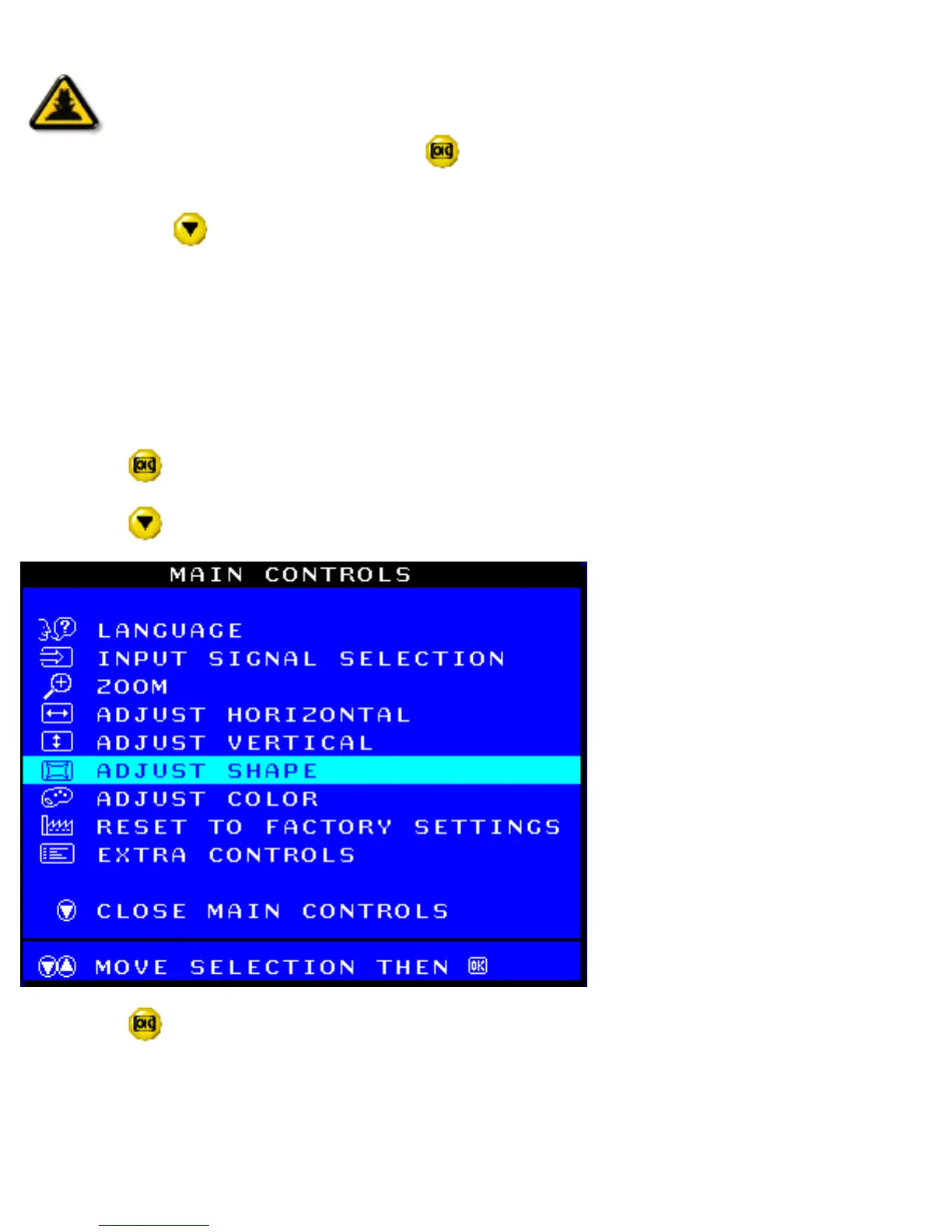

1) Press the
button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until ADJUST SHAPE is highlighted.
3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be
highlighted.
