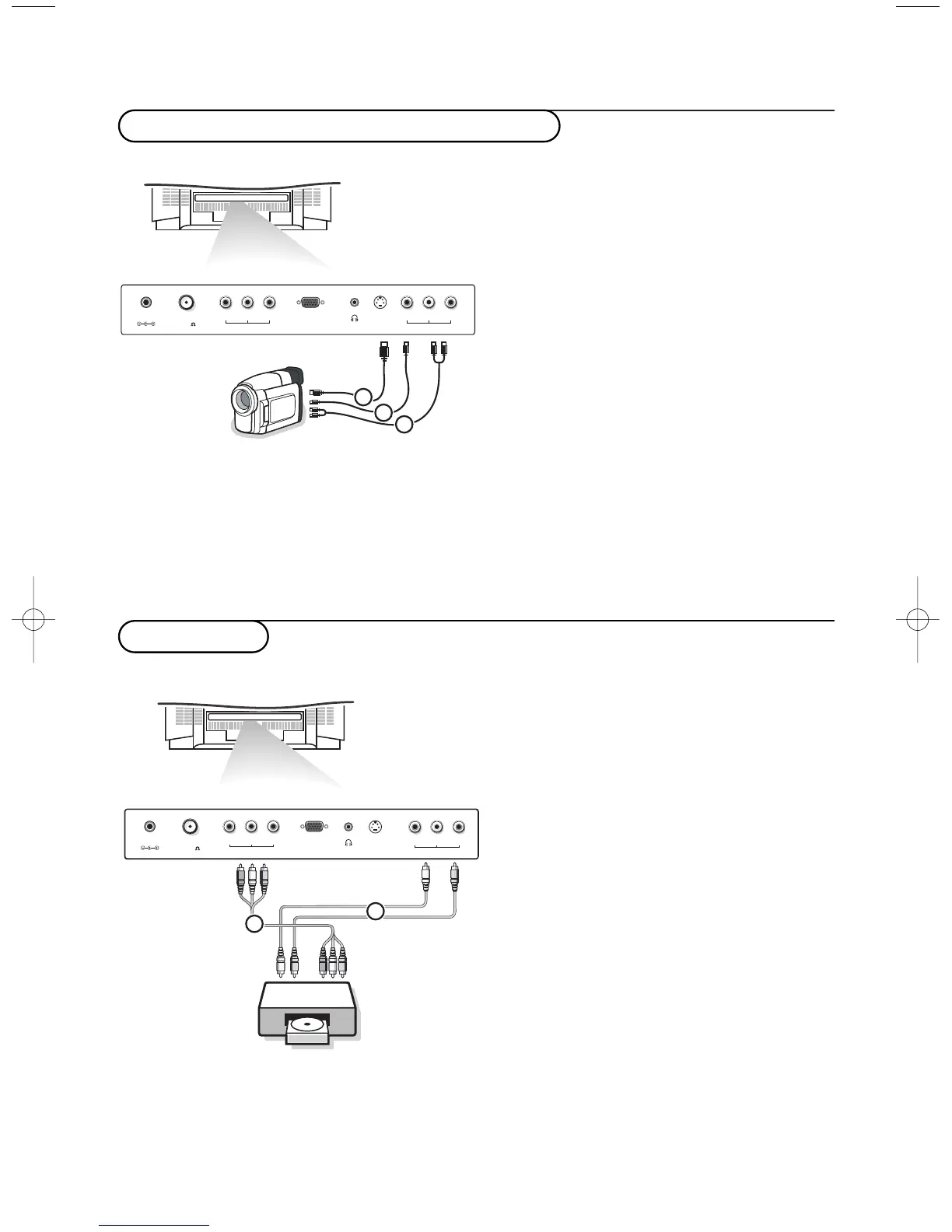

How to connect
& Connect your camera, camcorder,
videogame set, ... to the
VIDEO port 2
and
AUDIO L (MONO) 3 for mono
equipment.
é For stereo equipment also connect
AUDIO R 3.
S-VHS quality with an S-VHS camcorder is
obtained by connecting the S-VHS cables
with the
S-VIDEO input 1 and AUDIO
input 3.
How to use
& Select VIDEO or S-VIDEO in the Input
menu item of the setup menu, see p. 6.
é Turn on the external AV equipment.
Camera, camcorder,Video Game set, ...
3
2
1
x 75
DC 12V
ANT IN S-VIDEO
IN
PC INPUT
Y VIDEO
Pb
COMPONENT INPUT (480i)
Pr L
AV
RAUDIO
How to connect
& Connect the three separate component
video cables 1 to the DVD player’s
Y, Pb and Pr ports and to the Y, Pb and
Pr (480i) ports on the TV.
é Connect the audio cables 2 to the DVD
player’s
AUDIO L and R ports and to the
L (MONO) and R AUDIO AV ports on the
TV.
How to use
& Select COMPONENT in the Input menu
item of the setup menu, see p. 6.
é Turn on the DVD set.
DVD player
S-VIDEO
IN
VIDEO (MONO)
L
AV
R
AUDIO
x 75
DC 12V
ANT IN PC INPUTY
Pb
COMPONENT INPUT (480i)
Pr
DVD
2
1
