4. Input/Output Specification
4.1 Input Signal Connector
4.1.1 VGA Connector
Pin NO. Description Pin NO. Description
1. Red Video input 9. DDC +5V
2. Green Video input (SOG) 10. Logic GND
3. Blue Video input 11. Ground
4. Sense (GND) 12. Serial data line (SDA)
5. Cable Detect 13. H.sync /H + V.sync
6. Red Video Ground 14. V.Sync
7. Green Video Ground 15. Data Clock Line (SCL)
8. Blue Video Ground

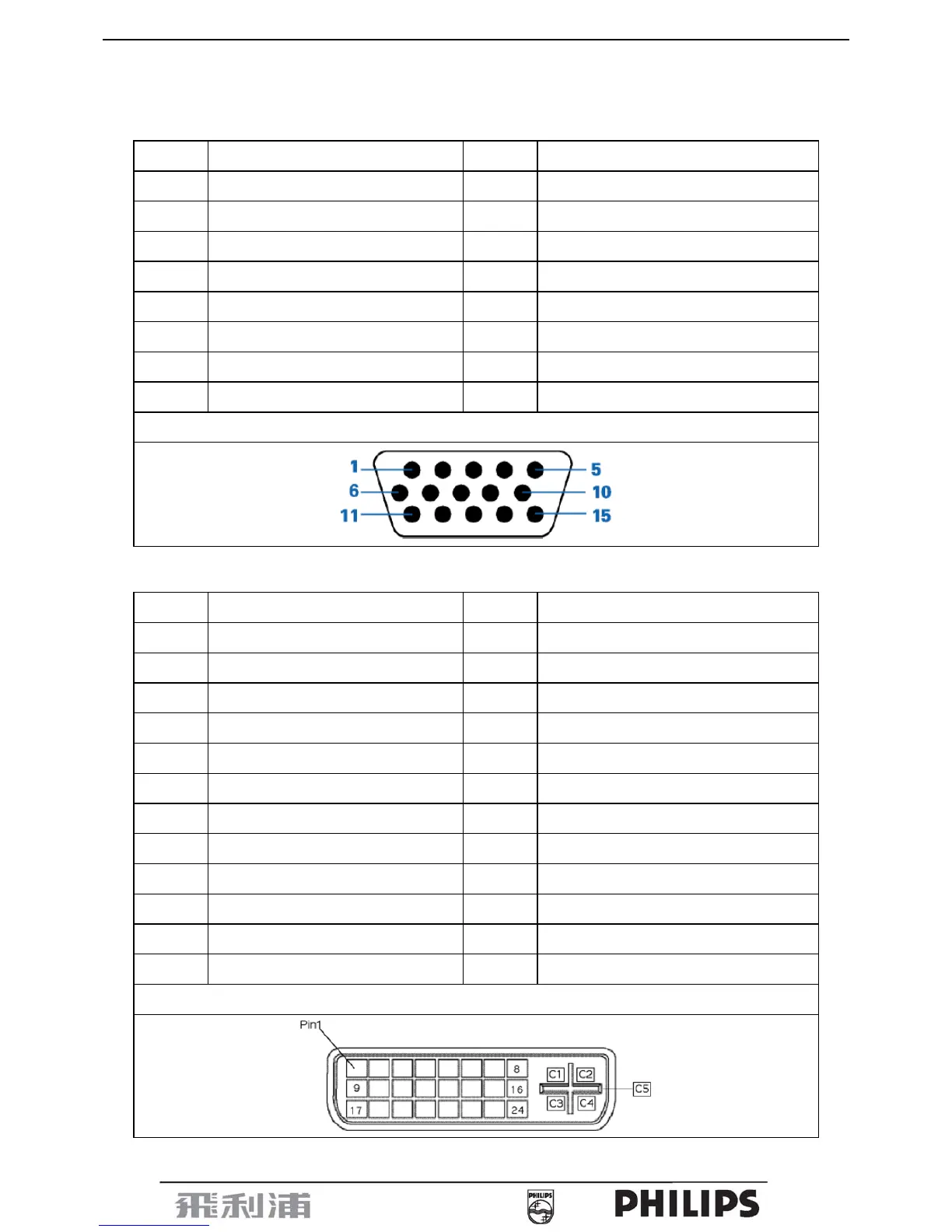

VGA Connector layout
4.1.2 DVI Connector
Pin NO. Description Pin NO. Description
1. T.M.D.S.Data2- 13. No connect
2. T.M.D.S.Data2+ 14. + 5V Power
3. T.M.D.S.Data2/4 Shield 15. Ground (for +5V)
4. No connect 16. Hot Plug Detect
5. No connect 17. T.M.D.S.Data0-
6. DDC Clock 18. T.M.D.S.Data0+
7. DDC Data 19. T.M.D.S.Data0/5 Shield
8. No connect 20. No connect
9. T.M.D.S.Data1- 21. No connect
10. T.M.D.S.Data1+ 22. T.M.D.S. Clock Shield
11. T.M.D.S.Data1/3 Shield 23. T.M.D.S. Clock +
12. No connect 24. T.M.D.S. Clock -
DVI Connector layout
