19” LCD Color Monitor 190V7
80
3.2.2 DVI Cable
The input signals are applied to the display through DVI-D cable.
Length: 1.8 M + 50/- 50 mm (fixed)
Connector type: DVI-D male with DDC2B pin assignments
White connector thumb-operated jack screws

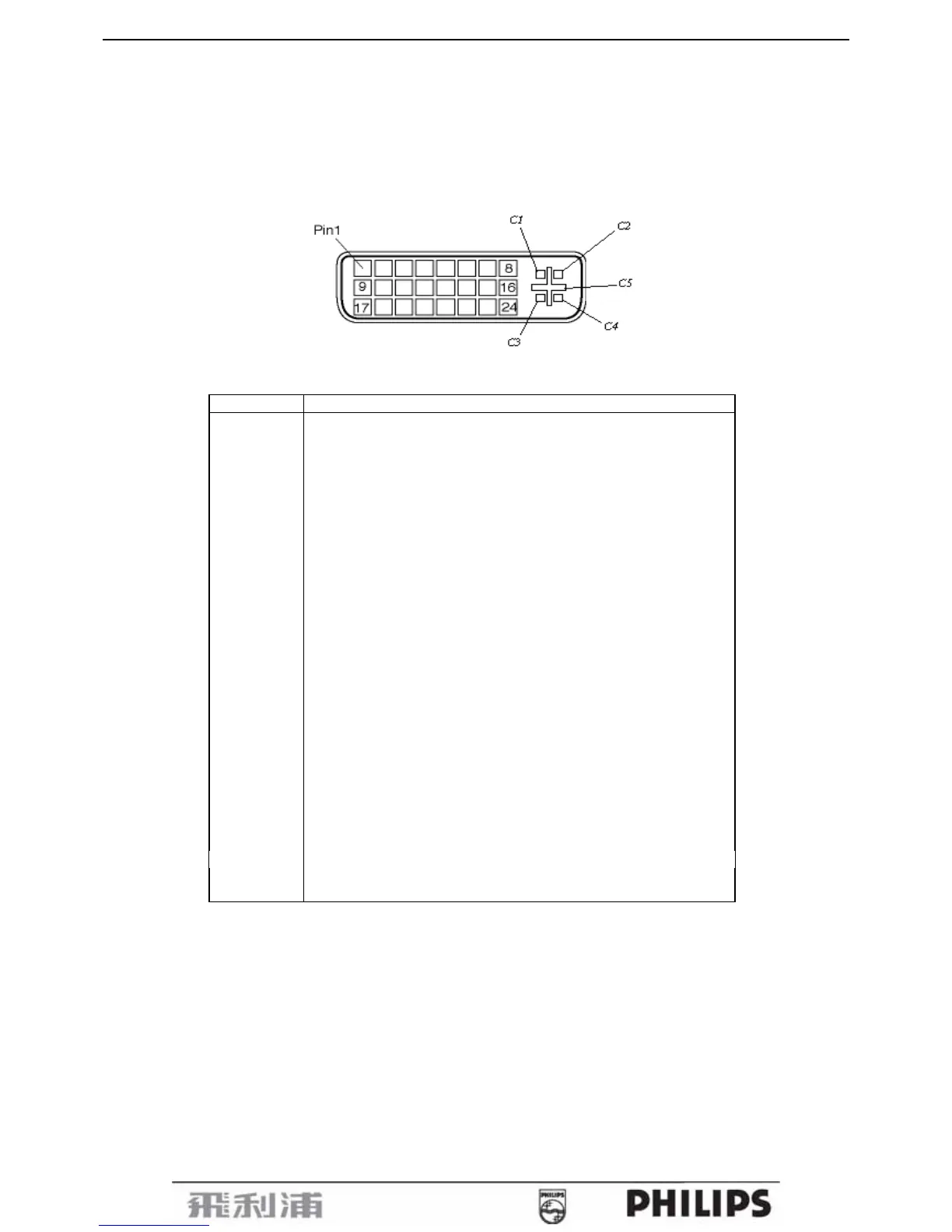

Pin assignment:
Note the mark “ * ” for DVI-I to Dsub only
Pin No. Description
1 TMDS data2-
2 TMDS data2+
3 TMDS data2 shield
4 NC
5 NC
6 DDC clock
7 DDC data
8 * Analog V-sync
9 TMDS data1-
10 TMDS data1+
11 TMDS data1 shield
12 NC
13 NC
14 +5V
15 Ground(return for +5V and H/V-sync)(Cable Detect)
16 Hot plug detect
17 TMDS data0-
18 TMDS data0+
19 TMDS data0 shield
20 NC
21 NC
22 TMDS clock shield
23 TMDS clock+
24 TMDS clock-
C1 * Analog R
C2 * Analog G
C3 * Analog B
C4 * Analog H-sync
C5 * Analog GND (Analog R, G, B return)
