Physical Specifications
• Tilt -5° ~ 20°
• Power supply 100 ~ 240 VAC, 50/60 Hz
• Power consumption <35 W* (typ.)
• Temperature
0° C to 40° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hours (CCFL 50K hours)
• Cabinet color 191EW9FB: Black
RETURN TO TOP OF THE PAGE

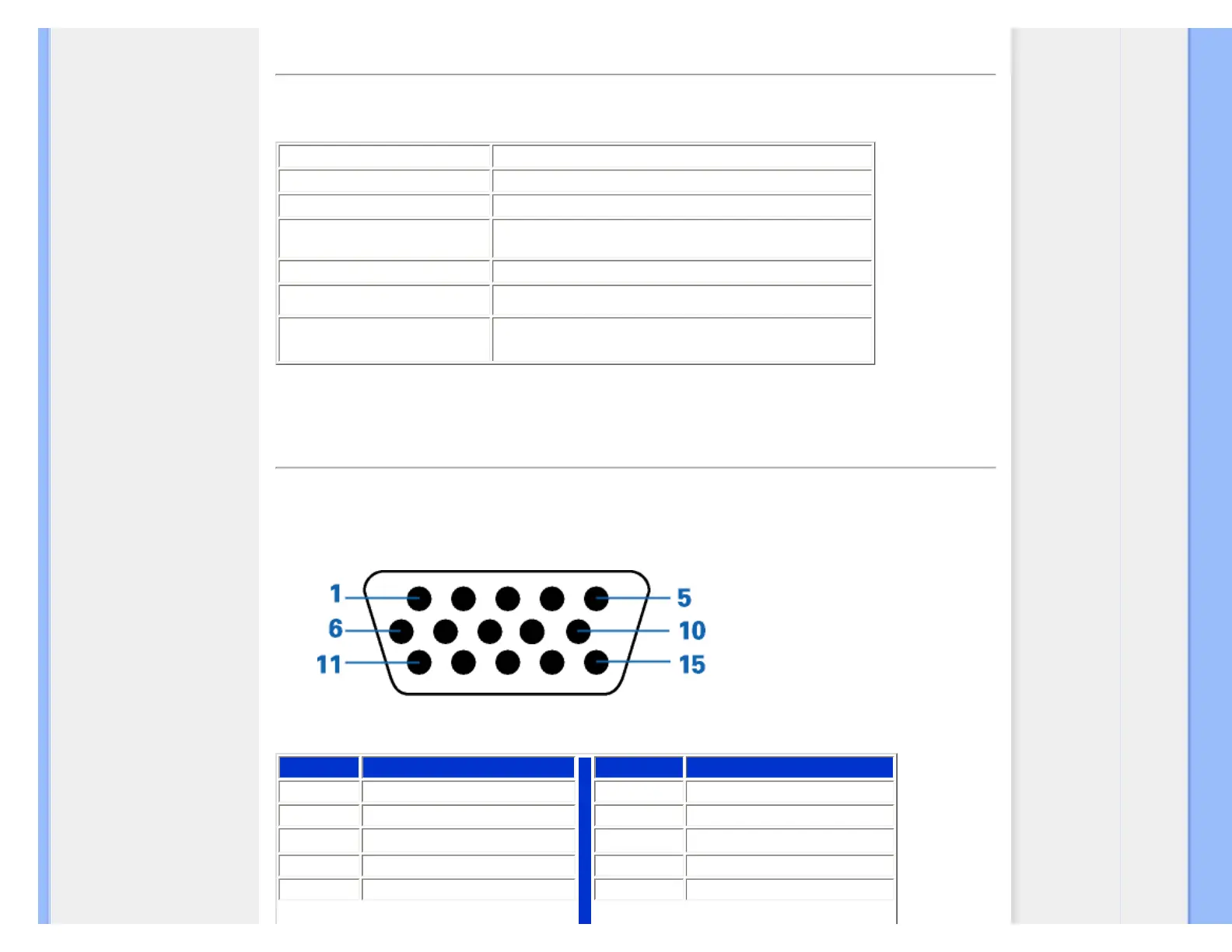

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable:
Pin No.
Assignment
Pin No.
Assignment
1
Red video input
9
DDC + 5 V
2
Green video input/SOG
10
Logic ground
3
Blue video input
11
Ground
4
Sense (GND)
12
Serial data line (SDA)
5
Cable detect (GND)
13
H. Sync / H+V. Sync
