9 Connect devices
This section describes how to connect various devices with different
connectors and supplements examples provided in the Quick Start
Guide.

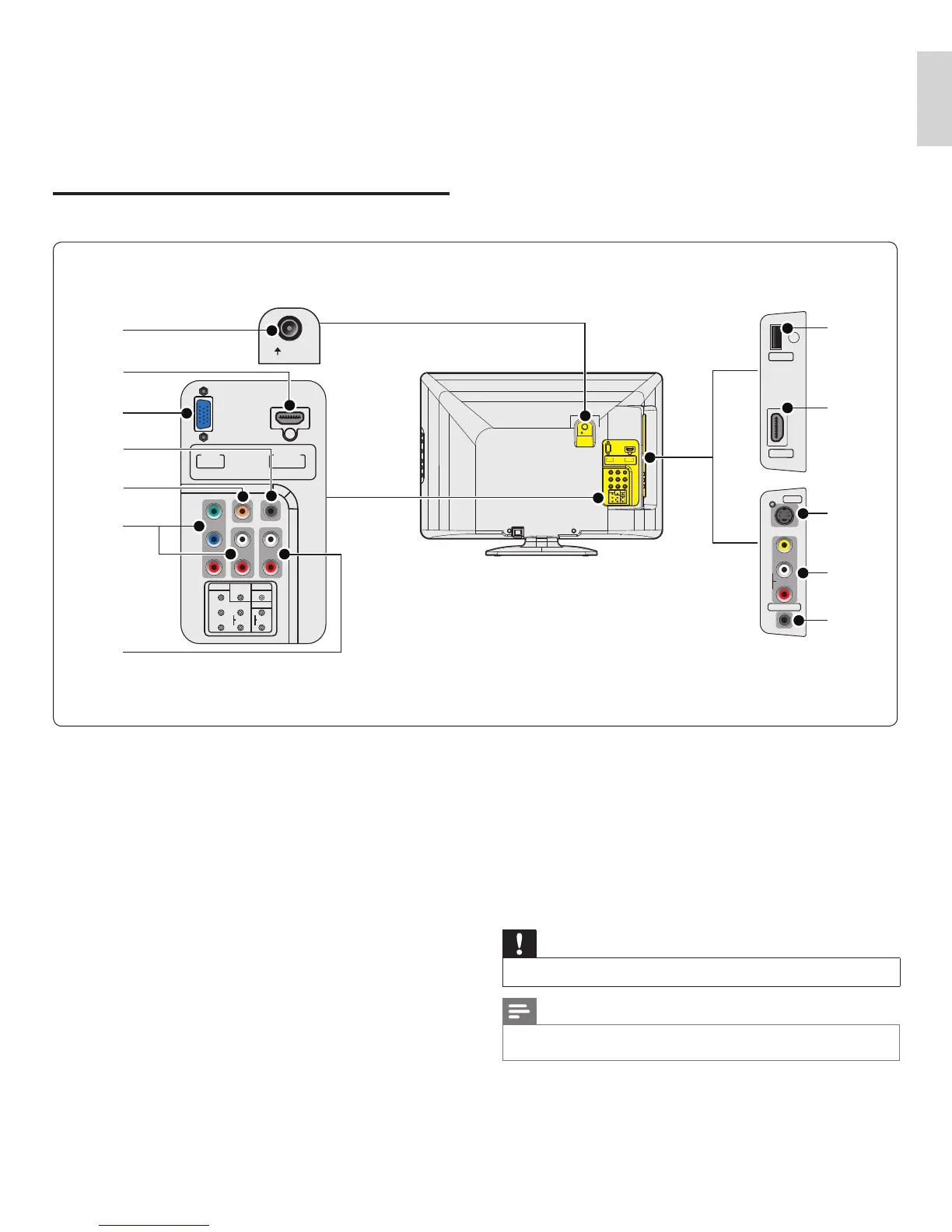

Connection overview
PC IN
RGB
HDMI IN
HDMI 1
ANT. IN
COMPONENT
PC-IN
AUDIO
AUDIO
HDMI 1-IN
DIGITAL
AUDIO OUT
(COAXIAL)
L
R
AUDIO
LPb
Y
Pr
R
USB
HDMI 2
VIDEO
L
R
S-VIDEO
AUDIO
HEAD PHONE
PC IN
RGB
HDMI IN
HDMI 1
COMPONENT
PC-IN
AUDIO
AUDIO
HDMI 1-IN
DIGITAL
AUDIO OUT
(COAXIAL)
L
R
AUDIO
LPb
Y
Pr
R
ANT. IN
VIDEO
f
c
a
h
i
k
l
j
e
g
d
b
a Antenna input jack
Signal input from an antenna, cable or satellite.
b HDMI 1 input jack
Digital audio and video input from high defi nition digital devices
such as Blu-ray players.
c PC input jack
VGA cable connection for PC.
d Audio input jack for PC connection
Mini-plug audio cable connection for PC.
e Digital audio output jack
Digital audio output to home theaters and other digital audio
systems.
f Component video and audio input jack
Video input from analog devices such as DVD, receiver, game
console, etc. This connector is used with audio input.
g Audio input jack for HDMI 1
h USB terminal
Data input from USB storage devices only. Do not connect any
device to this terminal such as; digital camera, keyboard, mouse, etc.
i HDMI 2 input jack
Second HDMI in connector.
j S-Video input jack
S-Video input connector to be used with Audio L/R connectors for
camcorder, game console, etc. When you use the S-Video for video
signals, do not use Composite video for video signals.
k Composite video and audio input jack
Video input for analog devices such as DVD, camcorder, game
console, etc. To be used with audio input.
l Headphone jack
Headphone connection for personal listening.
Caution
• Disconnect the AC power cord before connecting devices.
Note
• Different types of connectors may be used to connect a device to your TV, depending
on availability and your needs.
