3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield
19
T.M.D.S. Data0/5 Shield
4 No connect 12 No connect
20
No connect
5 No connect 13 No connect
21
No connect
6 DDC Clock 14 +5V Power
22
T.M.D.S. Clock Shield
7 DDC Data 15 Ground (for +5V)
23
T.M.D.S. Clock+
8 No connect
16
Hot Plug Detect
24
T.M.D.S. Clock-

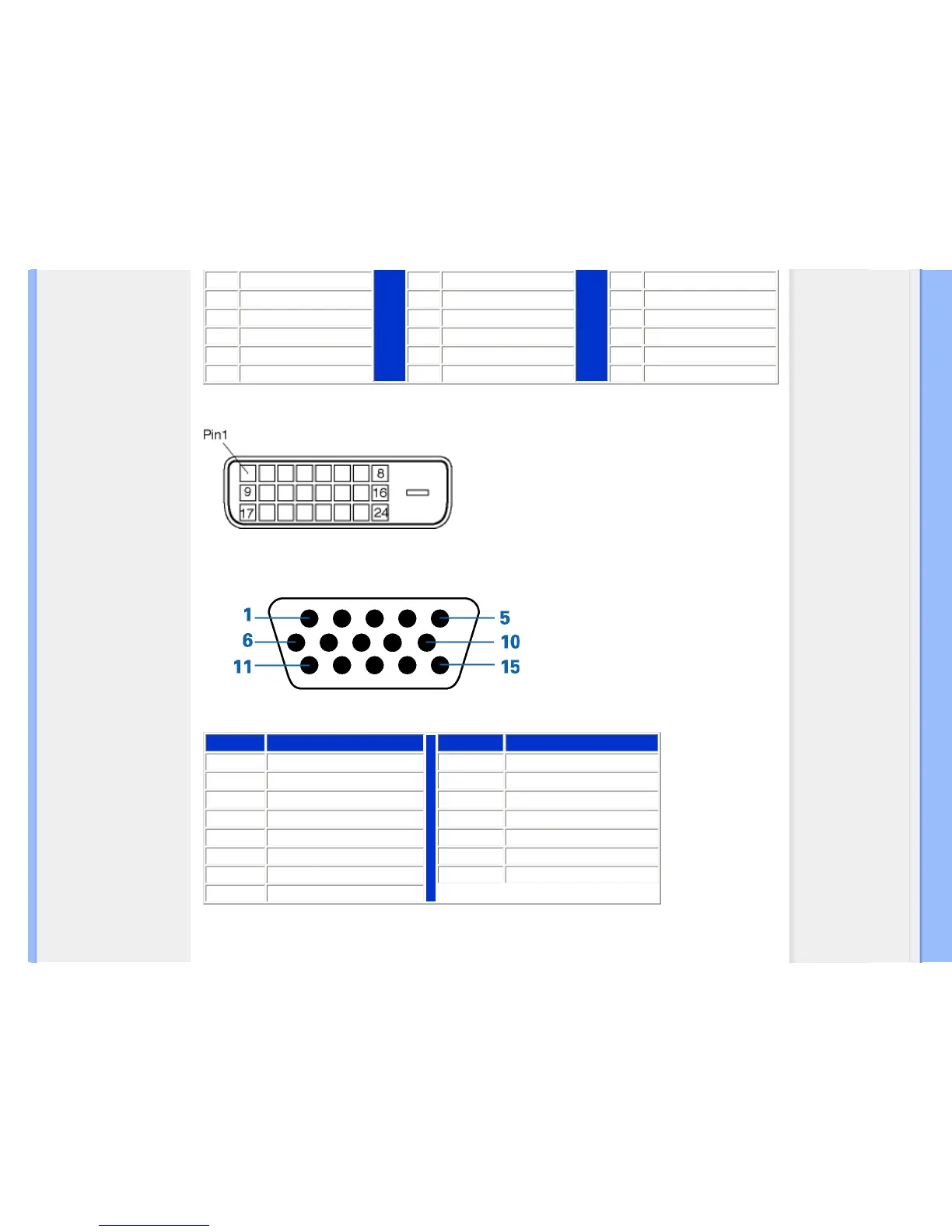

2.The 15-pin D-sub connector (male) of the signal cable:
Pin No.
Assignment
Pin No.
Assignment
1
Red video input
9
DDC + 5 V
2
Green video input/SOG
10
Logic ground
3
Blue video input
11
Ground
4
Sense (GND)
12
Serial data line (SDA)
5
Cable detect (GND)
13
H. Sync / H+V. Sync
6
Red video ground
14
V. Sync
7
Green video ground
15
Data clock line (SCL)
8
Blue video ground
