Philips 22DC501/00 - Page 3

PCS 59 708

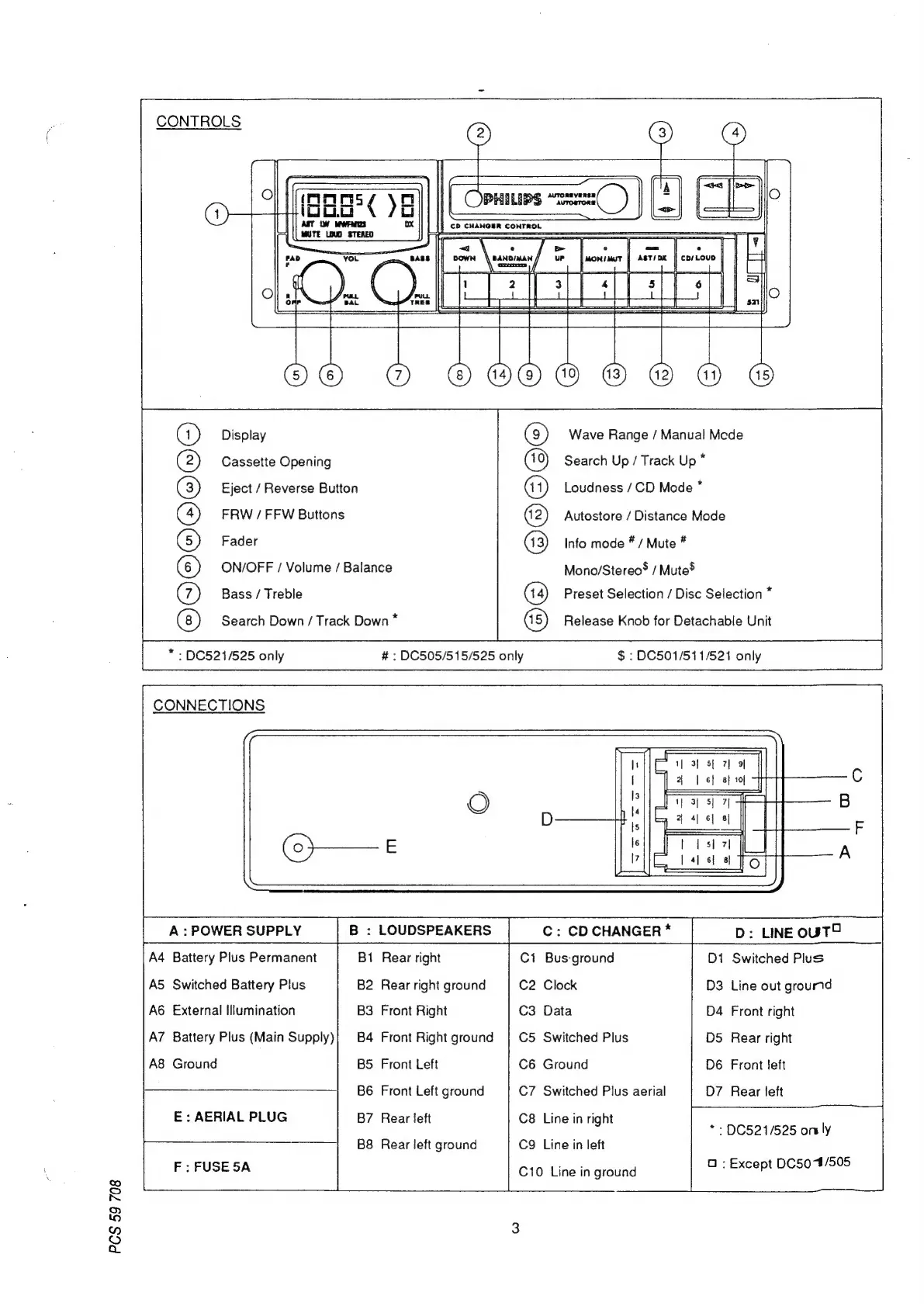

CONTROLS
\ Banosman /
imine] [ote] |
Eel
=
Display
Cassette Opening
FRW / FFW Buttons
Fader
Bass / Treble
OCOOOOORO
* :DC521/525 only
CONNECTIONS
A : POWER SUPPLY
A4 Battery Plus Permanent
AS Switched Battery Plus
A6 External Illumination
A7 Battery Plus (Main Supply)
A8 Ground
E: AERIAL PLUG
F:FUSE 5A
Eject / Reverse Button
ON/OFF / Volume / Balance
Search Down / Track Down *
# : DC505/515/525 only
Wave Range / Manual Mcde
Search Up / Track Up *
Loudness / CD Mode *
Autostore / Distance Mode
Info mode * / Mute *
Mono/Stereo® / Mute®
Preset Selection / Disc Selection *
Release Knob for Detachable Unit
$ : DC501/511/521 only
B:
B
B2
B3
B4
B5
B6
B7
B8
pare
eeee
“Late stl 4
eee w
ee HH
are
EF ials af
LOUDSPEAKERS
Rear right
Rear right ground
Front Right
Front Right ground
Front Left
Front Left ground
Rear left
Rear left ground
C: CD CHANGER * D: LINEOUT®
C1 Bus-ground D1 Switched Plus
C2 Clock D3 Line out grournd
C3 Data D4 Front right
C5 Switched Plus DS Rear right
C6 Ground D6 Front left
C7 Switched Plus aerial D7 Rear left
Sal pad * DC521/525 only
C9 Line in left
: 4/505
C10 Line in ground Er except G0
