DISASSEMBLY
1. Remove 9 screws (A) securing the
cabinet.
2. Remove the cabinet with pushing
the front panel stopper.
3. Remove the front panel with
pushing the both bottom lid stopper.
4.Remove 2 screws @) and the
connector (©) Connect P.C.B. can
be removed.
5. Remove the cushion.
6. Remove the damper.
7. If remove the spring () installed
between the mechanism and the
chassis, also mechanism can be
removed.
‘sy
Be

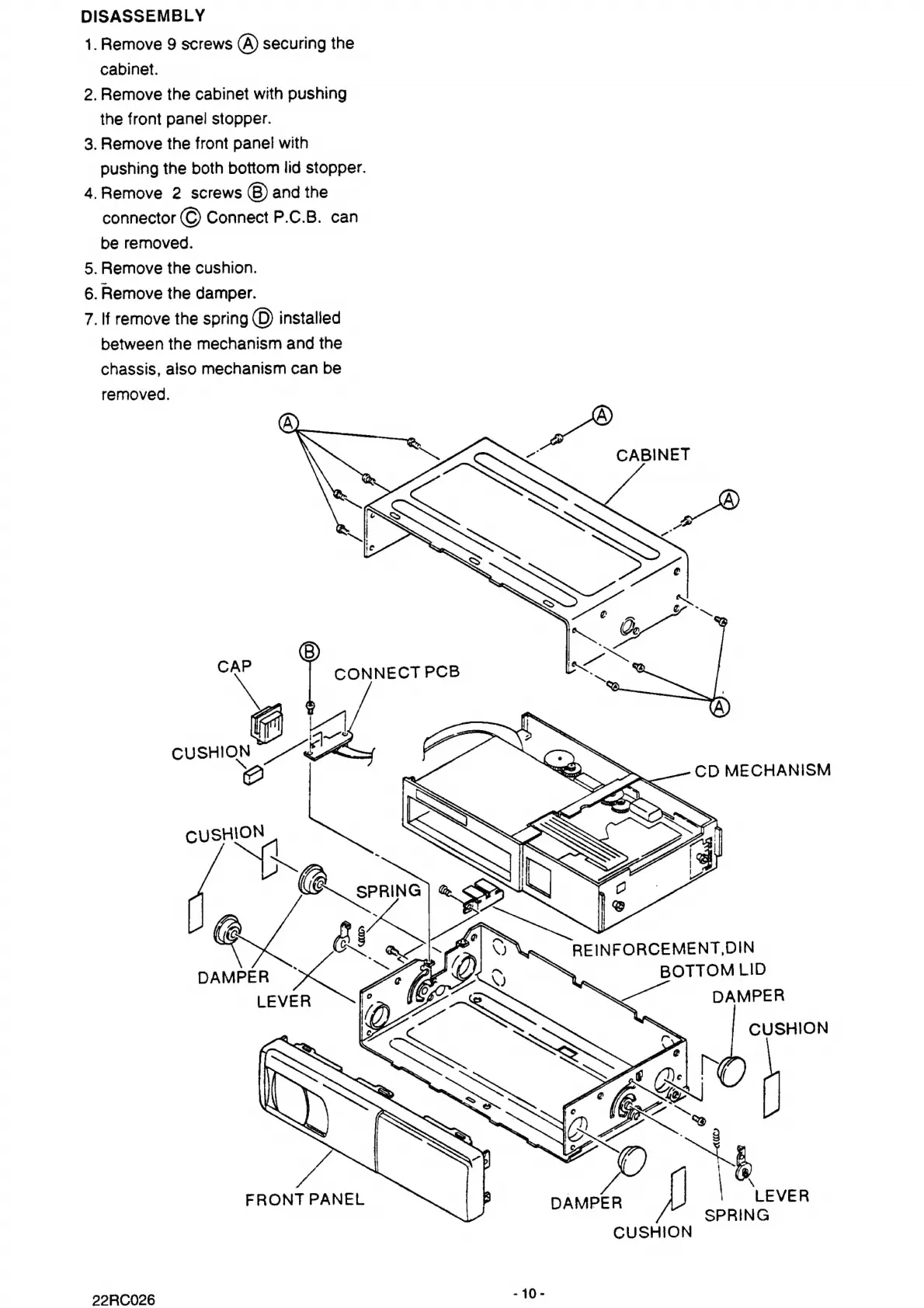

22RC026
REINFORCEMENT,DIN
Se
BOTTOM
LID
DAMPER
CUSHION
