Philips 22RC026/00 - CD Mechanism Disassembly; Feed Motor Removal; Elevator Motor Removal

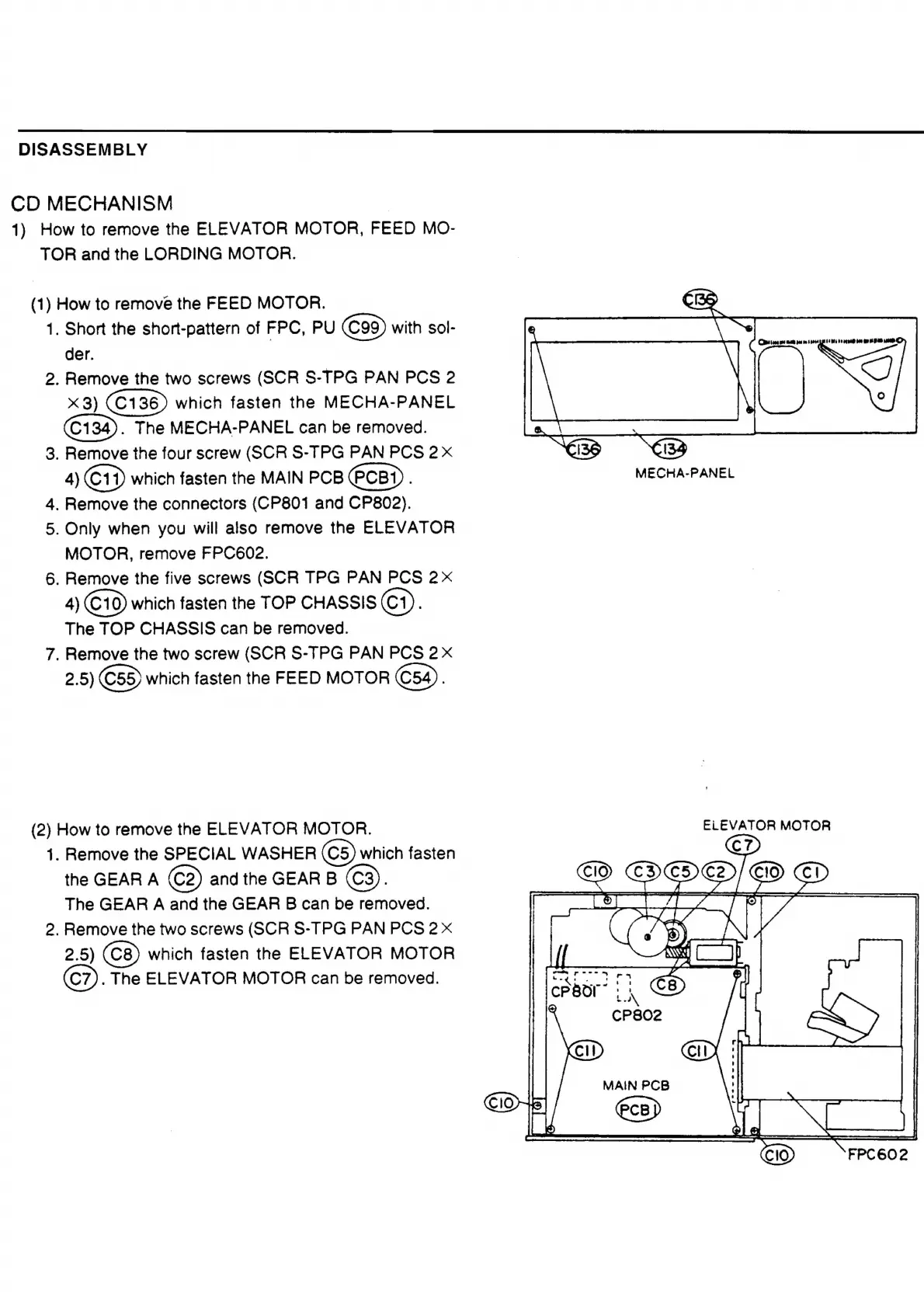

DISASSEMBLY
CD MECHANISM |
1) How to remove the ELEVATOR MOTOR, FEED MO-
TOR and the LORDING MOTOR.
(1) How to remove the FEED MOTOR.
1. Short the short-pattern of FPC, PU with sol-
der.
2. Remove the two screws (SCR S-TPG PAN PCS 2
x3) which fasten the MECHA-PANEL
(134). The MECHA-PANEL can be removed.
3. Remove the four screw (SCR S-TPG PAN PCS 2x
4) ©1}) which fasten the MAIN PCB |
4. Remove the connectors (CP801 and CP802).
5. Only when you will also remove the ELEVATOR
MOTOR, remove FPC602.
6. Remove the five screws (SCR TPG PAN PCS 2x
4) (10) which fasten the TOP CHASSIS C71).
The TOP CHASSIS can be removed.
7. Remove the two screw (SCR S-TPG PAN PCS 2X
2.5) (C55) which fasten the FEED MOTOR €54).
(2) How to remove the ELEVATOR MOTOR.
1, Remove the SPECIAL WASHER (C5) which fasten
the GEAR A (2) and the GEAR B (3).
The GEAR A and the GEAR B can be removed.
2. Remove the two screws (SCR S-TPG PAN PCS 2 x
2.5) (C8) which fasten the ELEVATOR MOTOR
(7). The ELEVATOR MOTOR can be removed.
MECHA-PANEL
ELEVATOR MOTOR
