Philips 32HFL5870D/10 - Wiring Diagram 32 with Smartcard (ME8)

EN 68Q522.1HE LA 9.
Block Diagrams
2009-Dec-04
Wiring Diagram 32" with Smartcard (ME8)
18680_401_090811.eps
091203
LCD DISPLAY (1004)
8303
8304
1M99 (B02B)
8. GND
7. BACKLIGHT-BOOST
6. BACKLIGHT-OUT
5. LAMP-ON-OUT
4. GND
3. GND
2. +12VD
1. +12VD
1M95 (B02B)
11. -AUDIO-POWER
10. GNDSND
9. +AUDIO-POWER
8. +12V
7. +12V
6. +12V
5. GND
4. GND
3. GND
2. STANDBY
1. +3V3-STANDBY
CN4
1. 3.3VSB
2. PSON
3. SGND
4. SGND
5. SGND
6. 12V
7. 12V
8. 12V
9. 12VA
10. SGND2
11. -12VA
CN5
1. 12V
2. 12V
3. SGND
4. SGND
5. BL_ON_OFF
6. EXT_PWM
7. BOOST
8. BL_GND
1D10 (B10A)
9. KEYBOARD
8. +5V
7. KEYBOARD
6. LED1
5. +3V3-STANDBY
4. LED2
3. RC
2. GNDSND
1. LIGHT-SENSOR
1D12 (B10A)
4. RIGHT-
3. GNDSND
2. GNDSND
1. LEFT+
CN1 2. L 1. N
8308

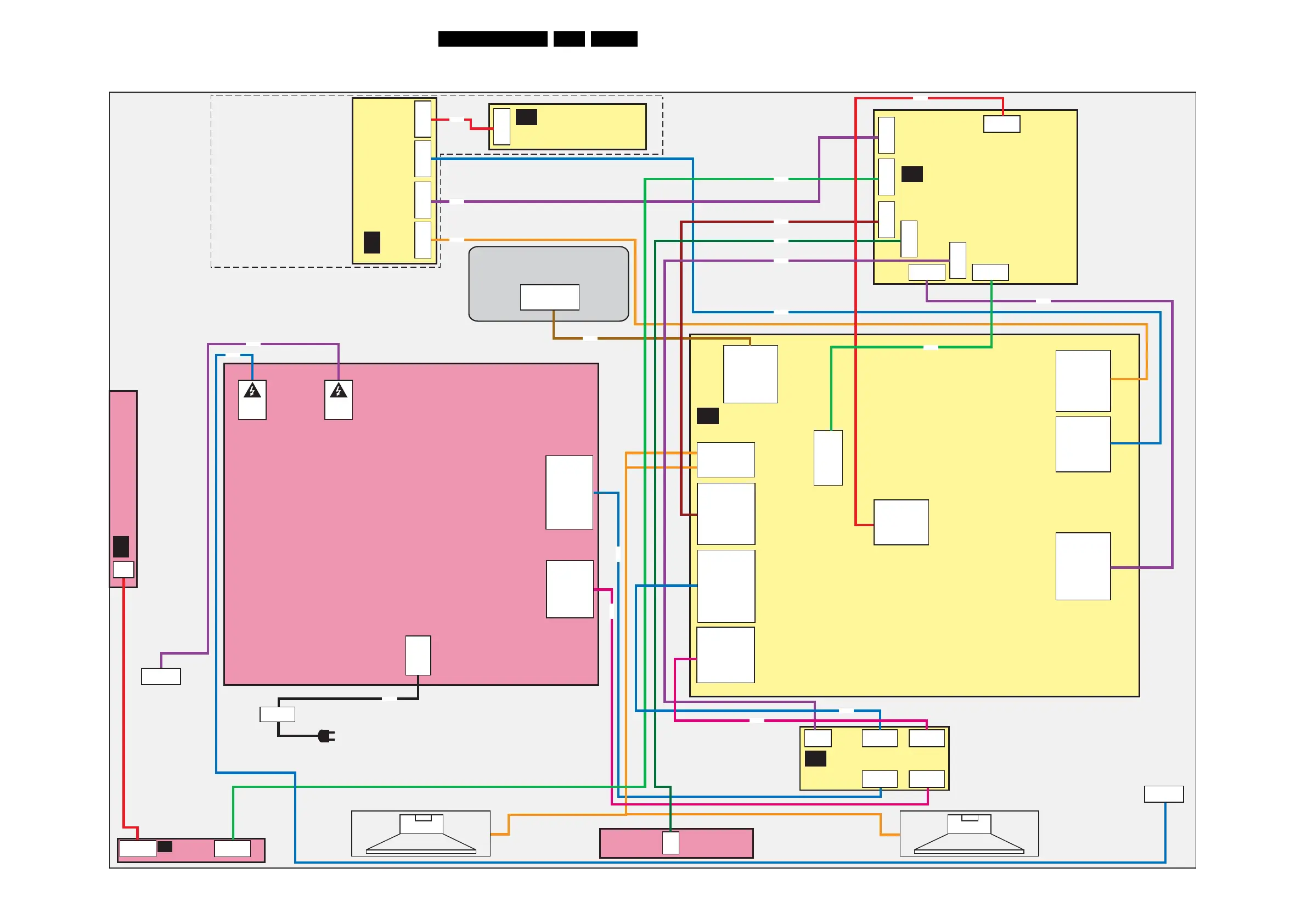

WIRING DIAGRAM 32" WITH INTEGRATED SMARTCARD SLOT (STYLING ME8)
1G50
(B06A)
41. VDISP
40. VDISP
39. VDISP
38. VDISP
... 2. SCL-I2C4-DISP
1. SDA-I2C4-DISP
LVDS INPUT
30P
8G50
SSB
(1150)
B
RIGHT SPEAKER
(5213)
+ -
LEFT SPEAKER
(5213)
+ -
INLET
MAIN POWER SUPPLY
MOD IPB 32 PLHL-T827C B
(1005)
1R09 (B07D)
1. FRONT-Y_CVBS
2. FRONT-C
3. GND
4. AUDIO-IN5-L
5. AUDIO-IN5-R
6. N.C.
7. GND
8. AUDIO-OUT-R
9. AUDIO-OUT-L
1R08 (B07D)
1. GND
2. RXD-BOLT-ON
3. TXD-BOLT-ON
4.
5. SCL-SSB
6. SDA-SSB
7. RC
8. AV1-STAT US
9. STANDBY
10 CVBS-OUT-SC1-ITV
1R07 (B07D)
1. SC1-B
2. SC1-G
3. SC1-R
4. AV1-BLK-BO
5. GND
6. AP-SCART-OUT-L
7. AP-SCART-OUT-R
8. GND
1HV1
(B04M)
1. ADAC(3) 2. GND 3. ADAC(4)
SYSTEM INTERFACE
SI
iBOARD
(1152)
HC
1207
(HC02)
14P
1109
(HC01)
9P
1110
(HC01)
8P
1208
(HC02)
5P
1209
(HC02)
3P
1205 (HC02)
10P
1108 (HC01)
3P
1102 (HC01)
6P
1100 7P
1103 8P
1101 14P
1104 9P
DC/DC CONVERTER
DC
1001 7P
CLOCK
(1151)
C1 5P
8HA1
8208
8R06
8209
8207
8R09
8109
8D11
8R07
INTEGRATED
SMARTCARD SLOT
(0169)
1305
11p
1302
11p
1303
3p
1304
8p
1301
8p
12V SWITCH PANEL
(1153)
SP
TO
BACKLIGHT
TO
BACKLIGHT
8204
8HV1
CN2 1. HV1 2. N.C. 3. HV1 CN3 1. HV2 2. N.C. 3. HV2
8316
8319
J2
3P
J1
3P
J3
9P
8R01
8R02
1HA1 (B04K)
1. HD-PR-PC-R
2. HD-Y-PC-G
3. HD-PB-PC-B
4. GND
5. H-SYNC-VGA
6. V-SYNC-VGA
KEYBOARD CONTROL (1114)
E
IR LED PANEL
(1112)
J
