28
j VIDEO 2 S-VIDEO (Side)
S-Video (side) input connector to be used with Audio L/R
connectors for camcorder, game console, etc. When you use the
S-Video (side) for video signals, do not use Composite video (side)
for video signals.
k Video 2 Composite video (Side)
Video input for analog devices such as DVD, camcorder, game
console, etc. To be used with audio input.
l USB
Data input from USB storage devices. USB memory only. Do
not connect any device to this terminal such as; digital camera,
keyboard, mouse, etc.
m HDMI 2 input jack
Second HDMI in connector.
Caution
• Disconnect the AC power cord before connecting devices.
Note
• Different types of connectors may be used to connect a device to your TV, depending
on availability and your needs.

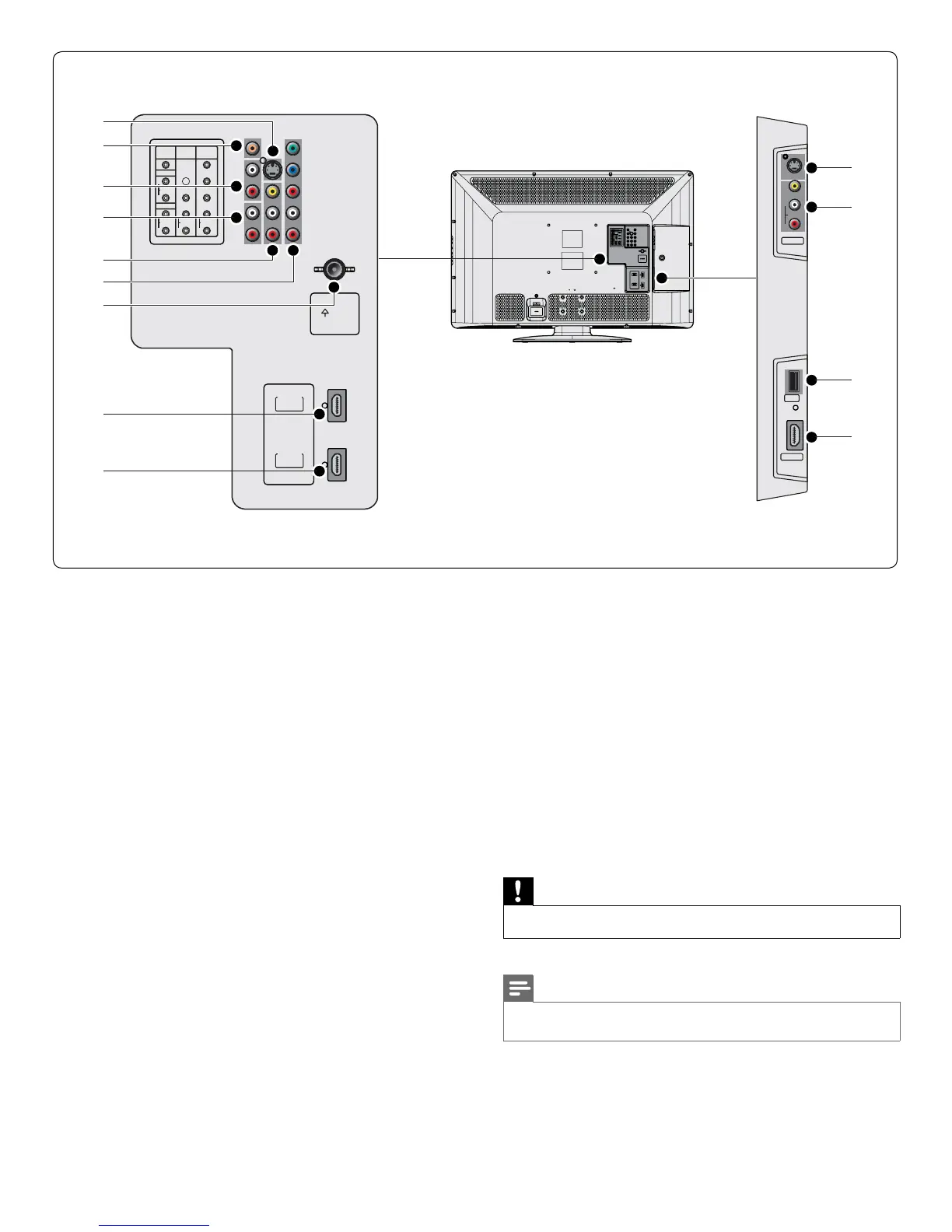

HDMI 2
USB
S-VIDEO
VIDEO
AUDIO
L
R
VIDEO 2
HDMI IN
HDMI 1
HDMI IN
HDMI 3
ANT. IN
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
AUDIO
L
R
Pr
Pb
Y
COMPONENT
VIDEO 1
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI 1-IN
AUDIO OUT
S-VIDEO
VIDEO
a
b
c
d
e
f
g
h
i
j
k
l
m
42PFL3704D
a VIDEO 1 S-VIDEO (back)
S-Video (back) input connector to be used with Audio L/R
connectors for camcorder, game console, etc. When you use the
S-Video (back) for video signals, do not use Composite video
(back) for video signals.
b digital audio output jack
Digital audio output to home theaters and other digital audio
systems.
c audio input jack
RCA audio cable connection for an external device.
d audio input jack for HDMI 1
e VIDEO 1 Composite video (back)
Video input for analog devices such as DVD, camcorder, game
console, etc. To be used with audio input.
f component video and audio input jack
Video input from analog devices such as DVD, receiver, game
console, etc. This connector is used with audio input.
g antenna input jack
Signal input from an antenna, cable or satellite.
h HDMI 1 input jack
Digital audio and video input from high defi nition digital devices
such as Blu-ray players.
i HDMI 3 input jack
Third HDMI in connector.
EN
