a TV ANTENNA
Signal input from an antenna, cable or
satellite.
b AUDIO OUT
Analog audio output to home theaters
and other audio systems.
c CVI 1 / CVI 2 ( Y Pb Pr and AUDIO L/R )
Analog audio and video input from analog
or digital devices such as DVD players or
game consoles.
TV ANTENNA
AUDIO
OUT
AUDIO
IN
7 Connect devices
This section describes how to connect
various devices with different connectors and
supplements examples provided in the Quick
Start.
Caution
Disconnect the mains cord before connecting •
devices.
Note
Different types of connectors may be used to •
connect a device to your TV, depending on
availability and your needs.

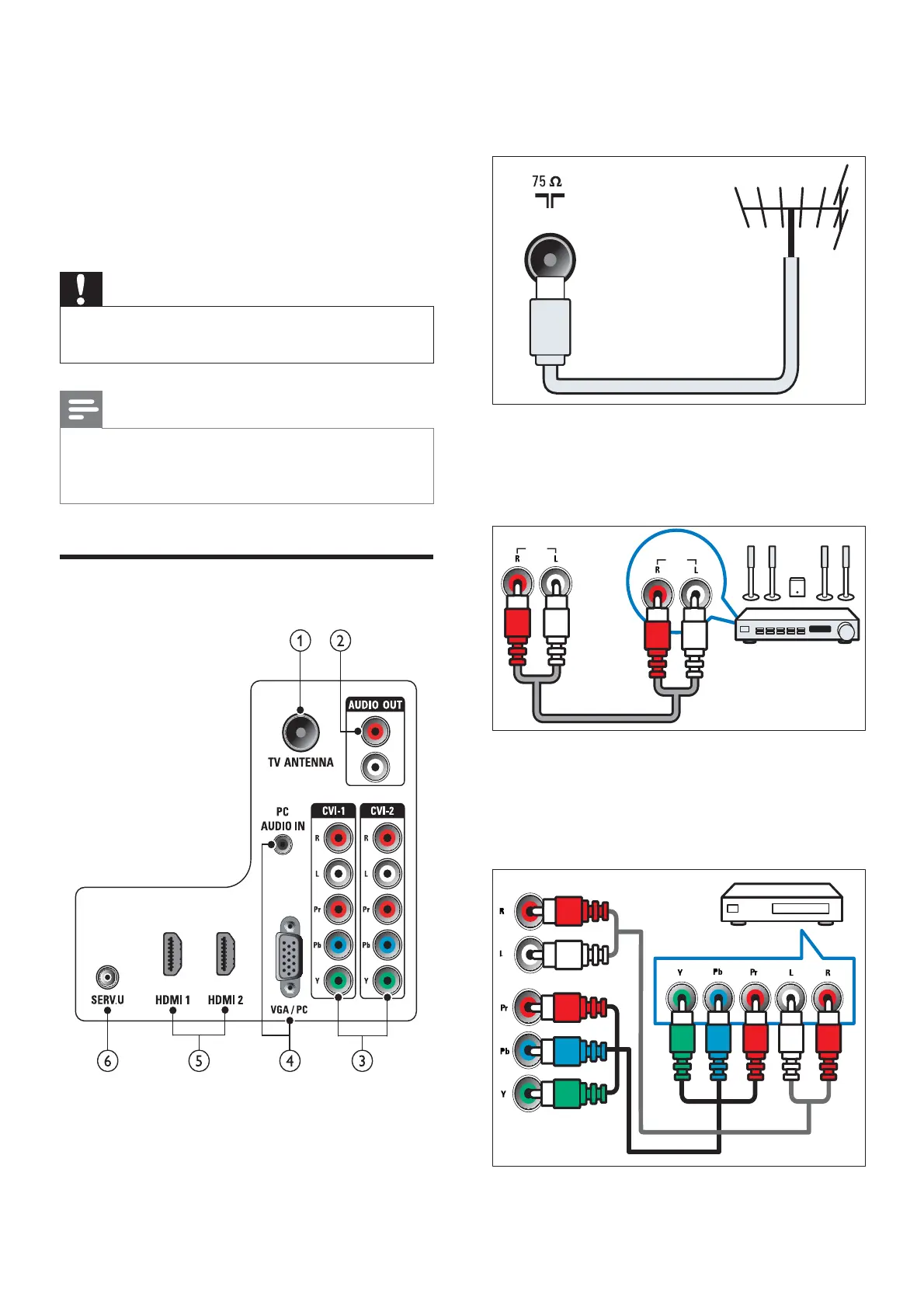

Back connector
EN
