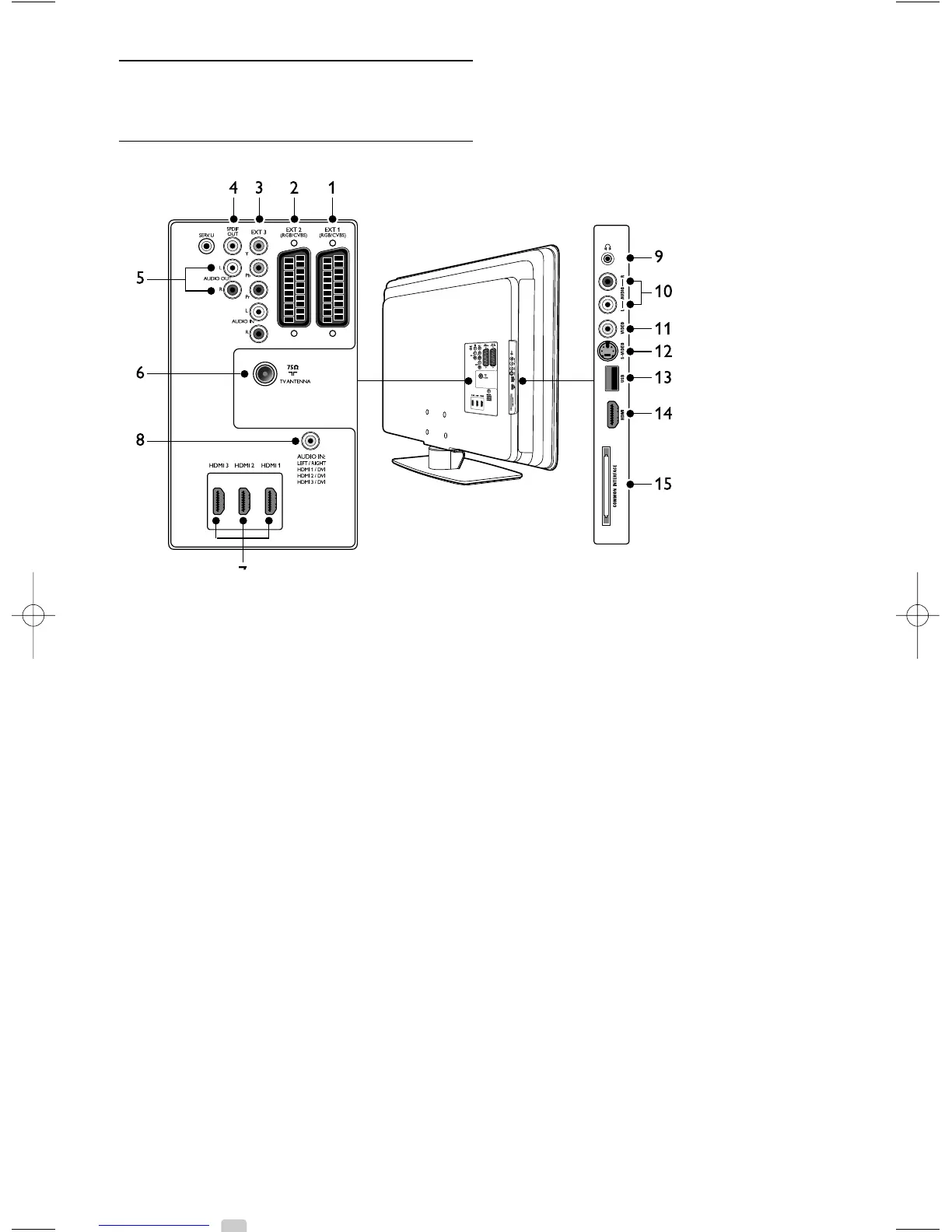

7.1 Connection overview
Back connectors
1 EXT 1
First SCART connector for DVD players,VCRs,
digital receivers, game consoles and other SCART
devices. Supports Audio L/R, CVBS in/out, RGB.
2 EXT 2
Second SCART connector. Supports Audio L/R,
CVBS in/out, RGB.
3 EXT 3
Component video (Y Pb Pr) and Audio L/R input
connectors for DVD players, digital receivers,
game consoles and other component video
devices.
4 SPDIF OUT
SPDIF sound output connector for home theatres
and other audio systems.
5 AUDIO OUT L/R
Sound output cinch connectors for home
theatres or other audio systems.
6 TV ANTENNA
7 HDMI 1/2/3
HDMI input connectors for Blu-ray Disc players,
digital receivers, game consoles and other high-
definition devices.
rNote
The number of HDMI connectors available may
vary according to your TV model.
8
AUDIO IN
Mini-jack connector for PC audio in (when
connecting a PC via a DVI-HDMI adaptor).
Side connectors
9 Headphones
Stereo mini-jack.
10 AUDIO L/R
Audio L/R input connectors for composite and
S-Video devices.
11 VIDEO
Video input cinch connector for composite
devices.
12 S-VIDEO
S-Video input connector for S-Video devices.
13 USB
USB connector for storage devices.
14 HDMI
Additional HDMI connector for mobile high-
definition devices.
15 COMMON INTERFACE
Slot for Conditional Access Modules.
Not currently supported by service providers in
Australia.
