Philips 32PFL7422/79 - Page 3

3
TPT1.1A LA
PIN
No.
SIGNAL b(PC)
1Red
2Green
3Blue
4NC
5GND
6RedGND
7GreenGND
8BlueGND
9 +5V (Supply from PC)
10 Sync GND
11 NC
12 SDA
13 H-sync
14 V-sync
15 SCL

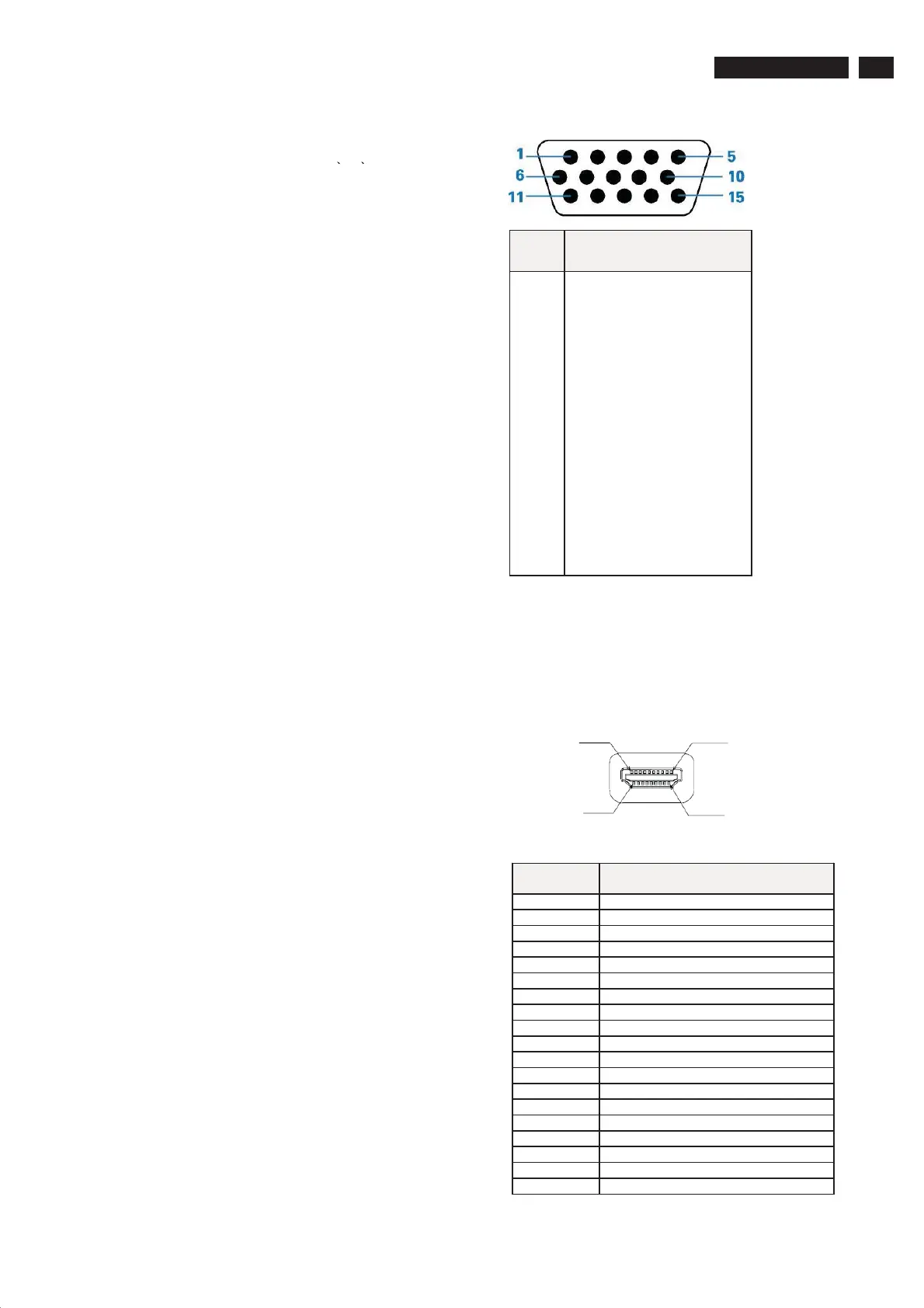

D-sub Pin assignment
1. Technical Specifications, Connections and Chassis Overview
No. 1
No. 2
No. 19
No. 18
Type A Connector
PIN
No.
SIGNAL
1 TMDS Data2+
2 TMDS Data2 shield
3 TDMS Data2-
4 TMDS Data1+
5 TMDS Data1 shield
6 TMDS Data1-
7 TMDS Data0+
8 TMDS Data0 shield
9 TMDS Data0-
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock-
13 CEC
14 Reserved (N.C. on device)
15 SCL
16 SDA
17 DDC/CEC Ground
18 +5V Power
19 Hot Plug Detect
S video input / 1VppY-signal, +/-300mV
C-signal
SCART input: CVBS
S SRGB
signal ( for WE model only)
Comp video in(YPbPr input)/ 1Vpp Y
signal, +/-350mV Pb,Pr signal
HDMI:Digital interface with 4 channels
TMDS signal
CVBS output ( RCA jack) / 1Vpp (
300mV-sync, 700mV-video.)
c. Audio signal : Audio (1) R/L for AV IN(AV and S-Video).
Level: - Nominal : 0.5 V rms.
- Maximum : 1.5 V rms.
- Impedance > 10 kW.
Audio (2) R/L for SCART IN
Level: - Nominal : 0.5 V rms.
- Maximum : 1.5 V rms.
- Impedance > 10 kW.
Audio (3) R/L for Comp video IN.
Level: - Nominal : 0.5 V rms.
- Maximum : 1.5 V rms.
- Impedance > 10 kW.
Audio (4) digital audio for HDMI Video IN.
d. PVR (CVBS) output:
Video: CVBS output 1Vpp / Impedance : 75W.
Audio: R/L output (from CVBS)
Level: - Nominal : 0.5 V rms.
- Maximum : 1.5 V rms.
- Impedance < 1 kW.
e. SCART output: ( for WE model only)
Video: CVBS output 1Vpp / Impedance : 75W.
Audio: R/L output (from CVBS)
Level: - Nominal : 0.5 V rms.
- Maximum : 1.5 V rms.
- Impedance < 1 kW.
f. SPDIF output: Serial digital audio output when input is HDMI.
g. Headphone
Audio: R/L output -10mW at 32W.
3.5mm stereo jack with switch
Impedance is between 8 and 600 W
PC input connectors
TV video input /output connectors
A. HDMI for digital Video / Audio interface with pin assignment
as follows:
