Philips 43BDL3650Q - Input;Output Terminals

43BDL3650Q/50BDL3650Q/55BDL3650Q
16

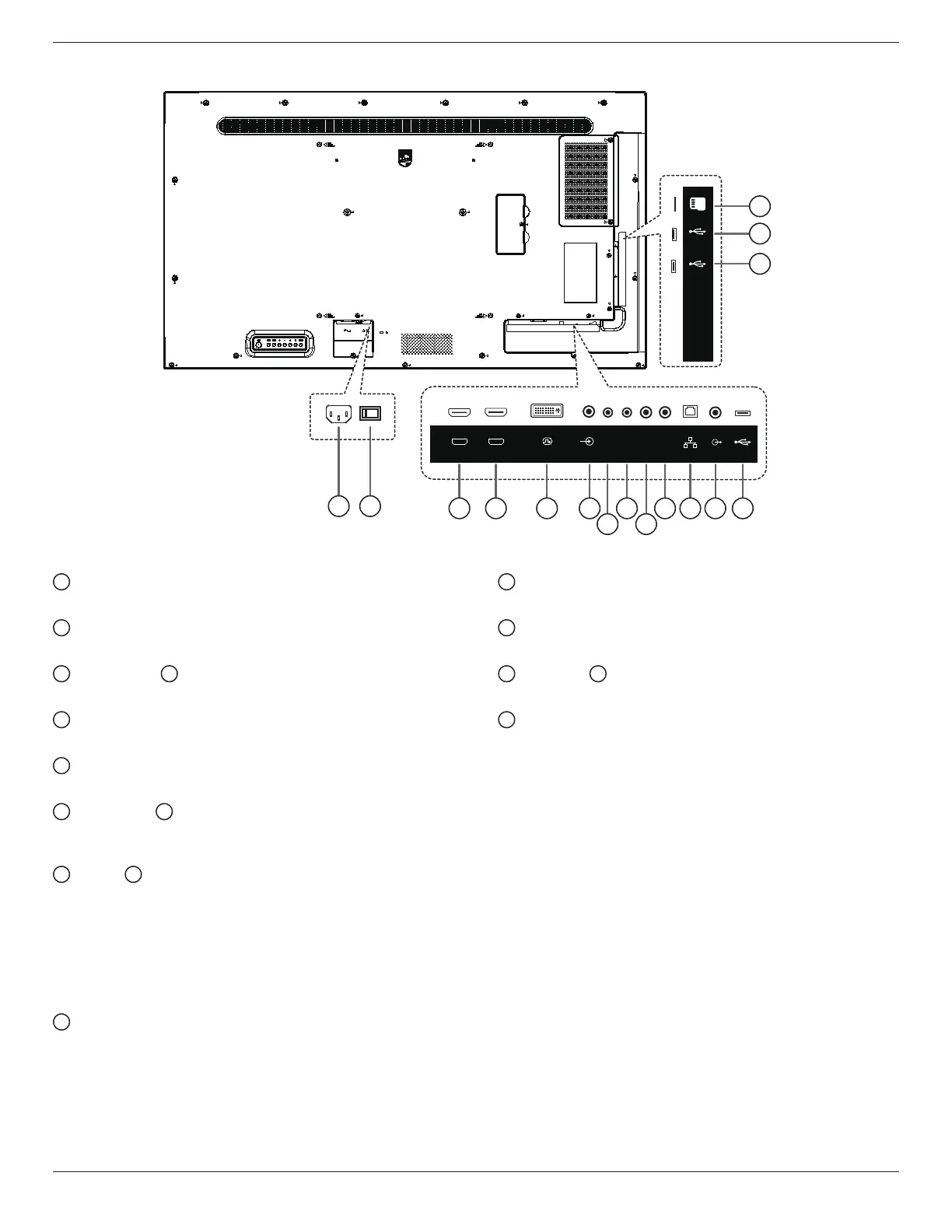

3.2. Input/Output Terminals
DVI-I IN
HDMI 2 INHDMI 1 IN
RS232
OUT
RS232
IN
IR-IN IR-OUT
PC LINE IN
AUDIO OUT
USB 3.0
RJ45
MICRO SD
USB2.0
USB2.0
EXPANSION
SLOT
2
3 4 5 6
7
8
9
10 11 12 13
1
16
15
14
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power between On and O.
3
HDMI1 IN /
4
HDMI2 IN
HDMI video/audio input.
5
DVI-I IN
DVI-I video input. VGA video input.
6
PC LINE IN
Audio input for VGA source (3.5mm stereo phone).
7
RS232 IN /
8
RS232 OUT
RS232 network input / output for the loop-through
function.
9
IR IN /
10
IR OUT
IR signal input / output for the loop-through function.
NOTES:
• This display’s remote control sensor will stop working
if the jack [IR IN] is connected.
• To remotely control your A/V device via this display,
refer to page 25 for IR Pass Through connection.
11
RJ-45
The LAN control function is used for sending the remote
control signal from the control center.
12
AUDIO OUT
Audio output to external AV device.
13
USB 3.0
Connect to a USB storage device.
14
USB 2.0 /
15
USB 2.0
Connect to a USB storage device.
16
Micro SD card slot
Insert a micro SD card.
