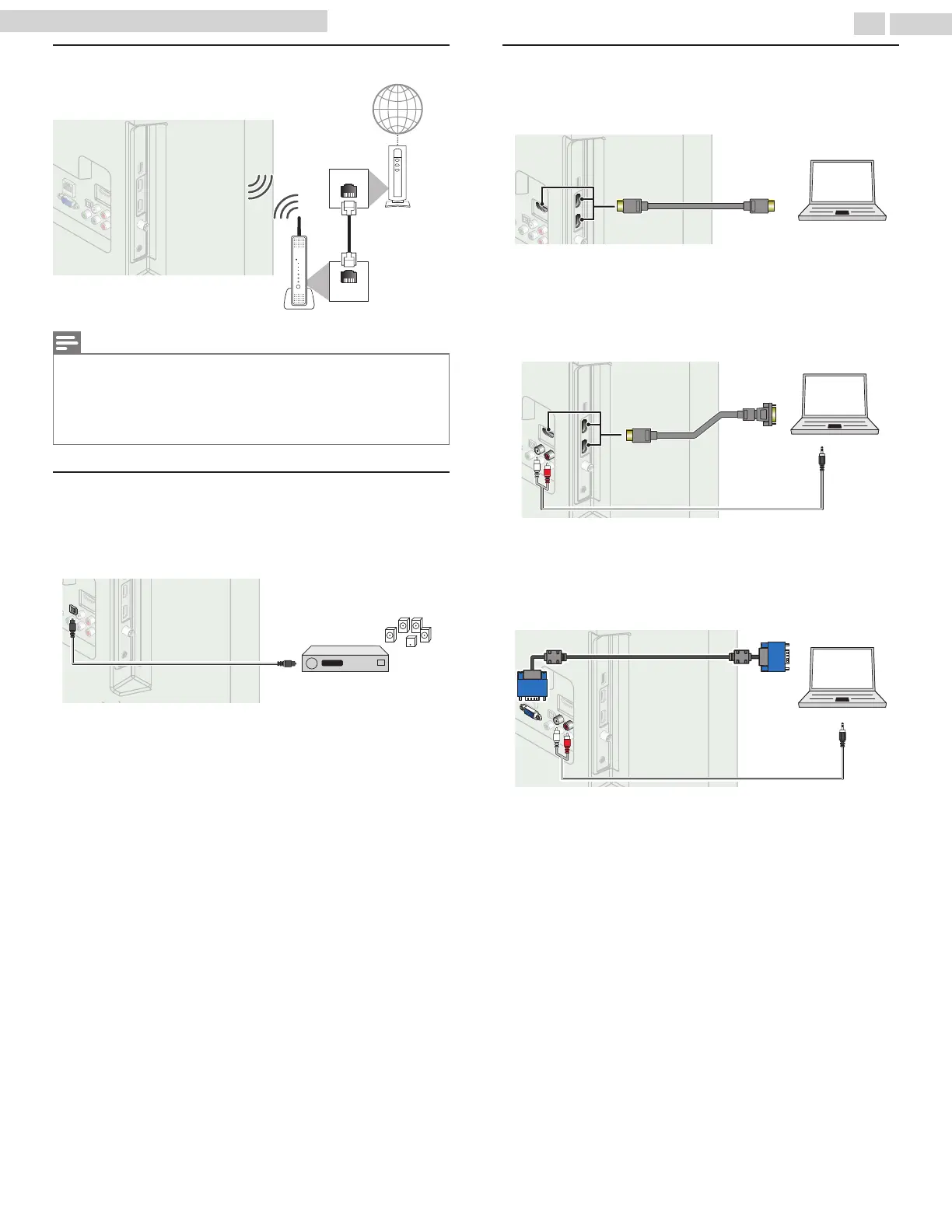

Connecting the TV to the internet using a wireless LAN
WLAN
LAN
Network provisioning
equipment
Ethernet cable
Broadband router
Broadband router
Broadband router
Internet
Note(s)
•
After you make the wireless connection, set up the necessary network settings. Connect to
network

p. 38
•
Use a wireless LAN Access Point (AP) (e.g. broadband wireless router) which supports
IEEE 802.1 1 a/b/g/n/ac. (n is recommended for stable operation of the wireless network.)
•
This unit does not support Ad-hoc mode.
•
Other radio devices or obstacles may cause interference to the wireless network connection.
Digital audio output connection
If you connect this unit to an external digital audio device, you can enjoy
multi-channel audio like 5.1ch digital broadcasting sound.
Use a digital audio optical cable to connect the unit to external digital
audio devices.
Digital Home
Theater Amplier
OUT
OUT
ININ
Digital Audio
Optical cable
Digital Audio
Optical cable
Digital Audio
Optical cable
PC connection
HDMI connection
This unit can be connected to your PC that has an HDMI terminal. Use an
HDMI cable for this digital connection.
PC
HDMI cable
HDMI cable
HDMI cable
OUT
IN
IN
HDMI-DVI connection
This unit can be connected to your PC that has a DVI terminal.
Use an HDMI-DVI conversion cable for this video digital connection and
it requires stereo mini 3.5mm plug audio cable for analog audio signal as
well.
IN
IN
OUT
OUT
PC
Stereo Mini 3.5 mm
Plug Audio cable
Stereo Mini 3.5 mm
Plug Audio cable
Stereo Mini 3.5 mm
Plug Audio cable
HDMI-DVI
conversion
cable
HDMI-DVI
conversion
cable
HDMI-DVI
conversion
cable
IN
IN
VGA connection
This unit is equipped with a PC input jack. If you connect this unit to your
PC, you can use this unit as a PC monitor.
Use a VGA cable for this video connection and it requires a stereo mini 3.
5mm plug audio cable for analog audio signal as well.
OUT
IN
IN
OUT
PC
VGA cable
VGA cable
VGA cable
Stereo Mini 3.5 mm Plug
Audio cable
Stereo Mini 3.5 mm Plug
Audio cable
Stereo Mini 3.5 mm Plug
Audio cable
IN
IN
15 .English
Continued on next page.
