6.4 Front-End Analogue and DVB-T, DVB-C; reception
6.4.1 DVB-C part
The Front-End for analogue tuner consist of the following key components:
• TUNER EUROPE SUT-RE231ZN
• SCALER MT5596LGIJ HSBGA-757 Processor
• SCALER MST7484GC BGA-420 Processor

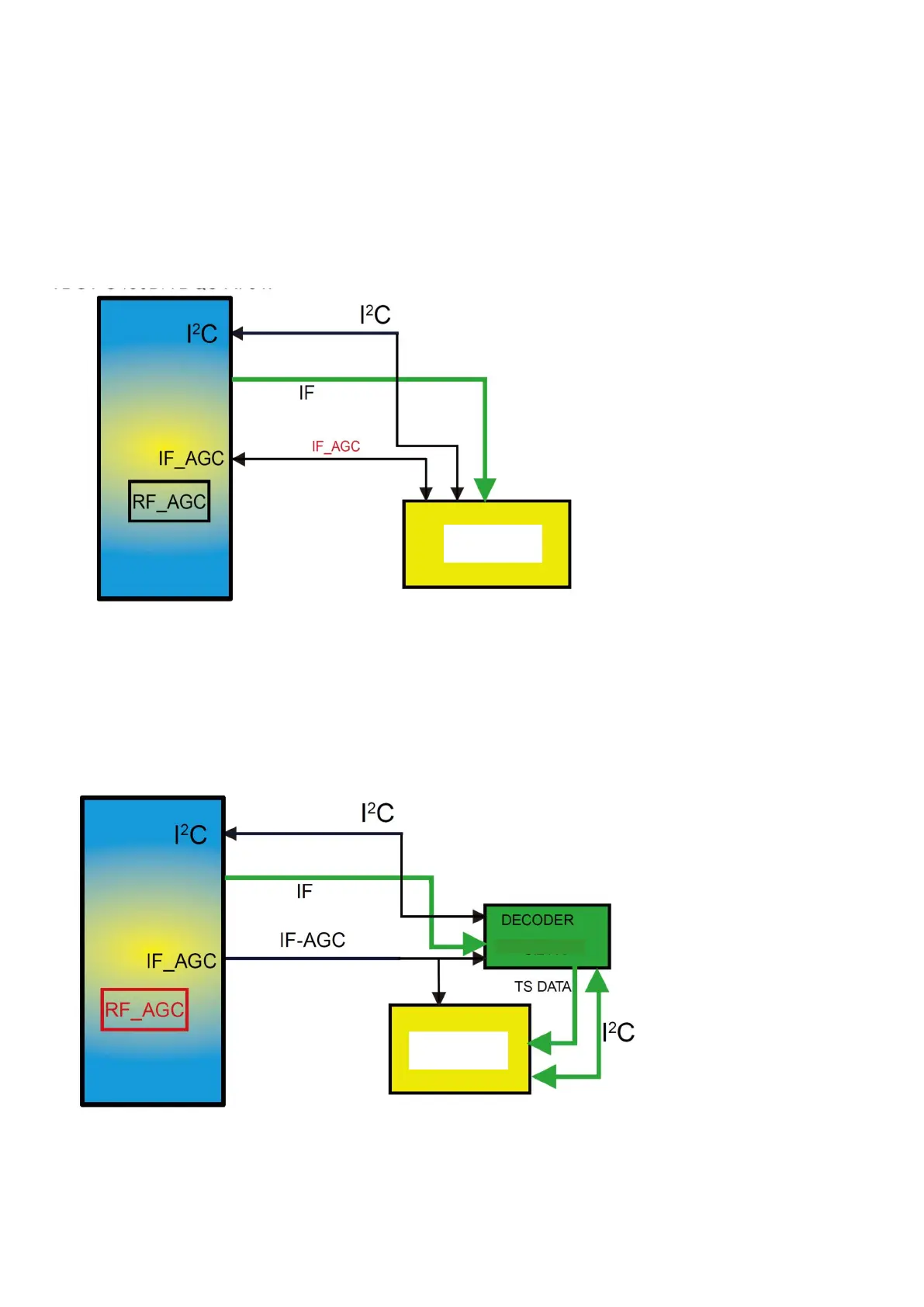

Below find a block diagram of the front-end application for DVB-C part.
SUT-RE231ZN
6.4.2 DTB-T2 part
The Front-End for DVT part consist of the following key components:
• TUNER EUROPE SUT-RE231ZN
• SCALER MT5596LGIJ HSBGA-757 Processor
• DEMODULATOR CXD2837ER-T4 VQFN 48
Below find a block diagram of the front-end application for DTV part.
SUT-RE231ZN
MTK559
6
L
MTK559
6
L
CXD2837ER-
T4
