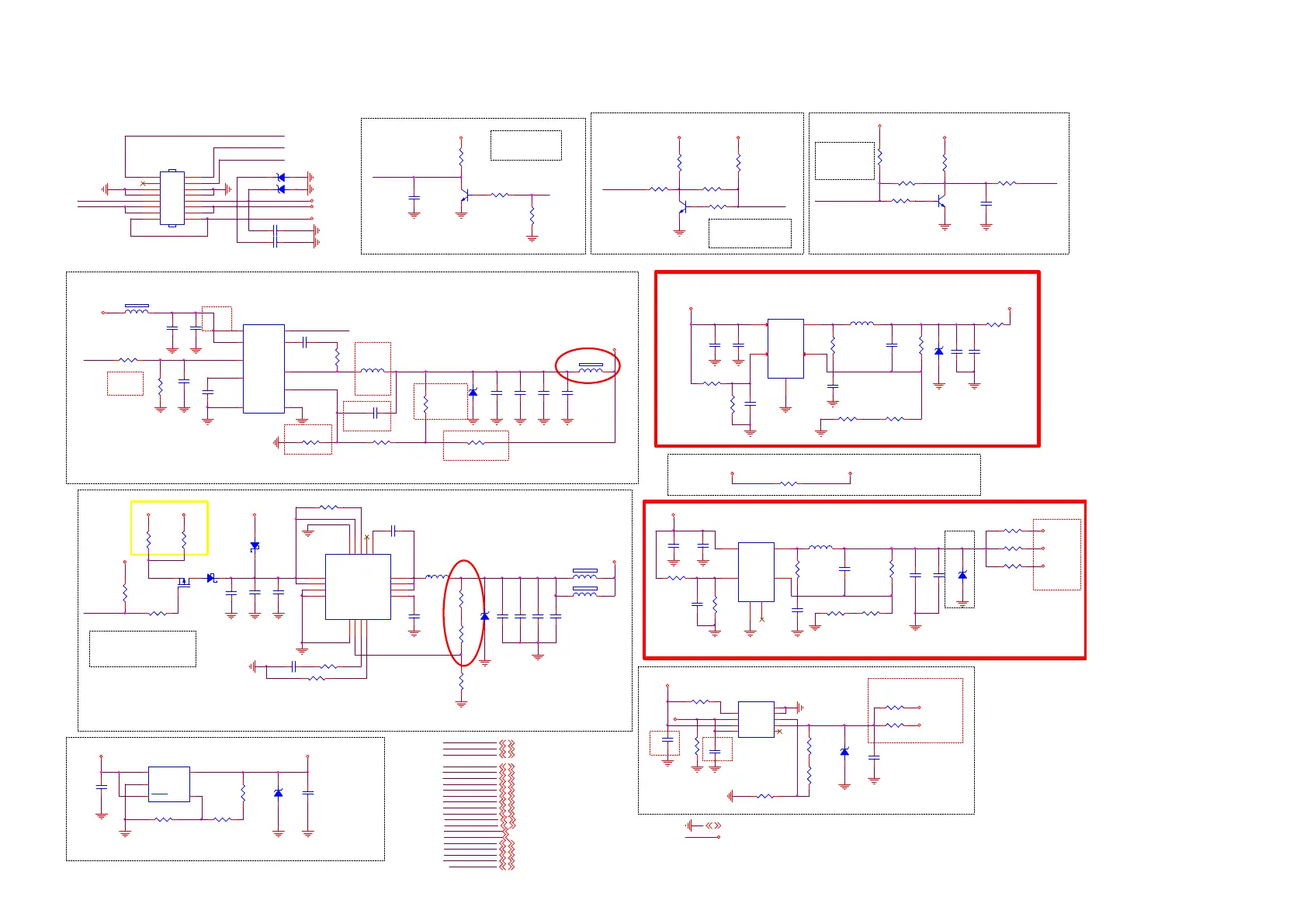

8-4-2 System Power 2
U702 G5719TBIU
VIN
4
EN
1
LX
3
VFB
6
GND
2
NC
5
C705
10UF 16V
C721
NC/10UF 10V
R739
100K 1/16W 5%
Vout=0.6 x (1+100000/22000)= 3.32 V
R752
3K3 1/16W 5%
R772 0R05 1/10W
C727
100N 16V
C738
NC/100N 16V
+5V_SW
R756
20K 1%
R757
1K5 1%
AU_18V
R758
100K 1%
C739
NC/10NF 50V
R759
NC/100OHM
C728
NC/22P 50V
1000 mA
L707 2.2uH
ZD712
NC /MMSZ4678
1 2
R711
NC/0R05 1/16W
+5V_SW 3,9,12,13,15,18,20,27
+5V_SW
C797
2.2UF 10V
L710 2.2uH
U710 G5725ADJT11U
VIN
4
EN
1
LX
3
VFB
5
GND
2
R773
2Kohm 1/16W +/-1%
C799
10uF 16V
C790
NC/10UF 10V
FB711
120R 3A
1 2
AVDD1V0_STB
R761
NC/100K1/16W
Vout=0.6 x (1+20000/26000)= 1.06 V
R762
3K3 1/16W 5%
CN 701
CONN
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
C798
100N 16V
R1
C792
NC/100N 16V
STB_PWR
R716
0R051/8W
R702
20K 1%
C793
NC/10NF 50V
STB_PWR
R775
NC/100OHM
C794
NC/22P 50V
R704
24K 1%
R745 100K 1/16W 5%
U709
G9141T11U
IN
1
GND
2
SHDN
3
SET
4
OUT
5
C744
10UF 6.3V 20%
Q710
MMBT3904
DVDD3V3
C743
1uF 10V
R7002
10K +-1% 1/16W
R7001
1K 1/16W 1%
Vout=1.0(1+R1/R2)_SPEC 600mA
AVDD1V2
R7003
1K 1/16W 1%
(1A/60mil)
R717
0R051/8W
R767
4.7K1/16W
Sony reque st
AVDD3V3
ZD703
NC /BZT52-B3V6
1 2
DDR_PWR _EN 17
VCC3.3V_FRC
R769
4.7K1/16W
DIGITAL POWER
DVDD3V3/AVDD3V3
DD R_PWR_EN
DDRV 7,8
DDRV
C704
NC/10uF 6.3V
R715
47K 1/16W 5%
R709
20K 1/16W 5%
3V3SB
OPWRSB_PW R
BL_DIG_DIM
MAX=1.6A
R2
3.0A(Spec.)
DDR_PWR_EN
FB enable(power off):low
FB disable(power on):high
Vout=0.827 x (1+27K/33K) = 1.5V)
DRAM Power
C733
10UF
BL_ON/POK
C723
10UF 10V
C734
10UF
L701
1.5uH
FB701 120R 3A
1 2
Q701
AO3401A
R747
10K 1/10W 5%
D701
FB340M
12
C722
100N 16V
TYP = 300mA
+5V_SW
3V3SB
DDRV
OPWRSB
AU_18V
PGOOD
VCCK
Main_18V
R8072
36K 1%
R8071
24K 1%
8A DC/DC
Vout=0.6x (1+16K/24K) = 1.0V for VCCK
R8073
10R 1/10W 5%
PGOOD
Normal:open drain by pull-up vlotage timing
Abnormal:low
R8074 1R 1%
C746
10UF 25V
Vout = 0.6V (1+( R1/R2
⊙
))
Big plane
R743
2.2R 1%
SY8368QNC: Max:8A
Vin 4V~25V
PWR_EN
R8075 51K 1/16W 5%
C760
22uF 6.3V
Big plane
C758
22uF 6.3V
R1
+18V
FB705
120R 6A
R2
R701
33K 1/16W 1%
L703
0.68uH
U706
SY8368QNC
FB
4
GND
9
BS
6
IN
8
LX
10
EN
1
IN
7
PG
2
ILMT
3
LDO
5
C749
100N 50V
C750
220P 50V
R8076
10K
FB707
0R05
C748
4.7UF 6.3V
Big plane
C759
22uF 6.3V
C757
22uF 6.3V
C745
10UF 25V
C735
10UF
R706
10K 1/16W 5%
DVDD3V3 DVDD3V3
BRIGHT_ADJ
R714
4.7K1/16W
R705
4.7K1/16W
Q703
MMBT3904
R754
7K5 1/10W 5%
C740
3.3NF 50V
R755 180K 1%
+5V_STB 3,9,12
PGOOD
+5V_STB
R765
NC/0R05 1/16W
IN VERTER_ON_OFF
R764
10KOHM
C706
10uF 16V
OPWRSB_PWR
C736
10UF
R760
0R051/8W
OPWRSB 6
OPWRSB
R8077
0R05
U705
RT8079ZQW
VIN
1
VIN
2
GND
3
GND
4
AGND
5
FB
6
COMP
7
RT/SYNC
8
SS/TR
9
SW
10
SW
11
SW
12
BOOT
13
PGOOD
14
EN
15
VIN
16
GND
17
C719
100N 16V
ZD710
NC/BZT52H-C2V7
1 2
R707
0R05
C796
NC/10uF 6.3V
VCC1.8V_FR C
VCC1.8V_FR C 21,23
VCC 1.8V_FRC
STB_PWR
STB_PWR 3, 16
R749
24K 1%
R753
2.4K 1%
ZD705
NC/M MSZ4678
1 2
C715
10UF
R728
2K 1%
eMMC 1V8
DVDD3V3
(1A/60mil)
U704
G9661
POK
1
VEN
2
VIN
3
VPP
4
NC
5
VO
6
ADJ
7
GND
8
E-Pad
9
R724 10KOHM
+5V_SW
R726
0R05
STB_PWR
R770
4.7K1/16W
3V3SB
DVDD3V3
BL_ON/POK
DDR_PWR_EN
+5V_STB
Q711
MMBT3904
R768
4.7K1/16W
R708
0R05 1/10W
R710
NC/0R05 1/10W
C712
10UF
D702
FB340M
1 2
C718
1uF 10V
R2
R1
2.0A(Spec.)
AVDD1V2 9
C707 100N 16V
C708 100N 16V
M odify by EM I
MAIN POWER
VCC3.3V_FR C 21,22,24
VCC 3.3V_FRC
R766
100R 1/16W 5%
PGOOD 3
R735
1.65K 1%
+5V_STB=STB_PWR , R710 add 0R
2016-09-22
C747
NC /100NF 25V
GND 3,6, 7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,26,27
R771
100R 1/10W 5%
R712
100R 1/10W 5%
ZD711
NC/MMSZ4678
1 2
ZD708
NC/BZT52-B22
12
ZD707
NC/BZT52-B22
12
AU_18V
BRIGHT _ADJ:
Normal:Max:+3V3, Min:0V
Stand_By:0V
BL_DIG_DIM
Main_18V
0.8 x (1+ 2.1K/1.65K) = 1.8V
AVDD1V0_STB AVDD1V0_1
R713 0R05
AVDD1V0_1 3,11,12,18
AVDD1V0_1
C726 10N 50V
AVDD1V0_STB 6,12,18
AVDD1V0_STB
C765
10UF 10V
BL_ON/OFF:
Inverter on: Low
Inverter off: High
Main_18V
ZD701
NC/BZT52H-C2V7
1 2
+18V
DVDD3V3
OPWRSB_PWR
BRIGHT_ADJ
OPWRSB_PWR 3,18,27
LDO_PWR
AVDD1V2
IN VERTER_ON_OFF
DVDD3V3 3,6,7,9,10,12,13,14,15,17,19,27
INVERTER_ON_OFF 17
BRIGHT_ADJ 17
AVDD3V3 9,11,12,18
3V3SB 3,6,9,10,12,16,17,18,27
VCCK 3,6,7,19
+18V 3,24,27
OPWRSB:
Normal: Low
Stand_by: Hi
AVDD3V3
VCCK
3V3SB
DVDD3V3
18Vto12V 3, 24
18Vto12V
Vout = 0.6V (1+( 24/36
⊙
))=1.0V
AU_18V
ANALOG POWER AVDD1V05_STB
