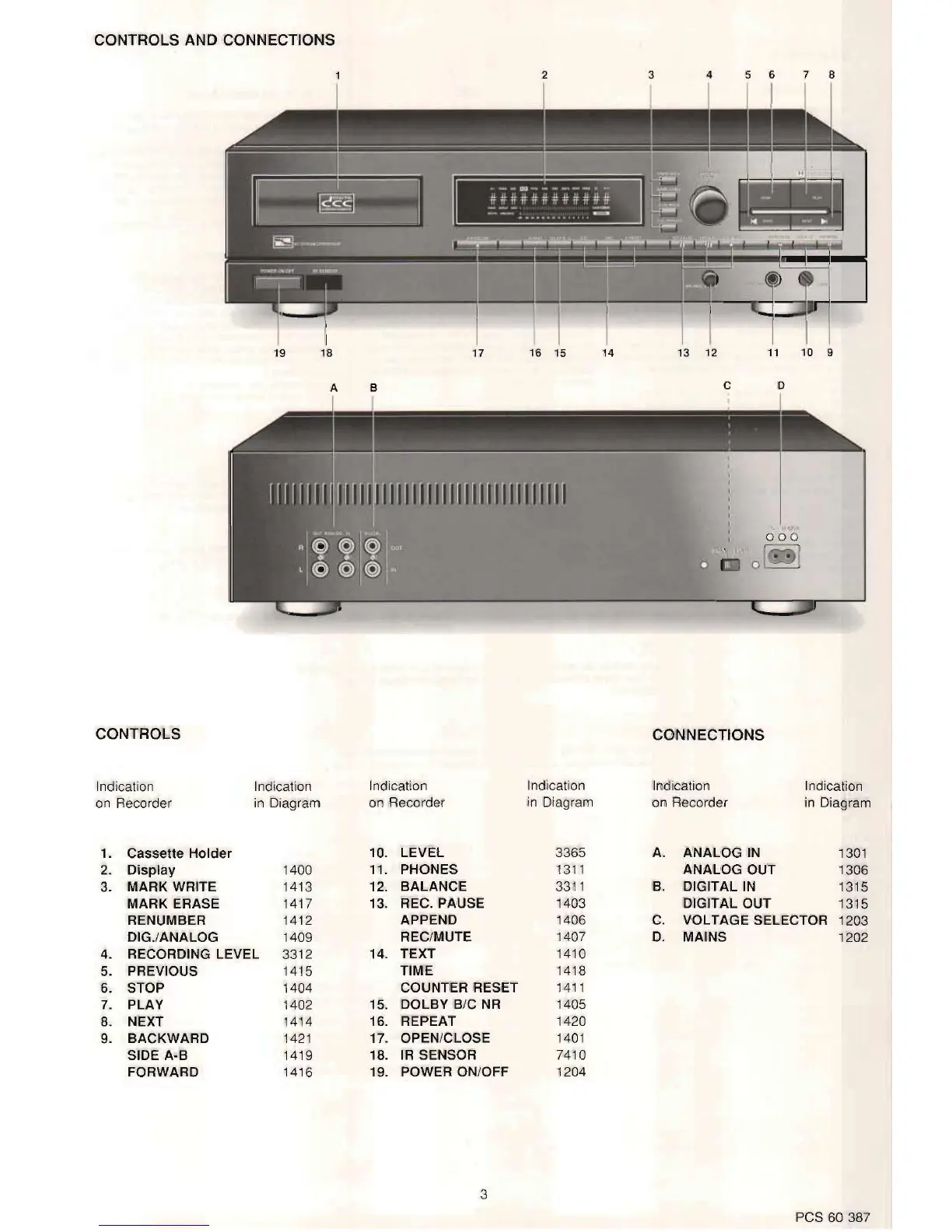

CONTROLS AND CONNECTIONS
2
3
4 5 6 7 8
19
18
A B
17
16 15 14 13 12
c
11 10 9
o
"", 1-1\1>1;\
000
'org
CONTROLS
CONNECTIONS
Indication Indication
Indication
Indication
Indication
Indication
on Recorder
in Diagram
on Recorder in Diagram on Recorder in Diagram
1. Cassette Holder
10. LEVEL 3365 A. ANALOG IN
1301
2.
Display 1400
11.
PHONES 1311 ANALOG OUT
1306
3. MARK WRITE 1413
12.
BALANCE 3311 B.
DIGITAL
IN
1315
MARK ERASE 1417
13.
REC.PAUSE 1403 DIGITAL OUT
1315
RENUMBER 1412
APPEND 1406 C.
VOLTAGE SELECTOR
1203
DIG.lANALOG 1409
REC/MUTE 1407 D. MAINS
1202
4.
RECORDING LEVEL
3312
14.
TEXT 1410
5.
PREVIOUS 1415
TIME 1418
6. STOP 1404
COUNTER RESET 1411
7.
PLAY
1402
15.
DOLBY B/C NR 1405
8.
NEXT 1414
16. REPEAT 1420
9.
BACKWARD 1421 17.
OPEN/CLOSE 1401
SIDE A-B 1419
18. IR SENSOR 7410
FORWARD 1416
19.
POWER ON/OFF 1204
3
pes 60 387
