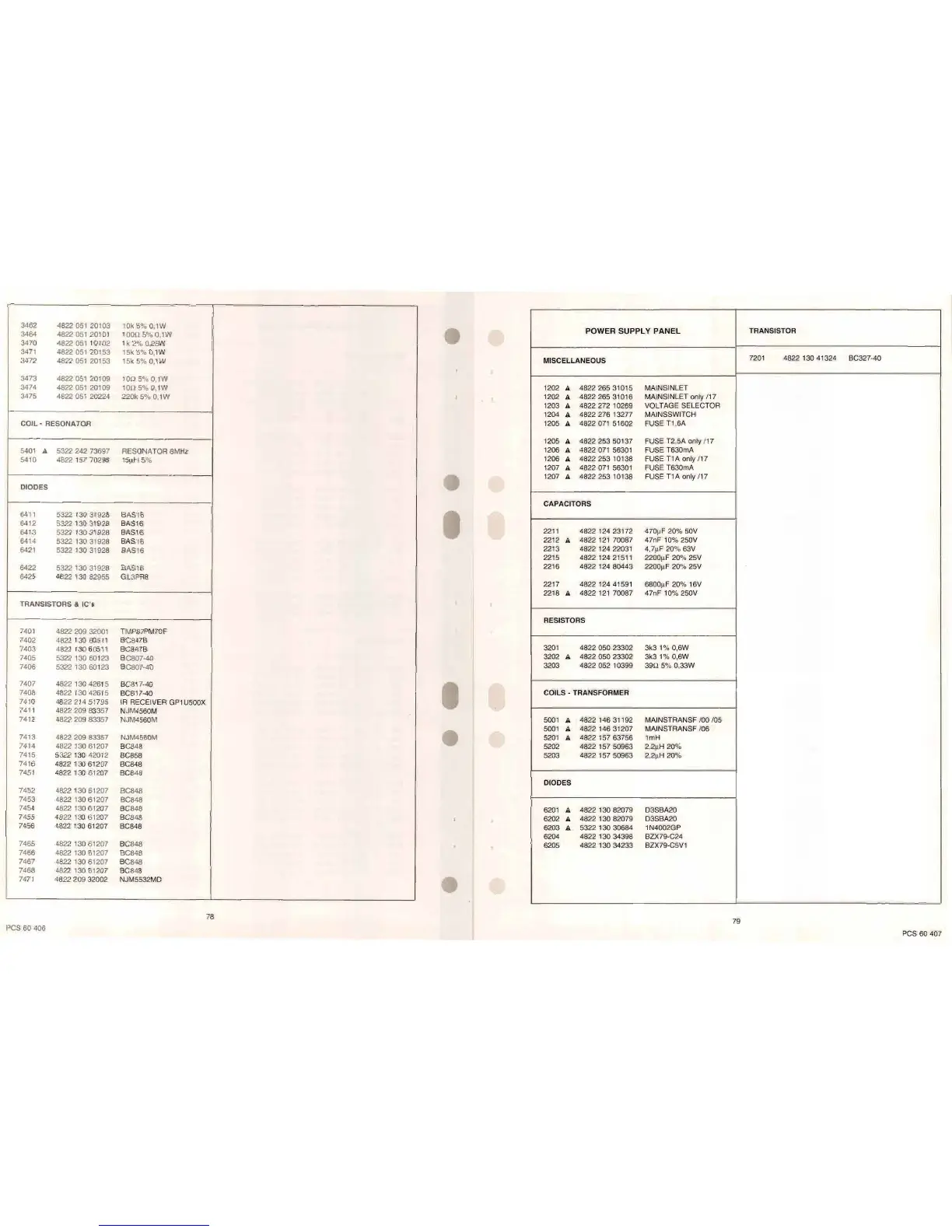

Philips 70DCC600 - Page 45

3462
4822051 20103
10k 5%
O,lW
3464
4822
051 20101
100n 5% O,lW
3470
4822051 10102
lk 2% O,25W
3471
4822051 20153
15k 5%
O,lW
3472
4822051 20153
15k 5%
O,lW
3473
4822051 20109
10n 5% O,lW
3474
4822051 20109
10n 5% O,lW
3475
4822051 20224
220k 5%
O,lW
COIL· RESONATOR
5401 A
5322 242 73697
RESONATOR 8MHz
5410
4822 157 70298
15J.!H 5%
DIODES
6411
5322 130 31928
BAS16
6412
532213031928 BAS16
6413
5322 130 31928
BAS16
6414
5322 130 31928
BAS16
6421
532213031928 BAS16
6422
532213031928
BAS16
6425
4822 130 82955
GL3PR8
TRANSISTORS
& IC's
7401
4822 209 32001
TMP87PM70F
7402
4822 130 60511
BC847B
7403
4822 130 60511
BC847B
7405
5322 130 60123
BC807-40
7406
5322 130 60123
BC807-40
7407
482213042615
BC817-40
7408
482213042615
BC817-40
7410
482221451795
IR RECEIVER GPl U500X
7411
4822 209 83357
NJM4560M
7412
4822 209 83357
NJM4560M
7413
4822 209 83357
NJM4560M
7414
482213061207
BC848
7415
532213042012
BC858
7416
4822 130 61207
BC848
7451
4822 130 61207
BC848
7452
482213061207
BC848
7453
482213061207
BC848
7454
482213061207
BC848
7455
4822 130 61207
BC848
7456
4822 130 61207 BC848
7465
482213061207
BC848
7466
482213061207
BC848
7467
482213061207
BC848
7468
482213061207
BC848
7471
4822 209 32002
NJM5532MD
POWER SUPPLY PANEL
TRANSISTOR
MISCELLANEOUS
7201
482213041324 BC327-40
1202
A
4822 265 31015 MAINSINLET
1202
A 4822 265 31016 MAINSINLET only /17
1203
A 4822 272 10269 VOLTAGE SELECTOR
1204
A
4822 276 13277 MAINSSWITCH
1205
A 4822071 51602
FUSE
Tl,6A
1205 A 4822 253 50137 FUSE T2,5A only /17
1206
A
4822 071 56301 FUSE T630mA
1206
A
482225310138 FUSE Tl A only /17
1207
A
4822 071 56301 FUSE T630mA
1207
A 4822 253 10138 FUSE Tl A only /17
CAPACITORS
2211 4822 124 23172 470J.!F 20% 50V
2212
A
4822 121 70087 47nF 10% 250V
2213 4822 12422031
4,7J.!F 20% 63V
2215
482212421511
2200J.!F 20% 25V
2216 4822 124 80443
2200J.!F 20% 25V
2217
482212441591
6800J.!F 20% 16V
2218
A
4822 121 70087 47nF 10% 250V
RESISTORS
3201 4822 050 23302 3k3 1% 0,6W
3202
A
4822 050 23302 3k31% 0,6W
3203 4822 052 10399
39n 5% O,33W
COILS - TRANSFORMER
5001
A
482214631192 MAINSTRANSF 100 /05
5001 A 482214631207 MAINSTRANSF /06
5201
A
4822 157 63756 lmH
5202 4822 157 50963 2,2J.!H 20%
5203 4822 157 50963
2,2J.!H 20%
DIODES
6201
A
4822 130 82079 D3SBA20
6202
A 4822 130 82079 D3SBA20
6203
A
5322 130 30684
1N4002GP
6204 4822 130 34398 BZX79-C24
6205 4822 130 34233 BZX79-C5V1
PCS 60 406
78
79
PCS 60 407
