Philips AS660C/41 - Page 17

3-3

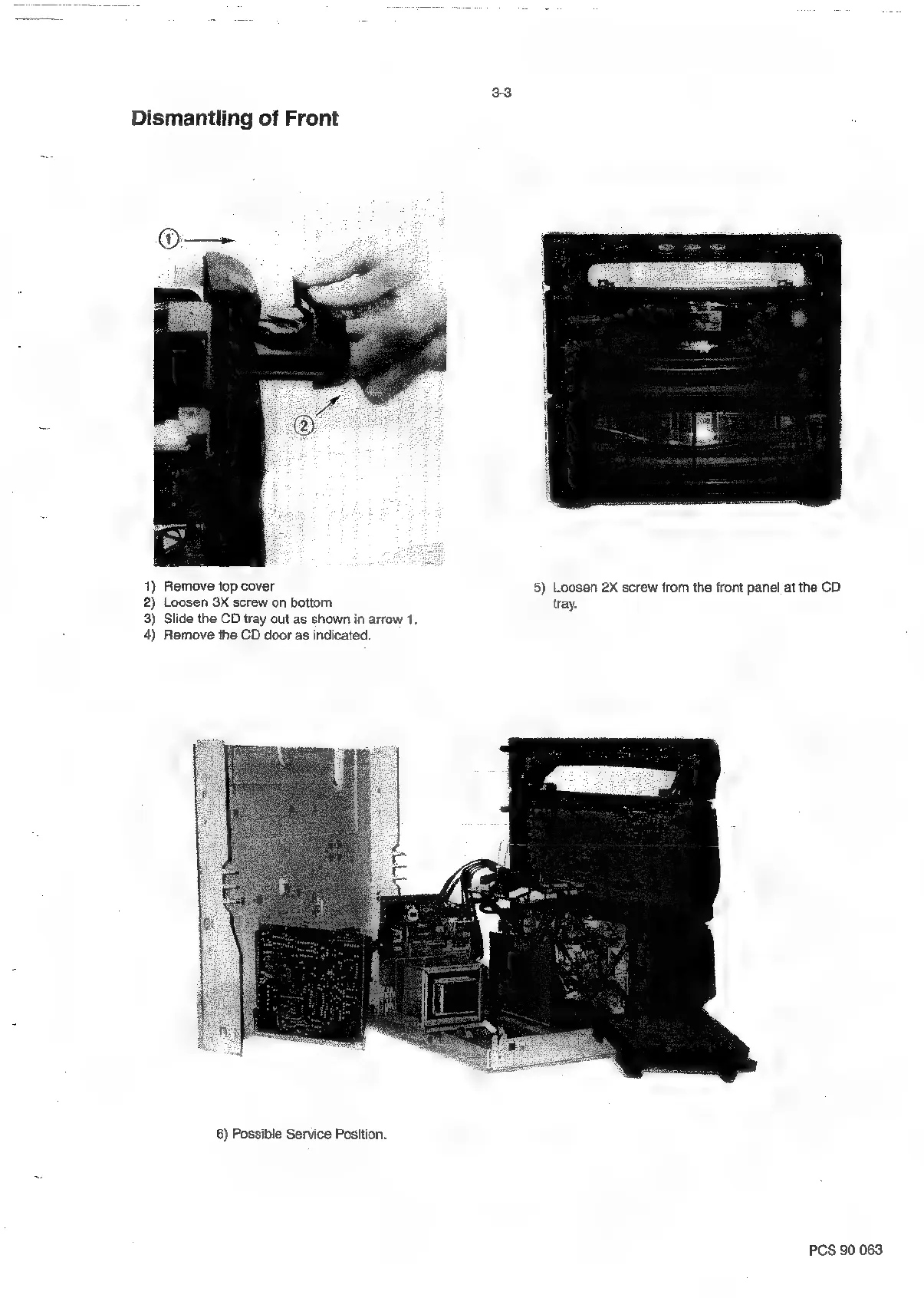

Dismantling of Front
5) Loosen 2X screw from the front panel at the CD
1) Remove top cover
tray.
2) Loosen 3X screw on bottom
3) Slide the CD tray out as shown in arrow 1.
4) Remove the CD door as indicated.
6) Possible Service Position.
PCS 90 063
